- Motorola MVME55006E-0163R | ECC Memory Embedded Unit
2. Unboxing & Physical Snapshot

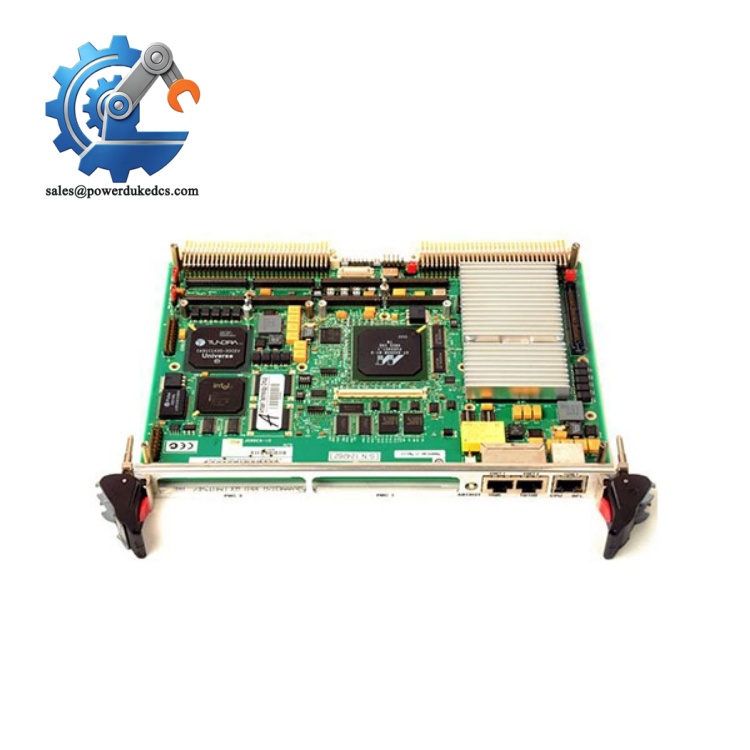

- Model & Brand: Motorola MVME55006E-0163R 6U VMEbus Single Board Computer. This configuration uses an MPC7457 PowerPC processor at 1 GHz, 512 MB ECC SDRAM, onboard Flash memory, dual PCI buses, PMC expansion capability, and Gigabit Ethernet connectivity. ([turn0search1])
- Approximate Physical Dimensions (W × H × D): Approximately 233 × 160 × 25 mm (9.2 × 6.3 × 1.0 in.) for the 6U VME form factor. ([turn0search3])
- Estimated Shipping Weight: Approximately 1.2–1.5 kg (2.6–3.3 lb) including ESD protection, front panel protection, and transport packaging.
- What’s in the Box:
- Motorola MVME55006E-0163R VME single board computer
- Front panel assembly
- Anti-static (ESD) shielding bag
- Protective foam insert
- Installed Flash firmware components
- Identification label and traceability documentation
3. Product Introduction
The Motorola MVME55006E-0163R installs into a 6U VMEbus chassis, where the P1/P2 connectors establish communication with the VME backplane. Slot assignment, chassis controller configuration, and airflow management must be verified before installation. Insert the board using the extraction handles only. Never apply force directly to the PCB or front panel because connector damage can occur.
This embedded computer module was designed for long-life industrial computing systems requiring PowerPC processing, high-speed communication, and VME compatibility. The architecture combines a 1 GHz MPC7457 processor, ECC SDRAM, PCI expansion resources, PMC sites, Ethernet interfaces, and Flash storage (which is important when maintaining legacy control platforms that remain in service for many years). ([turn0search1][turn0search3]) Inspect the edge connectors, PMC slots, retaining screws, and memory configuration before returning stored inventory to operation.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Motorola |
| Model Number | MVME55006E-0163R |
| Product Type | 6U VMEbus Single Board Computer |
| Processor | MPC7457 PowerPC |
| Processor Frequency | 1 GHz |
| L2 Cache | 256 KB on-chip |
| L3 Cache | 2 MB |
| Main Memory | 512 MB ECC SDRAM |
| Flash Memory | Dual-bank Flash (32 MB + 8 MB configurations) |
| VME Interface | VME64 / Universe II interface |
| PCI Architecture | Dual independent 64-bit PCI buses |
| PMC Expansion | Two PMC sites |
| Ethernet Interface | Gigabit Ethernet + 10/100 Ethernet |
| Serial Interface | Dual serial communication ports |
| USB Interface | USB support depending on configuration |
| Expansion Connector | 64-bit PCI expansion mezzanine connector |
| Power Input | +5 VDC and ±12 VDC rails |
| Typical Power Consumption | Approximately 25 W class |
| Cooling Method | Forced-air VME chassis cooling |
| Operating Temperature | Approximately 0°C to +55°C |
| Storage Temperature | Approximately -40°C to +85°C |
Motorola MVME55006E-0163R
([turn0search1][turn0search3][turn0search7])
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the Motorola MVME55006E-0163R include:
- CE Mark compliance when installed within a qualified equipment assembly
- UL/cUL recognition where applicable to the complete VME system
- FCC Class A industrial computing emissions considerations
- IEEE 1014 VMEbus compatibility
- VME64 interface compatibility
- RoHS compliance depending on manufacturing revision
- ATEX/IECEx suitability only when integrated into an approved hazardous-area enclosure
- Marine approvals such as DNV GL only for specifically certified applications
CE and EMC compliance depend on the complete installation. The chassis shielding, power supply filtering, grounding arrangement, and cable routing all influence final system certification.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the MVME55006E-0163R inside its original anti-static (ESD) shielding bag. Protect the VME edge connectors and PMC expansion contacts from oxidation, dust, and unnecessary handling.
Inspect the Flash memory, board-mounted components, and battery-backed areas before installation. Long-storage electronic assemblies should be checked for capacitor aging, contamination, and mechanical stress around connectors.
Maintain warehouse humidity below 60% RH and avoid rapid temperature changes. Record the serial number, board revision, firmware version, and memory configuration in the asset database before placing the unit into operational stock.
7. Physical Installation Prerequisites
- Install only in a compatible 6U VMEbus chassis.
- Verify VME64 backplane compatibility before insertion.
- Confirm slot configuration and system controller settings.
- Use extraction handles and card guides correctly.
- Maintain forced-air cooling through the chassis airflow system.
- Leave approximately 50 mm clearance around airflow intake and exhaust paths where practical.
- Verify protective earth grounding of the chassis.
- Inspect connector fingers and PMC interfaces before energizing.
- Confirm installed software image compatibility before commissioning.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Motorola MVME55006E-0163R?
A: VME single-board computers are commonly evaluated under HS classifications covering electronic computer assemblies, often within HS 8471 categories. Some customs authorities may evaluate industrial control applications differently, so the final classification should be confirmed with the importing party’s customs broker. ([turn0search7])
Q: Does Country of Origin affect importing this Motorola VME controller?
A: Yes. COO affects customs documentation, supplier qualification, warranty records, and asset traceability. Verify origin details from the product label, commercial invoice, and supplier records before shipment.
Q: Should shipping insurance be included for the MVME55006E-0163R?
A: Recommended. The board contains high-value processor electronics, ECC memory, and precision VME/PMC connectors. Use ESD protection, anti-shock packaging, moisture barriers, and documented receiving inspection.
Q: Does the MVME55006E-0163R include the latest firmware pre-loaded?
A: Firmware depends on the installed Flash contents and previous application history. The board includes onboard Flash resources, but the correct boot image, operating system environment, and application software must be verified against the target VME system before commissioning.
