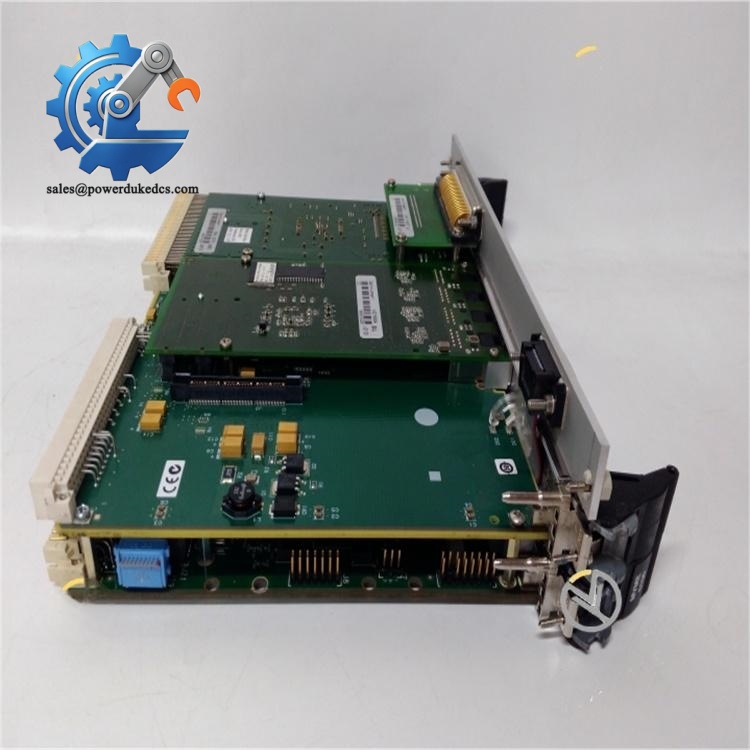

Motorola MVME61006E-0173R | Legacy Automation Asset

Description

1. Motorola MVME61006E-0173R | Legacy Automation Asset

Unboxing & Physical Snapshot

• Brand & Model: Motorola MVME61006E-0173R
• Product Type: 6U VMEbus single-board computer designed for embedded industrial computing, defense, telecommunications, and long-life automation platforms. The MVME61006E-0173R variant uses a 1.267 GHz MPC7457 PowerPC processor, 1GB DDR memory, 128MB Flash, and IEEE-style ejector handles.
• Physical Dimensions (Approximate W × H × D):
  • VME 6U board format
  • Approximately 233.4 × 160 × 20 mm
  • Front panel height approximately 261.8 mm
• Estimated Shipping Weight: Approximately 1.0–1.3 kg including ESD shielding bag, protective foam, and export packaging.
• What’s in the Box:
  • Motorola MVME61006E-0173R VME single-board computer
  • IEEE ejector handles
  • VME backplane connector interface
  • Installed DDR memory
  • Flash memory devices
  • Anti-static (ESD) shielding bag
  • Protective packaging
  • Documentation when supplied

Product Introduction

Structure B — Architecture Hook

The Motorola MVME61006E-0173R mounts directly into a 6U VME chassis as the main processing element of a modular embedded computer architecture. It communicates through the VME backplane while managing application execution, memory operations, I/O processing, and expansion resources through onboard interfaces and optional PMC devices. Confirm the VME chassis type, rear transition module, and slot allocation before installation.

This controller is typically preserved in service because many installed systems depend on validated software stacks and existing VME infrastructure. Inspect the VME edge connector, IEEE ejector handles, PMC areas, and PCB surface before deployment (—especially when the spare has remained boxed for extended periods). Handle the board by the edges only. Fingerprints, dust, or oxidation on connector surfaces can create intermittent communication failures.

Core Technical Specifications

Motorola MVME61006E-0173R

The is a specific revision within the MVME6100 family. Confirm memory size, firmware image, PMC configuration, and rear transition module requirements before approving replacement.

? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Motorola include:

• CE Mark — applicable when installed as part of a compliant equipment assembly.
• UL/cUL Recognition — may apply depending on the complete system certification.
• FCC Compliance — relevant for electromagnetic emissions requirements.
• RoHS Compliance — dependent on manufacturing date and board revision.
• IEC EMC Compliance — important for high-speed processor boards installed near industrial switching equipment.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; suitability depends on the complete enclosure and approved system design.
• Marine Approvals (DNV GL) — applicable only when integrated into certified marine control equipment.

EMC compliance is important because this VME controller combines high-frequency processor operation, memory buses, and backplane communication signals inside a compact chassis environment.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the Motorola inside the original anti-static (ESD) shielding bag. The VME connector fingers and PMC contacts require protection from airborne contaminants and oxidation.

Maintain warehouse humidity below 60% RH. Excess moisture can affect connector surfaces and solder joints during long storage periods.

Inspect stored units every 12–24 months:

• Check VME edge contacts for oxidation.
• Inspect IEEE ejector handles and front-panel hardware.
• Examine PCB surfaces for contamination or coating damage.
• Verify Flash devices and memory components remain physically secure.

Allow the sealed package to reach ambient temperature before opening. Condensation on a cold PCB can damage electronic components during handling.

Physical Installation Prerequisites

• Install only in a compatible 6U VME chassis.
• Verify VME64x backplane compatibility.
• Confirm power supply capacity before energizing.
• Provide forced-air cooling through the card cage.
• Leave at least 50 mm clearance around ventilation paths where cabinet construction allows.
• Confirm protective earth grounding continuity.
• Secure IEEE ejector handles and front-panel hardware before operation.

Do not insert or remove the controller under power unless the specific VME platform supports that procedure.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Motorola ?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the equipment. VME single-board computers are generally reviewed under electronic processing equipment or industrial control board categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Origin affect import clearance?

A: Yes. COO documentation may affect customs processing, duty assessment, and customer audit requirements. Keep the original product label, serial records, supplier documents, and receiving inspection reports.

Q3. Is shipping insurance recommended for this VME processor board?

A: Recommended. The board contains high-density connectors, processor assemblies, and memory devices that may be affected by impact, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight insurance.

Q4. Does the include the latest firmware pre-loaded?

A: Firmware depends on the installed Flash contents, boot software revision, and previous application environment. Verify the firmware image, operating system compatibility, and configuration records before installing the controller into an active system.
