1. Motorola MVME8105 | Traceable Legacy Automation Spare

Unboxing & Physical Snapshot

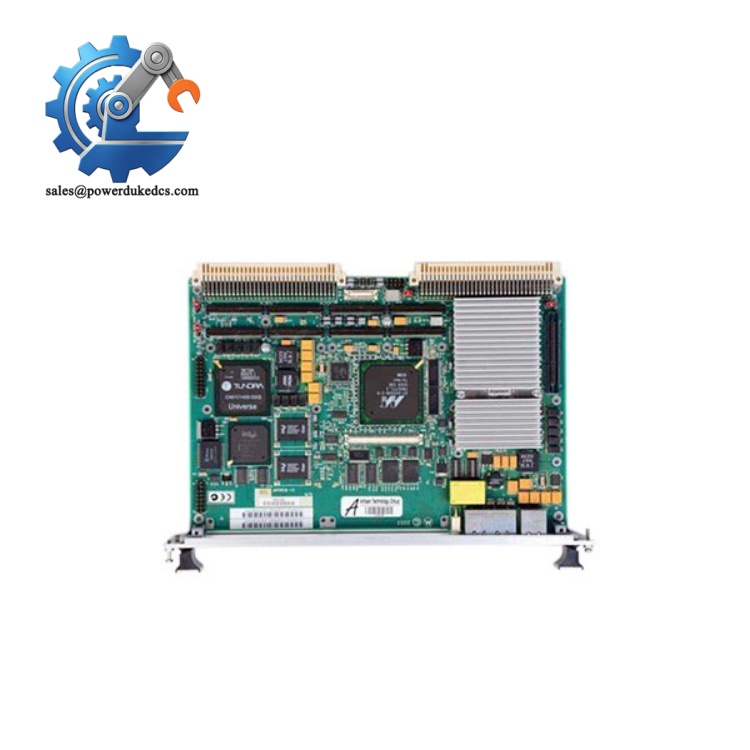

• Model & Brand: Motorola MVME8105
• Product Type: 6U VME64x Single Board Computer (SBC)
• Application: High-performance embedded controller for industrial automation, defense systems, telecommunications, and long-life VME computing platforms. The MVME8105 uses the NXP QorIQ P5020 dual-core processor running at 2.0 GHz, with 4 GB DDR3 ECC SDRAM and multiple Ethernet interfaces.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 233 mm
  • Height: approximately 160 mm
  • Depth: approximately 25–30 mm
  • Format: 6U VME64x Eurocard
• Estimated Shipping Weight: Approximately 1.5–2.0 kg including ESD protection and export packaging.
• What’s in the Box:
  • Motorola MVME8105 embedded controller board
  • Front panel assembly with Ethernet and serial interfaces
  • VMEbus P1/P2 connectors
  • Installed QorIQ processor and soldered DDR3 ECC memory
  • Anti-static (ESD) shielding bag
  • Protective foam transport packaging
  • Documentation when supplied with controlled inventory

Product Introduction

The MVME8105 installs into a 6U VME chassis and becomes the main processing node within a high-performance embedded architecture. The board communicates through the VME64x backplane while providing local processing, memory, storage, and network connectivity resources. Its design supports two PMC/XMC expansion sites, allowing additional I/O or processing hardware to be installed without changing the base controller platform (important for systems with long qualification cycles).

This controller belongs to the later generation of Motorola/Artesyn VME computing platforms. Replacement requires careful verification of firmware, operating system image, VME configuration, and expansion card compatibility. Inspect the front-panel connectors, heatsink surface, VME edge contacts, and mechanical ejectors before installation. A clean board does not guarantee compatibility; configuration records matter.

Core Technical Specifications

Motorola MVME8105

Global Compliance & Industry Certifications

Expected compliance considerations for this class of industrial embedded computing hardware include:

• CE Mark for applicable EMC and electrical safety requirements when installed within a compliant system enclosure.
• UL/cUL Listed or Recognized status depending on the final equipment assembly.
• ATEX/IECEx consideration only when installed as part of a certified hazardous-area control system.
• Marine approvals such as DNV GL where integrated into approved offshore or vessel automation equipment.

For hazardous environments, the board itself is not an explosion-protected device. The complete installation — enclosure, power supply, grounding, and system certification — determines compliance.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Store the inside its original anti-static (ESD) shielding bag. Protect the VME connector contacts, Ethernet ports, and front-panel hardware from contamination.
• Maintain warehouse humidity below 60% RH to protect PCB coatings, solder joints, and connector surfaces. Even modern boards with conformal protection options still require controlled storage.
• Inspect stored units every 12–24 months. Record firmware revision, inspect the heatsink area, verify mechanical ejectors, and check for corrosion around external connectors (small connector issues can become field failures).

Check the date code. Maintain firmware records with the physical asset.

Physical Installation Prerequisites

• Install only into a compatible 6U VME64x chassis supporting required backplane signals.
• Verify VME slot assignment, address configuration, and system controller settings before startup.
• Maintain sufficient airflow clearance for processor cooling. Leave approximately 50 mm above and below the rack assembly where cabinet design permits.
• Confirm chassis grounding and protective earth bonding.
• Verify VME power rails and system power capacity before insertion.
• Use ESD protection when handling the board.
• Confirm operating system image, boot firmware, PMC/XMC modules, and application software compatibility before commissioning.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Motorola ?
A: VME single-board computers are commonly reviewed under HS 8471 or related electronic processing equipment classifications. Final classification depends on the importing country, declared function, and customs authority interpretation.

Q: Does Country of Origin (COO) documentation matter for the ?
A: Yes. COO records support customs clearance, supplier qualification, and lifecycle traceability for critical automation assets. Retain the OEM label, serial number, purchase records, and receiving inspection documents.

Q: Should shipping insurance be purchased for the ?
A: Yes. This controller contains high-value processing hardware, ECC memory, Flash storage, and specialized VME interfaces. Use ESD packaging, shock protection, moisture barriers, and declared-value freight coverage.

Q: Does the Motorola include the latest firmware pre-loaded?
A: Not necessarily. The board includes boot memory hardware, but the installed firmware version depends on the specific production unit and previous system configuration. Verify U-Boot version, operating system image, and application compatibility before deployment.
