Description
- Brand: GE Intelligent Platforms heritage / Abaco Systems current OEM
- Full Model Number: PMC-0247RC-282000 / 350-93750247-282000F
- Lifecycle Status: Active family-level OEM listing; exact
-282000Fconfiguration to be label-verified - Core Function: PMC-form-factor Serial ATA hard disk drive module for embedded computing hosts
- Top 3 Technical Specs: PMC form factor; SATA II 3.0 Gb/s interface; up to 250 GB capacity
- Additional Interface: 32/64-bit PCI-X up to 133 MHz
- Operating Range: SATA standard +5°C to +55°C; SSD option 0°C to +70°C
- Stock & Condition: Physical stock and exact condition confirmed by quotation; New Surplus or Tested Refurbished subject to available unit
The OEM currently lists PMC-0247RC as a storage product and specifies up to 250 GB capacity, PMC form factor, SATA II 3.0 Gb/s, and 32/64-bit PCI-X operation up to 133 MHz.
Obsolescence & Supply Chain Deep Dive
A failed embedded storage card can prevent a host computer from booting even when the processor, chassis, and application hardware remain usable. The PMC-0247RC was designed as a PMC Serial ATA hard-disk module for SBCs or PMC expansion cards with an available PMC site. For maintenance teams supporting older embedded platforms, replacing the storage module can address a localized hardware failure without forcing an immediate controller or host-computer redesign. That matters when the production system has already passed site qualification and the remaining task is restoration of the original storage function. The OEM documentation confirms SATA operation, PMC integration, and operating-environment limits for the module family.
From a TCO perspective, a matching storage module can preserve existing chassis hardware, host software, wiring, application validation, and maintenance procedures. A full computer replacement introduces engineering labor, software migration, regression testing, spare inventory changes, and site requalification. The PMC-0247RC also provides an OEM-documented MTBF figure of 452,149 hours for standard operation, although actual field life depends on media type, workload, temperature, and operating conditions. For a failed unit, the economic decision should therefore compare the replacement module cost plus installation and validation labor against the much larger engineering burden of changing the host platform.
Compatibility & Replacement Matrix
| Existing Hardware Situation | Replacement Classification | Engineering Action | Planning Time | Cost Basis |
|---|---|---|---|---|
Same host, same PMC-0247RC-282000 configuration |
Drop-in Replacement | Match part number, interface, storage configuration, and host PMC site | 1–3 hours | Replacement unit + 1–3 technician hours |
| Same PMC-0247RC family, different storage configuration | Software/Configuration Compatible | Verify BIOS, boot image, capacity recognition, and OS support before release | 2–6 hours | Unit + image/validation labor |
| Host has no available PMC site | Hardware Modification | Adapter, host-board change, or system redesign may be required | 1–2 engineering days | Hardware changes + engineering/validation |
| Different legacy storage architecture | Not an automatic replacement | Review interface, boot method, mechanical clearance, and system software | Project-specific | Engineering assessment required |
Planning note: The time figures above are maintenance estimates, not OEM installation requirements.
Field Traps — Watch Out
Configuration mismatch: is a product family, while -282000 / 350-93750247-282000F identifies a specific ordering configuration. Do not approve a replacement solely from the base family name. The OEM page states capacity options up to 250 GB, so the actual media configuration must be confirmed from the replacement label and existing system image.
Mechanical clearance: The OEM datasheet states that the exceeds the PMC specification for maximum component height by 0.5125 mm on the top side and 0.7875 mm on the bottom side. Check the host carrier, adjacent PMC positions, enclosure, and airflow path before installation.
Host software dependency: The storage card is not equivalent to a PLC I/O module with a simple firmware-version rule. BIOS recognition, boot configuration, driver support, and disk-image compatibility are the practical checks. OEM documentation lists Windows 2000, Windows XP, Red Hat Linux Enterprise 4, and VxWorks 5.4/5.5 among supported operating environments for the product family.

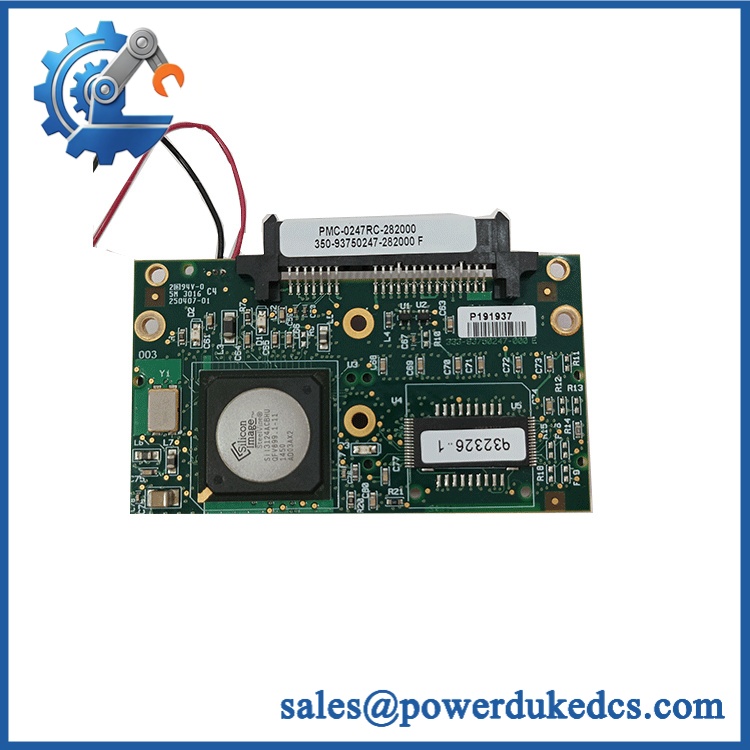

GE PMC-0247RC-282000 350-93750247-282000F
Quality Assurance & Testing SOP
1. Incoming identity control
OEM anti-counterfeit visual inspection of manufacturer markings, full part number, serial/traceability information, label consistency, connector condition, PCB condition, fasteners, and evidence of unauthorized rework.
2. Dimensional and mechanical inspection
Verify PMC card condition, connector alignment, mounting interfaces, component clearance, and absence of bent pins, cracked solder joints, damaged edge contacts, or enclosure deformation.
3. Power-on self-test (POST)
Install the module in a compatible host and execute a controlled power-up. Record host POST behavior, storage-device enumeration, BIOS recognition, and status indicators. Check ERR/RUN LEDs where fitted; when the specific configuration has no such LEDs, host-level enumeration and diagnostic status become the acceptance criteria.
4. Storage interface verification
Confirm SATA link establishment, negotiated interface behavior, device identification, reported capacity, and stable operation under repeated power cycles.
5. I/O load testing
Run controlled sequential and random read/write cycles against the storage media. Monitor for read errors, write failures, unexpected resets, degraded transfer behavior, or file-system corruption. SMART diagnostics are reviewed when exposed by the installed drive.
6. Extended functional run
Operate the module under repeated read/write activity and multiple restart cycles. Record abnormal noise, thermal behavior, communication loss, or boot instability where applicable.
7. Final release inspection
Match the tested serial number to the quotation and shipment record. Photograph the unit label and tested condition, protect connectors against transport damage, and retain the QA record with the shipment documentation.
Procurement & Lifecycle FAQ
Is the -282000 genuinely in stock, and what is the cutoff for emergency shipping?
Stock should be confirmed against a physically available unit at quotation stage because legacy inventory can move quickly. For emergency orders, request the same-day dispatch cutoff on the quotation before PO release; carrier pickup times and warehouse schedules determine the actual cutoff.
How do you verify the condition and authenticity of an obsolete or surplus unit?
The unit should be checked against the full manufacturer part number, serial or traceability markings, physical construction, connectors, and visible PCB condition, followed by host-level functional testing. Photos of the actual stocked unit should be provided when requested. The OEM currently identifies as an Abaco Systems storage product, while Abaco’s corporate history records its separation from GE in 2015 after operating as GE’s embedded technology and systems business.
Are there firmware compatibility issues my engineers should review before issuing the PO?
There is no simple PLC-style firmware revision rule documented for this storage module. The engineering review should focus on host BIOS recognition, operating-system support, boot image compatibility, storage capacity, and the exact PMC configuration. The OEM documentation also identifies programmable external flash for BIOS expansion and lists specific legacy operating-system environments.
What are the warranty and return terms?
Standard supplier coverage can be quoted as a 12-month limited warranty from shipment, subject to the condition stated on the commercial quotation. Returns should use an RMA process, with the serial number and product label matching the shipped unit. DOA or transit damage should be documented promptly with clear photographs and packaging evidence.
Why should the full 350-93750247-282000F suffix be verified before purchase?
The OEM’s current product page identifies the broader family, while the exact -282000F ordering suffix is not shown in the same OEM listing. For a legacy replacement, label-level verification of the complete part number, storage configuration, and host compatibility reduces the risk of receiving a physically similar but functionally different unit.
