Schneider ATV61HD45N4 | IP20 Control Cabinet VFD

1. Schneider ATV61HD45N4 | IP20 Control Cabinet VFD

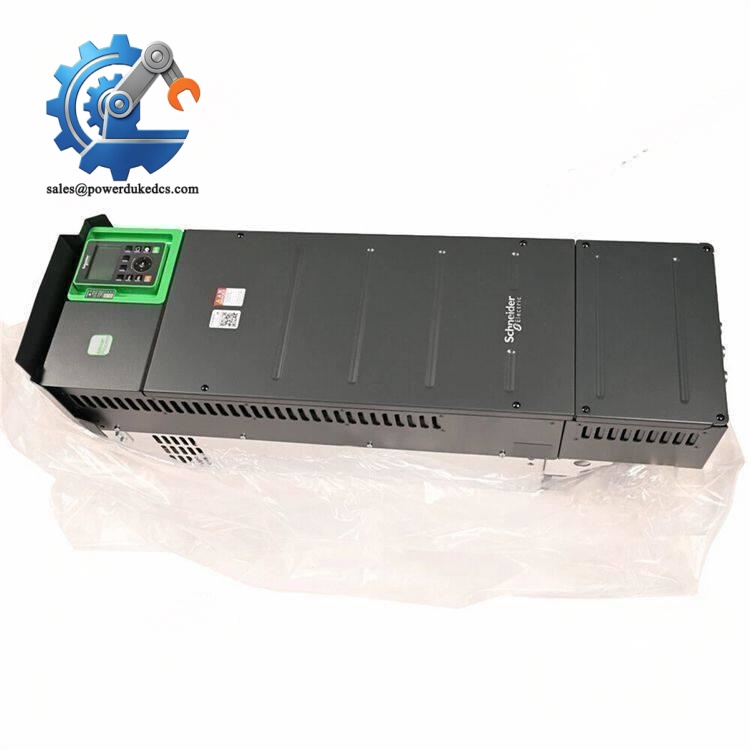

Unboxing & Physical Snapshot

• Model & Brand: Schneider Electric ATV61HD45N4 Altivar 61 Variable Speed Drive. This AC drive is designed for three-phase motor control applications, including pumping and ventilation equipment.
• Product Type: Variable Frequency Drive (VFD) / Adjustable Speed Drive.
• Power Rating: 45 kW / 60 HP, three-phase 380–480 VAC input class.
• Physical Dimensions (Approximate W × H × D): 320 × 630 × 290 mm (12.6 × 24.8 × 11.4 in.).
• Estimated Shipping Weight: Approximately 44 kg (97 lb) including drive enclosure and standard packaging.
• What’s in the Box:
  • Schneider Altivar 61 ATV61HD45N4 drive unit
  • Integrated heatsink assembly
  • Front display interface (if supplied with unit configuration)
  • Terminal covers
  • Mounting hardware where applicable
  • Installation documentation when supplied
  • Protective industrial packaging

Product Introduction

The Schneider ATV61HD45N4 mounts vertically inside an industrial control cabinet or equipment enclosure, where the rear heatsink assembly transfers inverter losses away from the power electronics. Cabinet airflow matters. Leave room around the cooling surfaces, keep cable routing controlled, and inspect the terminal covers before energization (thermal management failures are often caused by installation conditions rather than the drive itself).

This Altivar 61 drive controls three-phase motors rated up to 45 kW and supports applications such as pumps, fans, and ventilation systems. It includes integrated communication capability through Modbus and CANopen interfaces, with optional expansion cards available for additional networks. Check the firmware revision and parameter backup before replacing an installed unit because stored motor settings directly affect commissioning results.

Core Technical Specifications

Schneider ATV61HD45N4

Global Compliance & Industry Certifications

Expected compliance approvals and standards for the Schneider ATV61HD45N4 include:

• CE Mark — confirms compliance with applicable European electrical safety and EMC requirements.
• UL Type 1 / UL Listed system compliance — relevant for North American industrial installations when installed according to approved conditions.
• CSA Certification — available for applicable configurations.
• IEC 61800-3 EMC compliance — important for limiting electromagnetic interference from variable speed drives.
• ATEX/IECEx — not typically a standalone certification for this drive; hazardous-area use requires installation within an approved enclosure and system design.
• Marine approvals (DNV GL) — only applicable for specific marine-certified system configurations.

EMC certification matters because VFDs generate high-frequency switching noise that can interfere with instrumentation, safety systems, and communication networks if installation practices are incorrect.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Keep the in a dry indoor storage area with the original protective packaging intact. Do not remove terminal covers or expose the power section unnecessarily.

Maintain storage humidity below 60% RH. Moisture can affect insulation resistance, control boards, and the internal electrolytic capacitors used in the DC bus section.

For drives stored for extended periods, perform capacitor reforming procedures according to Schneider maintenance guidance before applying full operating voltage. Check the manufacturing date code first.

Inspect the following before installation:

• DC bus capacitor condition
• Cooling fan operation
• Terminal block integrity
• PCB contamination
• Heatsink surface condition
• Stored parameter compatibility

Physical Installation Prerequisites

• Install the drive vertically inside a suitable electrical cabinet.
• Provide adequate clearance for cooling airflow.
• Leave at least 100 mm above and below the drive unless the installation manual specifies otherwise.
• Keep ventilation openings free from dust accumulation.
• Mount on a rigid panel capable of supporting approximately 44 kg.
• Connect protective earth grounding before power wiring.
• Use properly rated motor cables and input protection devices.
• Separate motor power cables from low-level signal wiring.
• Verify cabinet ventilation capacity before continuous operation.
• Confirm braking resistor, communication cards, and I/O accessories before commissioning.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Schneider ?

A: Variable frequency drives are commonly classified under HS 8504.40 for static converters, although final classification depends on customs interpretation in the destination country.

Q: Does Country of Origin (COO) affect importing this Schneider VFD?

A: Yes. COO affects customs duty treatment, trade documentation, warranty records, and asset traceability. Ensure the invoice, packing list, and product label information are consistent.

Q: Should shipping insurance be purchased for the ?

A: Recommended. This is a heavy power electronic device containing IGBT modules, capacitors, cooling assemblies, and control boards. Impact or moisture damage may not be visible until commissioning.

Q: Does the include the latest firmware pre-loaded?

A: The drive may contain factory-installed firmware, but the latest revision is not guaranteed. Verify firmware compatibility, parameter backups, and application settings before replacing an operating unit.

Asset Note: Schneider Electric has discontinued commercialization of the in some markets, with replacement options available from the Altivar Process ATV600 family. Existing installed units should be managed through spare inventory planning and lifecycle assessment.
