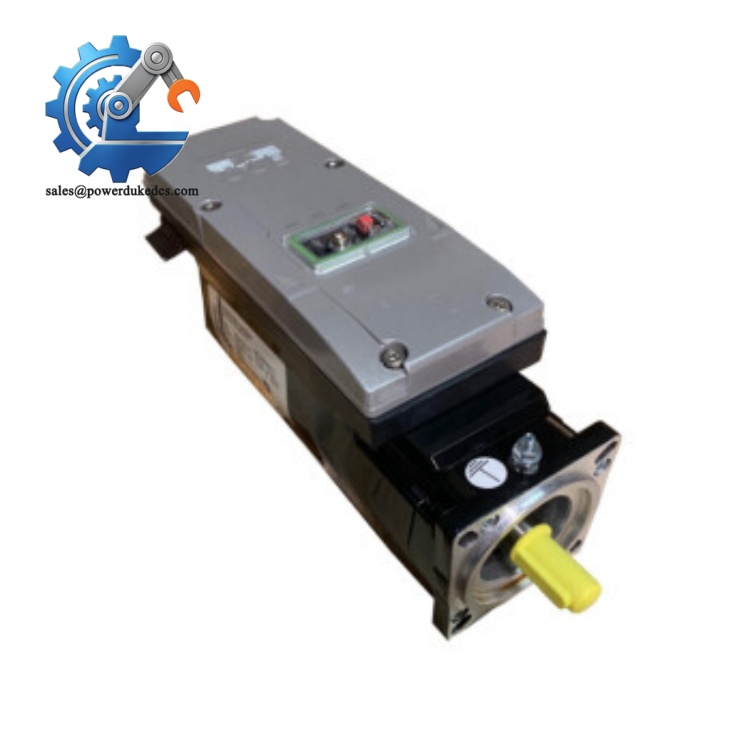

1. Schneider ISH070/60017/0/0/00/0/00/10/00 | Original PacDrive Drive

2. Unboxing & Physical Snapshot

• Brand & Model: Schneider Electric ISH070/60017/0/0/00/0/00/10/00
• Product Family: PacDrive iSH Intelligent Servo Motor (formerly ELAU)
• Product Type: Integrated intelligent servo motor with onboard servo electronics for PacDrive automation systems.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 70 × 154 × 70 mm (70 mm flange, excluding connector projection).
• Estimated Shipping Weight: Approximately 3.5 kg (7.78 lb) including protective packaging.
• What’s in the Box:
  • Schneider ISH070/60017/0/0/00/0/00/10/00 servo motor
  • Hybrid power/feedback connector
  • Factory identification label
  • Protective shaft cover
  • Anti-static protective wrapping
  • Export shipping carton

3. Product Introduction

Structure A — Environmental Hook

High-duty packaging machines rarely operate under gentle conditions. Continuous acceleration, repetitive indexing, vibration, and elevated enclosure temperatures place constant stress on servo systems. The Schneider ISH070/60017/0/0/00/0/00/10/00 was developed for these demanding motion-control environments, integrating the servo electronics directly into the motor housing to reduce cabinet hardware while maintaining precise positioning performance.

Unlike conventional servo motors that depend on separate amplifiers, the iSH series combines the drive electronics and motor into one assembly (which reduces cabinet wiring complexity). Inspect the hybrid connector, flange face, shaft finish, and encoder housing before installation. Even minor impact damage to the front bearing or connector can shorten service life.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Schneider Electric (ELAU)
Model Number	ISH070/60017/0/0/00/0/00/10/00
Product Family	PacDrive iSH
Product Type	Intelligent Servo Motor
Flange Size	70 mm
Rated Speed	6000 rpm
Standstill Torque	1.7 Nm
Supply Voltage	560 VDC integrated electronics
Cooling Method	Self-cooled (natural convection)
Shaft Type	Smooth shaft
Encoder	SinCos SKM 36
Holding Brake	None
Protection Rating	IP65 housing
Connection Type	Hybrid connector
Power Consumption	Application dependent
Heat Dissipation	Motor housing via natural convection
Mounting	IEC standard flange
Approximate Motor Length	154 mm
Net Weight	Approximately 2.1 kg
Shipping Weight	Approximately 3.5 kg

Schneider ISH070/60017/0/0/00/0/00/10/00

The integrated electronics eliminate the need for a separate servo amplifier, making hardware compatibility with the PacDrive controller essential before replacement.

5. ? Global Compliance & Industry Certifications

Expected certifications for this class of industrial motion-control hardware include:

• CE Mark for machinery installed within compliant European systems.
• UL/cUL recognition where applicable as part of the complete machine assembly.
• RoHS Compliance for applicable production revisions.
• IP65 Enclosure Protection for the motor housing, providing resistance to dust ingress and low-pressure water exposure.
• ATEX/IECEx — not applicable unless installed within separately certified hazardous-area equipment.
• Marine Approvals (DNV GL) — application dependent and not standard for this model.

An IP65 enclosure helps protect internal bearings, encoder components, and electronic assemblies from contamination in industrial production environments. Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Store the servo motor horizontally inside its original packaging. Do not allow the motor shaft to support external loads during long-term storage.

Keep storage humidity below 60% RH. Condensation around the encoder assembly or hybrid connector can reduce insulation resistance after extended storage.

For warehouse inventories exceeding two years:

• Rotate the motor shaft by hand several revolutions every 6–12 months to redistribute bearing lubricant.
• Protect the machined shaft with a corrosion inhibitor (avoid direct contact with the encoder connector).
• Inspect the connector pins and sealing surfaces before installation.

Never suspend the motor by its cable or connector during handling.

7. Physical Installation Prerequisites

• Mount the servo motor using the specified 70 mm IEC flange.
• Ensure the driven shaft is accurately aligned to prevent bearing side loading.
• Maintain at least 50 mm clearance around the motor housing for natural convection cooling.
• Verify protective earth continuity before energizing the drive.
• Confirm cable bend radius meets Schneider installation recommendations.
• Inspect the hybrid connector locking mechanism before applying power.
• Use calibrated torque values for all mounting fasteners.

Improper shaft alignment increases vibration and can significantly reduce bearing life.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. Which HS Tariff Code is typically used for the ISH070/60017/0/0/00/0/00/10/00?

A: Final HS classification depends on national customs regulations. Intelligent servo motors are commonly classified under electric motor or industrial automation equipment headings. Confirm the code with your customs broker before shipment.

Q2. Why is the Country of Origin important?

A: Country of Origin documentation affects customs duty calculations, free trade eligibility, and equipment traceability. The COO should remain consistent with the commercial invoice and manufacturer identification label.

Q3. Is shipping insurance worthwhile for this servo motor?

A: Yes. The encoder assembly, integrated electronics, precision bearings, and hybrid connector can sustain hidden impact damage even when external packaging appears intact. Insurance is recommended for international freight.

Q4. Does this servo motor include the latest firmware?

A: Not necessarily. Integrated intelligent servo motors may contain embedded firmware, but the installed revision depends on the manufacturing date. Verify firmware compatibility with the existing Schneider PacDrive controller before commissioning.
