- Schneider 140CPU65150 | Industrial PLC Processor with Ethernet
2. Unboxing & Physical Snapshot
- Model & Brand: Schneider Electric Modicon Quantum 140CPU65150
- Product Type: Unity Processor (CPU) for the Modicon Quantum automation platform with integrated Ethernet, Modbus, USB, and Modbus Plus communication interfaces. It serves as the primary controller for large-scale PLC installations.
- Approximate Physical Dimensions (W × H × D):
- Approximately 103 × 250 × 110 mm
- Estimated Shipping Weight:
- CPU module: approximately 0.9 kg
- Typical packaged shipping weight: 1.3–1.6 kg
- What’s in the Box:
- Schneider 140CPU65150 CPU module
- Integrated front LCD display
- Protective front cover
- Installed communication ports
- Anti-static (ESD) shielding bag
- Protective packaging
- Documentation when supplied
3. Product Introduction
At the center of a Modicon Quantum control cabinet, the 140CPU65150 coordinates I/O scanning, communication, diagnostics, and application execution across local and distributed automation networks. The processor combines a 166 MHz CPU with integrated Ethernet, Modbus, USB, and Modbus Plus interfaces, allowing one controller to supervise large plant architectures (which is particularly valuable in continuous-process industries where communication latency must remain predictable).
This processor should be treated as a configuration-controlled asset rather than a simple replacement module. Verify the Unity Pro application, firmware revision, PCMCIA memory contents, and communication settings before installation. Examine the front-panel connectors, key switch, and backplane connector carefully. Even minor damage to the connector pins can prevent the controller from recognizing remote I/O networks.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Product Family | Modicon Quantum |
| Model | 140CPU65150 |
| Module Type | Unity Processor (CPU) |
| Clock Frequency | 166 MHz |
| Internal RAM | 768 KB |
| Expandable Program Memory | Up to 7168 KB via PCMCIA |
| Expandable File Storage | Up to 8 MB via PCMCIA |
| Integrated Ethernet | 10/100Base-TX (RJ45) |
| Modbus Plus | Integrated (9-pin Sub-D) |
| Modbus Serial | Integrated |
| USB Programming Port | USB Type-B |
| Local Racks Supported | 2 |
| Distributed I/O Stations | Up to 63 |
| Remote I/O Stations | Up to 31 |
| Optional Communication Modules | Up to 6 |
| Bus Current Requirement | Approximately 2160 mA |
| Cooling Method | Passive cabinet convection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Approximate Weight | 0.9 kg |

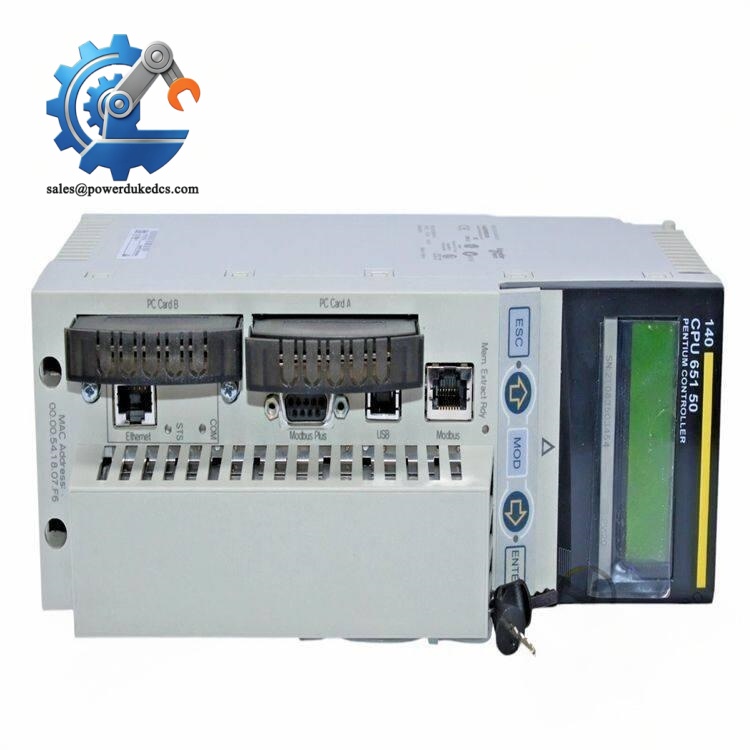

Schneider 140CPU65150
5. ? Global Compliance & Industry Certifications
Typical certifications for the 140CPU65150 include:
- CE Mark
- UL Listed / cUL
- CSA
- GOST
- HazLoc support for approved system configurations
- Marine certifications for qualified installations
One certification deserves particular attention: HazLoc approval allows the processor to be installed in approved hazardous industrial environments when all enclosure and system requirements are satisfied, reducing ignition risk around flammable atmospheres.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the processor inside its original anti-static (ESD) shielding bag with the communication connectors protected by dust covers. The RJ45 ports, USB connector, and PCMCIA slots are especially susceptible to contamination.
If the backup battery remains installed, inspect it periodically and replace it according to Schneider’s maintenance recommendations. Long-term battery leakage can damage adjacent circuitry (and replacement CPUs are becoming increasingly valuable as the Quantum platform reaches end of life).
Maintain warehouse humidity below 60% RH and store the module between -40°C and +85°C. Inspect the LCD window, connector pins, and backplane interface every 12–24 months before returning the unit to service.
7. Physical Installation Prerequisites
- Install only in a compatible Modicon Quantum rack.
- Verify the CPU slot assignment before energizing the rack.
- Leave at least 50 mm (2 in.) of clearance above and below the enclosure ventilation openings.
- Confirm protective earth bonding for the control cabinet.
- Inspect the backplane connector and communication ports before insertion.
- Secure the retaining mechanism completely.
- Load the validated application program and verify firmware compatibility before commissioning.
- Perform a complete I/O scan and network diagnostic after startup.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: Which HS Tariff Code is commonly declared for the 140CPU65150?
A: PLC processor modules are commonly classified under HS 8537 or HS 8538, depending on national customs interpretation and whether the controller is declared as complete control equipment or as a replacement part. Always verify classification with your customs broker.
Q: Does the Country of Origin (COO) matter during import?
A: Absolutely. COO affects duty assessment, preferential trade eligibility, and equipment traceability. The origin shown on the commercial invoice, packing list, and COO certificate should remain consistent throughout the shipment.
Q: Should this CPU be shipped with cargo insurance?
A: Yes. The processor contains high-density electronics, integrated communication ports, and memory circuitry. Physical shock or electrostatic discharge during transportation may not produce visible external damage but can affect long-term reliability.
Q: Will the module arrive with the latest firmware installed?
A: Not necessarily. Firmware depends on the manufacturing revision and previous service history. Before installation, verify that the firmware revision is compatible with the existing Unity Pro / Control Expert project and the plant’s validated automation configuration. The 140CPU65150 has been discontinued, and Schneider Electric recommends the Modicon M580 family as its replacement for new projects.
