- Schneider 140SAI94000S | 16-Bit Analog Input Assembly
Unboxing & Physical Snapshot
- Brand & Model: Schneider Electric 140SAI94000S
- Product Family: Modicon Quantum Automation Platform
- Product Type: Analog Safety Input Module. The 140SAI94000S is an 8-channel, 16-bit analog input safety module designed for Modicon Quantum systems.
- Primary Application: Safety-related process monitoring, industrial automation, chemical processing, power systems, and critical control applications.
- Physical Dimensions (Approximate W × H × D):
- Approximately 40 × 250 × 125 mm
- Quantum rack plug-in module format.
- Estimated Shipping Weight: Approximately 2.0 kg including terminal accessories and protective export packaging.
- What’s in the Box:

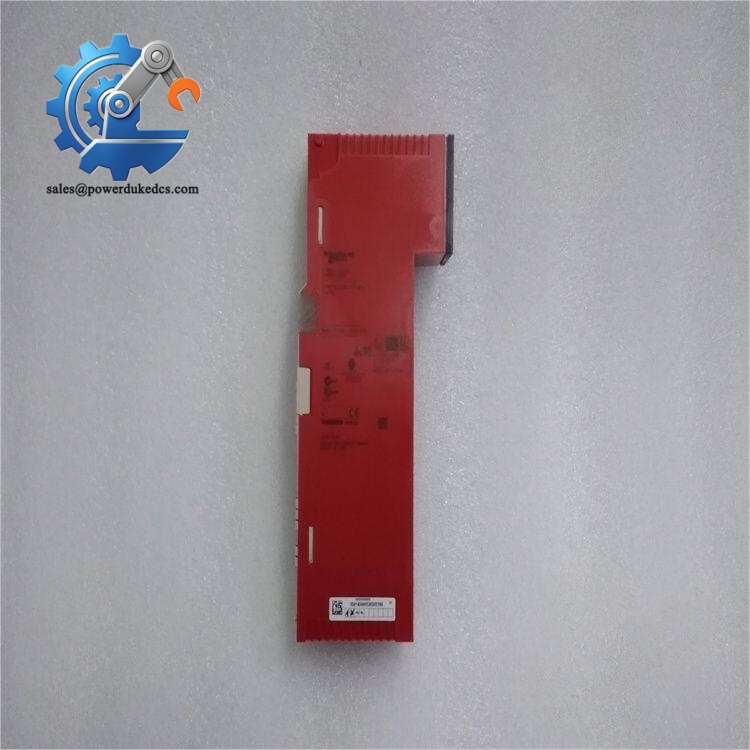

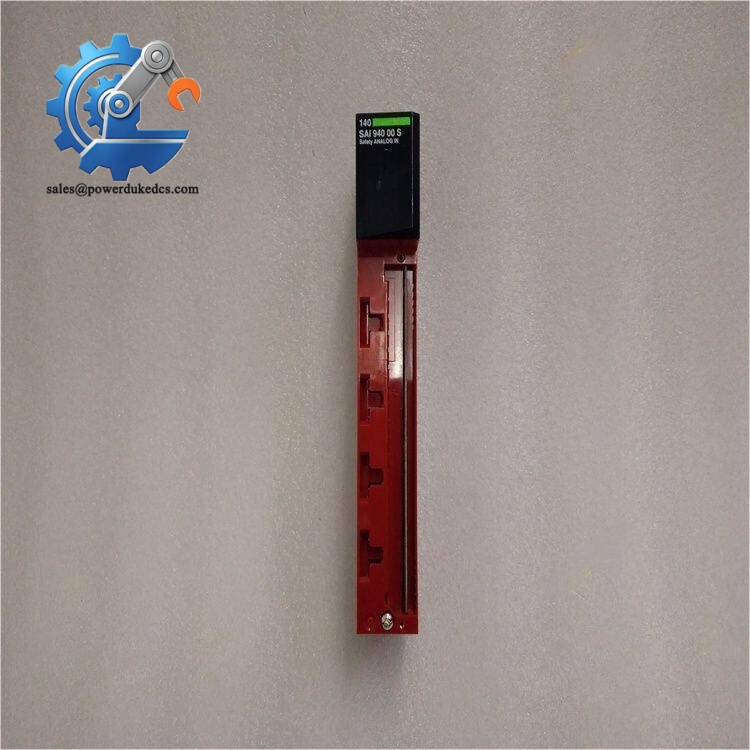

- Schneider 140SAI94000S analog safety input module
- Module housing with front identification label
- LED status indicators
- Terminal block (availability depends on supplier configuration)
- Protective anti-static (ESD) packaging
- Export protection carton
Product Introduction
Structure B — Architecture Hook
The Schneider 140SAI94000S installs directly into a Modicon Quantum PLC rack, where it exchanges process measurement data through the Quantum backplane architecture. The module provides analog safety input acquisition for field devices, converting current signals into digital values used by the control application.
This module belongs to a legacy automation family, so configuration control matters. Check the hardware revision. Confirm the rack position, wiring diagram, and safety application records before replacement (—which is critical for regulated facilities where undocumented I/O changes can trigger audit findings). The red safety module housing and identification markings should remain intact for maintenance traceability.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | 140SAI94000S |
| Product Family | Modicon Quantum |
| Module Type | Analog Safety Input Module |
| Analog Input Channels | 8 channels |
| Resolution | 16 bits |
| Input Signal Range | 0–25 mA |
| Typical Signal Type | 4–20 mA process current input |
| Input Impedance | 287 Ω |
| Address Requirement | 13 input words |
| Filter Type | Single-pole low-pass filter, 3 dB at 15 Hz |
| Power Consumption | Approximately 3.5 W |
| Bus Current Requirement | Approximately 400 mA |
| Isolation | Safety-rated channel isolation |
| Mounting Method | Quantum backplane rack mounting |
| Firmware | Module firmware dependent |
| Memory | No user application memory |
| Operating Temperature | Approximately 0°C to +60°C |
| Storage Temperature | Approximately -40°C to +85°C |
| Net Weight | Approximately 0.5 kg |
| Shipping Weight | Approximately 2 kg |
- Schneider 140SAI94000S
The 140SAI94000S provides analog signal acquisition rather than standalone control processing. It depends on the Quantum controller, rack power supply, and configured application software.
? Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations:
- CE Mark — applicable for compliant Modicon Quantum system installations.
- UL/cUL Listed or Recognized Components — associated approvals may apply depending on system certification.
- CSA Certification — listed for applicable industrial environments.
- SIL Safety Compatibility — safety modules may be used in safety-related architectures when configured according to approved system requirements.
- ATEX/IECEx — not a standalone hazardous-area device; suitability depends on the complete certified installation.
- Marine Approvals (DNV GL) — only applicable when integrated into approved marine control systems.
A safety-rated analog input module is important because incorrect signal handling in a process environment can affect protective functions. Certification confirms the hardware was evaluated under defined operating conditions.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Store the 140SAI94000S inside the original anti-static (ESD) packaging. The backplane connector contacts and internal electronic components require protection from contamination.
Maintain warehouse humidity below 60% RH. Long-term moisture exposure can cause oxidation on connector surfaces and reduce contact reliability.
Before installation:
- Inspect the front housing, LEDs, and terminal area for cracks or impact damage.
- Check the backplane connector pins for oxidation or contamination.
- Verify the module identification label matches the approved spare inventory record.
- Allow the module to reach cabinet temperature before energizing after cold storage.
Avoid stacking unprotected modules. Use ESD-safe trays for long-term inventory storage.
Physical Installation Prerequisites
- Install only in an approved Modicon Quantum rack slot.
- Confirm backplane compatibility before insertion.
- Verify field wiring matches the approved I/O documentation.
- Use ESD protection during handling.
- Confirm rack grounding and power supply integrity.
- Ensure terminal wiring is secured and correctly labeled.
- Maintain cabinet airflow for convection cooling.
- Leave at least 50 mm clearance above and below ventilation areas where cabinet design permits.
Do not force the module into the rack. Misalignment may damage the backplane connector.
- Schneider 140SAI94000S
Buyer’s FAQ (Logistics & Compliance Focus)
Q1. What HS Tariff Code is commonly used for Schneider 140SAI94000S?
A: The final Harmonized System classification depends on the importing country’s customs rules and the declared function of the module. PLC I/O modules are generally reviewed under industrial electrical control equipment categories. Confirm the final HS code with your customs broker.
Q2. Does Country of Origin affect 140SAI94000S import clearance?
A: Yes. COO documentation supports customs processing, customer qualification, and safety system traceability. Keep the OEM label, commercial invoice, packing list, and receiving inspection records together.
Q3. Should shipping insurance be purchased for this Quantum safety module?
A: Recommended. The module contains precision electronic circuits and safety-related hardware. Transportation shock, moisture, or ESD exposure can create failures that are not visible during receiving inspection.
Q4. Does the Schneider 140SAI94000S include the latest firmware pre-loaded?
A: The module may contain internal firmware, but it does not store the user application program. Verify firmware revision compatibility with the Quantum controller and safety configuration before commissioning.
