Description
- ABB SYN5302a-Z,V277 3BHB006716R0277 | SYCHROTACT 5 Spare Module for Generator Applications
2. At-a-Glance Executive Brief
- Model: SYN5302a-Z,V277
- ABB Product ID: 3BHB006716R0277
- Brand: ABB
- Series: SYCHROTACT 5
- Part Type: Automatic Dual-Channel Synchronizer
- Core Function: Controls automatic synchronization between generators and the electrical grid, as well as parallel connection of synchronous lines.
- Key Specs: Dual-channel architecture, support for 50 Hz, 60 Hz, and 16.7 Hz, up to 7 parameter sets, configurable digital I/O, and fieldbus communication options including Modbus and PROFIBUS.
- Application: Generator synchronization, grid connection, busbar paralleling, and power-system synchronization control.
3. Product Introduction
When a generator must be connected to an energized grid or busbar, the breaker cannot simply close whenever the voltage looks correct. Frequency, phase angle, and voltage conditions must be brought within the permitted synchronization window first.
The ABB SYN5302a-Z,V277, product ID 3BHB006716R0277, belongs to the SYCHROTACT 5 generation of ABB synchronizing equipment. Its catalog designation is “SYN 5302a-Z, V277: Auto Dual Channel Syn.”
The dual-channel design uses two microprocessor systems and is intended for applications where synchronization availability and control-system redundancy are important. The device supports automatic synchronization of generators and power lines and can handle different paralleling requirements through configurable parameter sets.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHB006716R0277 |
| Model | SYN5302a-Z,V277 |
| Catalog Description | SYN 5302a-Z, V277: Auto Dual Channel Syn |
| Series | SYCHROTACT 5 |
| Product Type | Automatic Dual-Channel Synchronizer |
| Channel Architecture | Dual-channel |
| Main Function | Automatic synchronization of generators and power systems |
| Synchronization Applications | Generator-to-grid, generator-to-busbar, line paralleling |
| Rated Frequencies | 50 Hz / 60 Hz / 16.7 Hz |
| Parameter Sets | Up to 7 independent parameter sets |
| Digital I/O | Freely configurable digital inputs and outputs |
| Communication | Modbus / PROFIBUS / LON; IEC 61850 supported within the SYCHROTACT 5 architecture |
| Remote Service | TCP/IP / Internet |
| Dead-Bus Function | Supported |
| Dead-Line Function | Supported |
| Diagnostic Function | Watchdog |
| Mounting / Construction | Industrial synchronization device |
| Reported Net Weight | 3.5 kg |
| Reported Gross Weight | 3.5 kg |
| Minimum Order Quantity | 1 piece |
| Country of Origin Listed by Supplier | Switzerland |
| Customs Tariff Number | 85437000 |

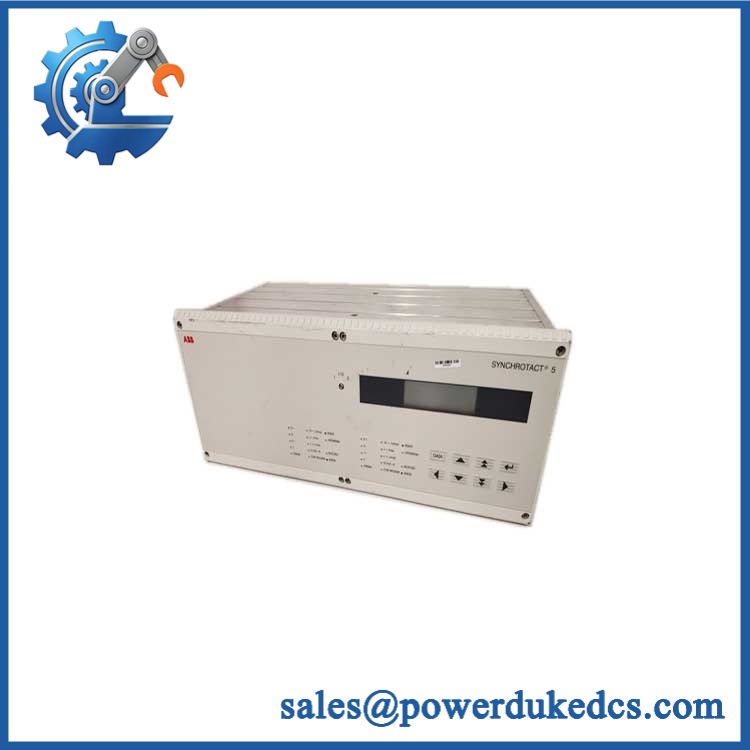

ABB SYN5302a-Z,V277 3BHB006716R0277
ABB SYCHROTACT 5 documentation and product references describe the family as automatic synchronization equipment for generators and power lines, with 50 Hz, 60 Hz, and 16.7 Hz operation, configurable I/O, multiple parameter sets, dead-bus/dead-line functions, and fieldbus connectivity.
5. Application Scenarios & Pain Points
A gas-fired power plant preparing a generator for grid connection needs synchronization logic that can evaluate the electrical conditions before breaker closure. SYN5302a-Z,V277 is designed for this generator-to-grid synchronization role.
In hydroelectric generation, several generators may operate against different operating requirements. The SYCHROTACT 5 platform supports multiple parameter sets, allowing one device to accommodate different paralleling points and operating conditions.
For industrial captive-power systems, automatic synchronization can reduce dependence on manual breaker-closing procedures. The controller evaluates the required synchronization conditions and controls the paralleling sequence.
During busbar paralleling, dead-bus and dead-line functions are useful when the switching arrangement requires controlled handling of energized and de-energized sections. These functions are part of the SYCHROTACT 5 feature set.
At sites operating across 50 Hz and 60 Hz networks, frequency support is an important selection criterion. SYN5302a-Z,V277 belongs to a platform designed for 50 Hz, 60 Hz, and 16.7 Hz applications.
6. Common Error Codes & Diagnostic Symptoms
Symptom/Code: Synchronization permission does not occur
→ Diagnosis: The measured voltage, frequency, phase-angle difference, or configured synchronization conditions remain outside the programmed closing window. Check voltage transformers, frequency inputs, phase sequence, parameter settings, and breaker feedback.
→ Action: Verify the synchronization parameters and field signals before replacing the synchronizer.
Symptom/Code: Breaker fails to close after synchronization command
→ Diagnosis: Inspect the breaker-control circuit, output relay path, breaker-ready feedback, interlocks, and synchronization output configuration.
→ Action: Trace the complete command chain from SYN5302a-Z,V277 to the breaker mechanism.
Symptom/Code: Watchdog / internal diagnostic indication
→ Diagnosis: A watchdog or internal diagnostic event can indicate abnormal processor operation, power instability, or an internal hardware condition. Check auxiliary power and diagnostic information before returning the unit to service.
→ Action: Perform controlled diagnostics and replace the synchronizer if the fault remains associated with the module.
7. Cross-Reference & Lifecycle Migration
Related Product References
The principal ordering identity is:
- ABB Product ID: 3BHB006716R0277
- Model: SYN5302a-Z,V277
- Catalog Description: SYN 5302a-Z, V277: Auto Dual Channel Syn
- Series: SYCHROTACT 5
A related ABB variant is SYN5302A-Z,V217, 3BHB006716R0217, which appears in ABB-related product references. The V217 and V277 designations identify different variants and should be selected according to the installed system configuration rather than treated as interchangeable solely from the model family name.
Lifecycle & Spare Strategy
SYNCHROTACT 5 equipment is a mature ABB synchronization platform. For plants operating this generation of synchronizing equipment, maintaining an exact spare is practical because synchronization hardware is directly involved in generator and grid-paralleling operations.
For buffer-stock planning:
- Keep the exact 3BHB006716R0277 identification on the spare-parts list.
- Record the installed V277 configuration before ordering.
- Retain parameter-set documentation with the spare.
- Preserve configuration and commissioning records alongside the replacement unit.
- Verify communication and I/O configuration after replacement.
The SYCHROTACT 5 platform was also designed to support replacement of older SYNCHROTACT systems and synchronization equipment from other manufacturers, making it relevant to legacy migration projects.

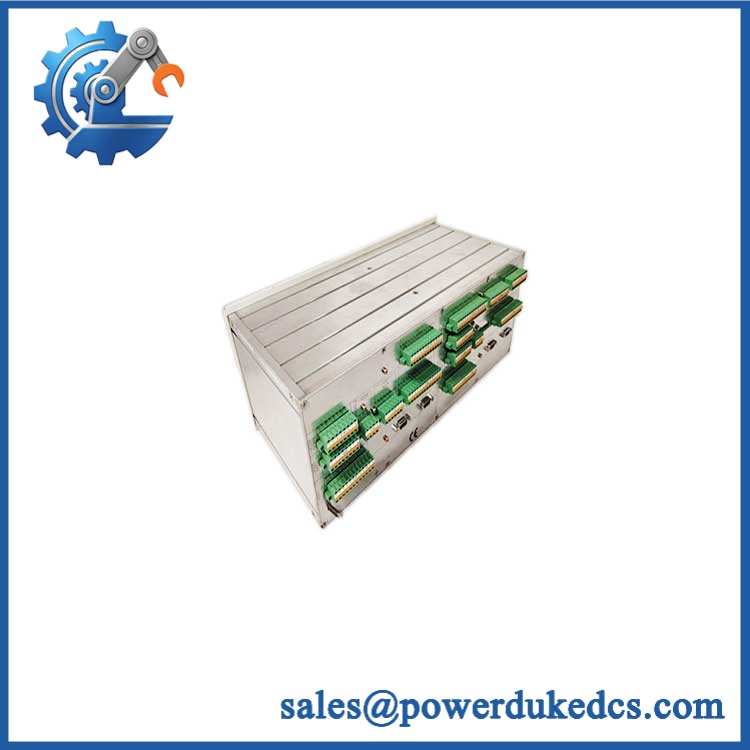

ABB SYN5302a-Z,V277 3BHB006716R0277
8. Field Engineer’s Tech Notes
Tech Note 1 — Do not confuse V277 with V217.
The SYN5302 family contains different variants, including V277 and V217. Check the complete catalog designation and product ID before installation. A similar-looking unit is not a substitute until the electrical and configuration requirements have been matched.
Tech Note 2 — Preserve the synchronization parameters.
Before removing a functioning unit, record the configured paralleling points, input assignments, output logic, breaker settings, and communication parameters. The platform can store multiple parameter sets (up to seven), so configuration data should be treated as part of the replacement package.
9. Strict QA & Testing SOP
- Part Number Verification
Confirm 3BHB006716R0277 / SYN5302a-Z,V277 against the purchase order and product label. - Nameplate Inspection
Photograph the model, product ID, serial information, and manufacturer markings. - Physical Inspection
Check the housing, terminals, connectors, mounting points, labels, and enclosure for mechanical damage. - Configuration Review
Record the existing parameter configuration before removing the original synchronizer. - Power Supply Test
Apply the specified auxiliary supply through a controlled test setup and verify stable startup. - Display / Diagnostic Check
Check startup indications and available diagnostic functions. - Input Simulation
Apply controlled generator-side and grid-side voltage/frequency signals appropriate to the test environment. - Synchronization Logic Test
Verify frequency, voltage, phase-angle measurement, synchronization permission, and programmed operating limits. - Output Test
Check the configured synchronization and breaker-control outputs using an appropriate simulation rig. - Communication Test
Where applicable, test the configured Modbus, PROFIBUS, LON, or IEC 61850 communication interface. - Parameter Set Verification
Confirm the required parameter sets and paralleling-point configurations. - Final Inspection & Packaging
Record the test results, photograph the tested unit, place it in ESD-safe/protective packaging where applicable, and use shock-resistant outer packaging.
Test videos can be provided when available, allowing the buyer to review the unit’s visual inspection and functional test process before shipment.
10. Buyer’s FAQ
Q1. Can SYN5302a-Z,V277 be hot-swapped?
This synchronizer should be replaced according to the applicable ABB installation procedure and site electrical-safety requirements. In generator synchronization systems, removing an active controller without first placing the relevant control circuit into a safe maintenance state can affect breaker-control logic.
Q2. Is SYN5302a-Z,V277 the same as SYN5302A-Z,V217?
No. They are different variants. SYN5302a-Z,V277 corresponds to 3BHB006716R0277, while ABB-related product references list SYN5302A-Z,V217 as 3BHB006716R0217. Verify the complete installed part number before ordering.
Q3. What does “V277” mean in the product designation?
V277 is part of the ABB ordering designation for this particular SYN5302a-Z configuration. It should be retained exactly when matching a replacement because the SYN5302 family includes multiple variants.
Q4. Is SYN5302a-Z,V277 suitable for generator synchronization?
Yes. Its primary application is automatic synchronization of generators with power lines or busbars. The SYCHROTACT 5 family is designed for automatic generator synchronization and paralleling applications.
Q5. Does the unit support multiple paralleling points?
Yes. The SYCHROTACT 5 platform supports up to seven parameter sets, allowing different synchronization requirements to be configured for different paralleling points.
Q6. What should be included with a replacement unit?
For a critical power-system application, the procurement package should include the exact 3BHB006716R0277 identification, product condition, serial/label photographs, test documentation, applicable warranty terms, and configuration information associated with the installed synchronizer.
