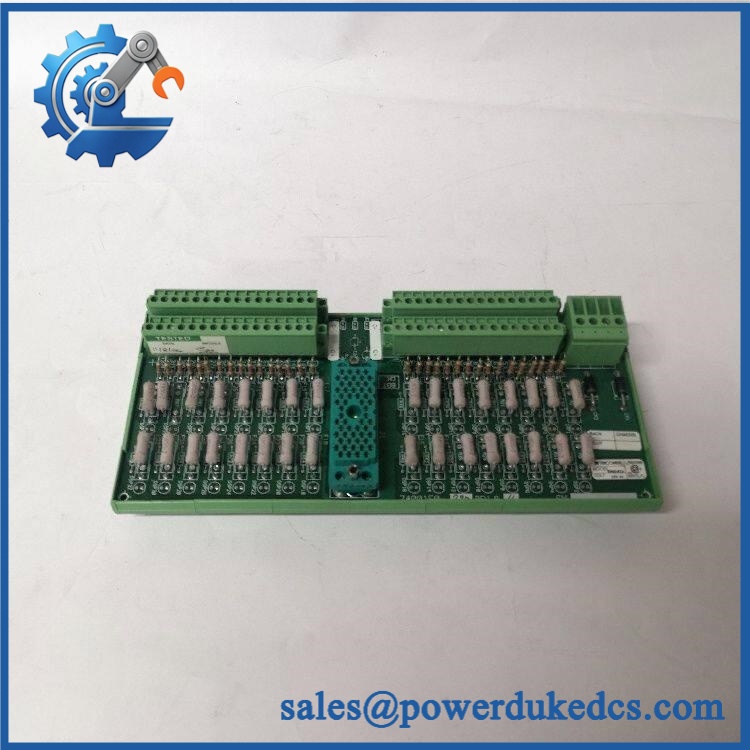

Triconex 3000540-380 | External Termination Assembly

Unboxing & Physical Snapshot

• Model & Brand: Triconex 3000540-380, identified in Tricon field-termination documentation as the ETA (External Termination Assembly) associated with 9566-810. The same cross-reference specifies cable 4000093-310.
• Physical Dimensions: Verify the exact OEM mechanical drawing. Available third-party listings provide inconsistent dimensions and should not be used for cabinet fabrication.
• Estimated Shipping Weight: Verify actual packed weight. Do not use third-party weights for customs or freight documents without physical weighing.
• What’s in the Box: 3000540-380 termination assembly and protective packaging/documentation where supplied. Do not assume the 9566-810 I/O hardware or 4000093-310 cable is included.
• Receiving inspection: Record the complete part number, terminal arrangement, connector condition, mounting hardware, serial/lot identification where present, and associated system references.

Product Introduction

The 3000540-380 is an external termination assembly associated with the Triconex 9566-810 configuration. Tricon technical documentation explicitly maps 9566-810 → 3000540-380 ETA → 4000093-310 cable, providing a substantially stronger identification basis than generic reseller descriptions.

Treat it as a field-termination/interface component, not as a standalone processor or generic I/O module. That distinction matters because the termination assembly, associated cable, and host I/O hardware form a defined wiring interface. A visually similar termination panel can have different terminal assignments or cable interfaces (which can create a serious point-to-point wiring error in a safety system).

Core Technical Specifications

Triconex 3000540-380

The Tricon field-termination cross-reference provides the most reliable identification: 9566-810 uses ETA 3000540-380 and cable 4000093-310.

Several aftermarket pages incorrectly describe 3000540-380 itself as a digital-output or digital-input module, and publish unsupported electrical ratings. Those descriptions conflict with the Tricon termination cross-reference and should not be used for engineering classification.

Global Compliance & Industry Certifications

• IEC 61508 / SIL: The ETA should not be assigned an independent SIL rating. Functional-safety capability belongs to the validated Tricon architecture and approved hardware/software configuration.
• IEC 61511: Process SIS installation remains subject to the applicable safety lifecycle, verification, validation, and management-of-change requirements.
• CE Mark: Verify the applicable Schneider Electric/Tricon declaration for the complete equipment configuration.
• UL/cUL: Confirm product-specific certification where required.
• ATEX/IECEx: Do not assume hazardous-area approval from the Triconex designation. Verify the complete certified installation and associated equipment.
• Marine approvals: DNV, ABS, LR, or equivalent approvals require exact certificate verification.
• EMC: Grounding, shield termination, cable routing, and field wiring remain part of the overall EMC design.

For this component, termination integrity is the key compliance and reliability issue. A certified Tricon controller cannot compensate for incorrect field termination.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Protect the termination contacts. Keep the 3000540-380 in its original protective packaging and prevent dust, moisture, oil, and fingerprints from reaching terminals and mating interfaces.
2. Prevent mechanical damage. Store the assembly on a stable shelf rather than underneath heavy modules. Terminal blocks, mounting clips, and connector housings must remain straight and undamaged (a minor mechanical deformation can later produce a poor electrical connection).
3. Maintain the system cross-reference. Store the 3000540-380, 9566-810, and 4000093-310 identifiers together in the asset record. This prevents a termination assembly from being separated from the configuration it was designed to support.

Physical Installation Prerequisites

• System compatibility: Verify that the termination assembly is specifically intended for Tricon 9566-810.
• Cable: Confirm the associated 4000093-310 cable or an OEM-approved replacement.
• Mounting: Use the applicable Tricon field-termination mechanical arrangement.
• Clearance: Provide sufficient access for terminal tightening, inspection, cable routing, and service removal.
• Grounding: Follow the approved Tricon cabinet grounding and bonding architecture.
• Terminal identification: Verify each terminal against the approved loop and termination drawings before landing field conductors.
• Cable segregation: Maintain required separation from VFD output circuits, motor feeders, contactors, and other high-noise conductors.
• Commissioning: Complete point-to-point continuity and signal verification before returning the associated safety function to service.

Buyer’s FAQ

Q: What HS tariff code should be used for Triconex 3000540-380?
A: Do not classify it as a generic digital I/O module. The Tricon documentation identifies it as an ETA associated with 9566-810. Have the importing-country customs broker determine the applicable HS/national tariff classification from that verified technical description.

Q: What Country of Origin should be declared?
A: Use the actual manufacturing Country of Origin (COO) supported by the product marking, manufacturer documentation, or Certificate of Origin. Do not infer COO from the distributor’s shipping location.

Q: Should shipping insurance be purchased?
A: Consider insurance based on replacement value and plant criticality. Protect the terminal assembly against impact because damage to a connector or mounting feature may not be visible through the carton.

Q: Does the 3000540-380 contain the latest firmware?
A: No conventional firmware should be expected in the ETA itself. It is an external termination/interface assembly. Firmware control applies to the associated Triconex electronic modules and controllers.

Asset-control note: The controlled relationship should be recorded as:

TRICONEX 9566-810 → ETA 3000540-380 → Cable 4000093-310

This cross-reference is explicitly documented in Tricon field-termination material. Do not inventory 3000540-380 as a standalone digital input/output module without contradictory OEM evidence.
