TRICONEX 3211S2 | Tri-GP Communications Integration Module

Description

• Brand: TRICONEX
• Full Model Number: 3211S2
• System/Series Family: Tri-GP 3.x Communications Integration Module
• One-Sentence Core Function: Communications Integration Module providing Ethernet and serial connectivity for Tri-GP controllers
• Top 3 Hardcore Specs: 2 network ports; configurable serial communication; Modbus TCP/RTU, TriStation, TSAA, Peer-to-Peer
• Stock Status: New Surplus / Fully Tested Refurbished — verify Tri-GP revision and CIM baseplate configuration before shipment

Module 3: Technical Product Introduction

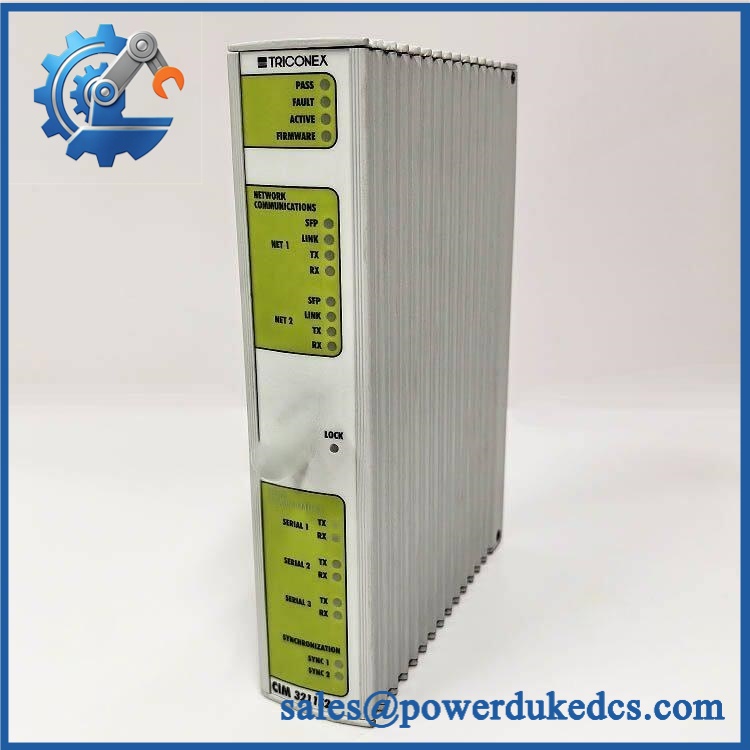

A communication fault in a Tri-GP controller can isolate an otherwise healthy safety application from engineering stations, peer controllers, or external process systems. The TRICONEX 3211S2 is the Communications Integration Module (CIM) for the Tri-GP platform, providing the network and serial interfaces required for controller communication. Triconex lifecycle documentation explicitly identifies 3211S2 as the Communication Interface (CIM) for Tri-GP, while the TriStation documentation distinguishes it from the Trident CIM, model 3211.

The CIM supports TriStation, TSAA over UDP/IP, Peer-to-Peer UDP/IP, Embedded OPC UA, Modbus Master/Slave over TCP, and Modbus Master/Slave over RTU or ASCII through its available network and serial interfaces. The documented architecture supports a maximum of two CIMs on one CIM baseplate in a Trident or Tri-GP 3.x controller. For enhanced peer-to-peer communication, the Tri-GP 3211S2 is specifically supported as the CIM endpoint, with enhanced messaging available when the applicable controller configuration and function blocks are enabled.

TRICONEX 3211S2

Module 4: Application Scenarios & Field Realities

• In a Tri-GP safety controller cabinet, the 3211S2 provides the external communication path used for engineering access, controller-to-controller data exchange, and communication with compatible supervisory or process systems. A failed CIM can therefore present as a communications outage rather than a logic-execution failure.
• For Modbus integration, the serial ports can be configured for Modbus Master or Slave operation, including RTU and ASCII modes, while Modbus TCP is available through the network ports. The actual master/slave role and addressing must be restored from the existing Tri-GP configuration rather than inferred from the hardware alone.
• When peer-to-peer communication is part of the safety architecture, the 3211S2 supports enhanced peer-to-peer communication in Tri-GP systems. The communication guide specifically identifies Tri-GP controllers with Model 3211S2 CIMs as participants in the enhanced peer-to-peer architecture.
• During controller refurbishment, check the CIM baseplate before changing the module. Triconex documentation states that a Tri-GP 3.x controller can support up to two CIMs on one CIM baseplate. The replacement therefore needs to match the installed baseplate arrangement, slot assignment, and controller revision.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps — Watch Out

1. Do not confuse 3211S2 with the Trident 3211 CIM.
The two model numbers belong to different controller families. Trident uses 3211, while Tri-GP uses 3211S2. The lifecycle documentation explicitly separates them.

2. Preserve network and serial configuration.
A replacement CIM can power up normally while the controller remains unreachable because IP parameters, protocol assignments, serial modes, or node addresses were not restored correctly. Photograph the existing configuration before removal.

3. Verify the CIM baseplate and media adapter.
The Tri-GP technical guide identifies 2211S2 as the CIM baseplate kit and 2211-100S2 as the associated CIM media adapter in the standard CIM TriPak. A standalone 3211S2 should not be ordered without checking the installed communication hardware.

4. Do not assume every protocol is available on every port.
The TriStation documentation specifies that TriStation and TSAA functions use the network ports, while serial protocol availability differs by port. For example, the documented serial TriStation connection is through Port 3, whereas Modbus Master/Slave functions can operate through the serial ports.

Module 6: Quality Assurance SOP

1. OEM anti-counterfeit visual inspection — inspect TRICONEX/Invensys identification, 3211S2 marking, board labels, connectors, mounting hardware, and visible manufacturing information.
2. Exact part-number verification — confirm 3211S2 character-for-character against the purchase order and physical module label.
3. Controller-family verification — confirm the intended installation is a Tri-GP controller and not a Trident system requiring the 3211 CIM.
4. Hardware-revision and configuration record — photograph firmware/revision information, network settings, serial-port configuration, node addressing, and all visible configuration identifiers before testing.
5. Mechanical inspection — inspect the module housing, connector interfaces, board contacts, mounting hardware, and CIM baseplate mating surfaces for contamination, oxidation, bent contacts, or mechanical damage.
6. Power-on self-test (POST) — energize the 3211S2 in an approved Tri-GP test environment and record startup indications, diagnostics, current behavior, and abnormal temperature rise.
7. Network interface verification — test both network interfaces where the laboratory fixture supports them. Verify link establishment, controller identification, and stable packet exchange using the approved Tri-GP configuration.
8. Serial interface verification — test representative serial ports in the required RS-232/RS-422/RS-485 configuration, where applicable to the specific hardware arrangement, and confirm correct port operation.
9. Communication handshake verification — establish a controlled TriStation connection and verify module identification and diagnostic access. Where required, test Modbus TCP, Modbus RTU/ASCII, TSAA, or another documented protocol against a compatible test endpoint.
10. Peer-to-peer verification — for systems using enhanced peer-to-peer communication, connect the 3211S2 to a compatible Tri-GP test controller and verify the configured communication function blocks and data exchange.
11. Redundancy/baseplate verification — where two CIMs are installed, confirm both modules are correctly recognized and configured on the CIM baseplate before release.
12. Final QC and packaging — document the exact model, revision, interface-test results, configuration record, photographs, ESD protection, and packaging condition before shipment.

Engineering note: The TRICONEX 3211S2 is not a digital-output or analog-input module. The strongest technical evidence identifies it specifically as the Communications Integration Module (CIM) for Tri-GP controllers. The TriStation documentation confirms support for network protocols such as TriStation, TSAA, Peer-to-Peer, OPC UA, and Modbus TCP, plus serial Modbus and other supported functions.
