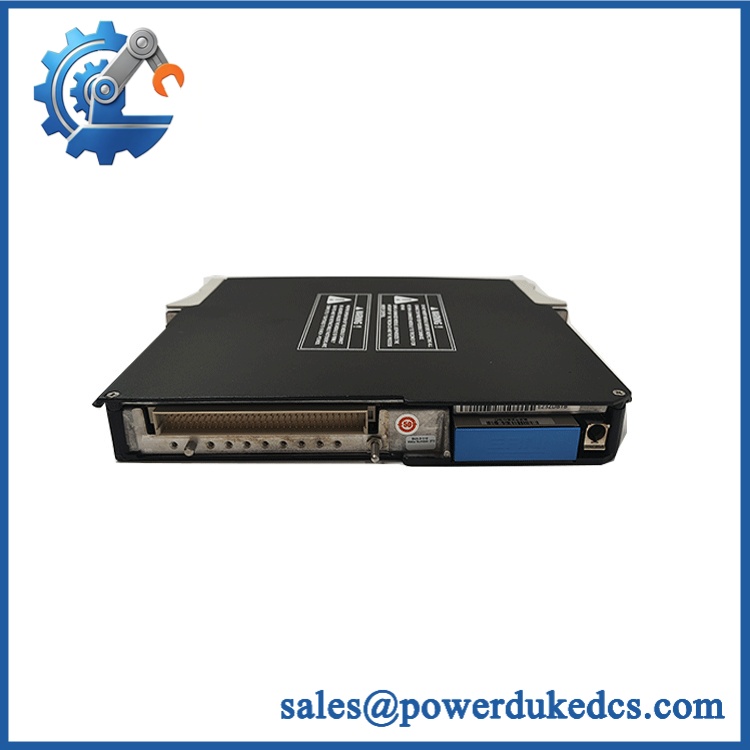

TRICONEX 3301S2 | 32 Channel TMR 24VDC Digital Input Module

Description

• Brand: TRICONEX / Schneider Electric
• Full Model Number: 3301S2
• System/Series Family: Tri-GP v2 / Tri-GP v3 General Purpose Safety System
• One-Sentence Core Function: 32-point 24 VDC commoned digital input module with triplicated processing and continuous diagnostic coverage
• Top 3 Hardcore Specs: 32 commoned inputs; 19.2–30 VDC operating range; 0–5 VDC Off / 15–30 VDC On threshold
• Stock Status: Stock condition and hardware revision to be confirmed

Module 3: Technical Product Introduction

A failed digital input card can remove dozens of field states from a safety controller at once—emergency-stop contacts, valve position switches, breaker feedback, motor status, and permissive signals may all disappear together. The TRICONEX 3301S2 is a 32-point, 24 VDC digital input module used with Triconex Tri-GP systems. Its electronics are triplicated, with three independent processing paths connected through the I/O architecture; the module continuously evaluates the field inputs while supporting a hot-spare arrangement. The documented input type is commoned 24 VDC rather than individually isolated input channels.

For field engineering, the electrical thresholds are more important than the channel count alone. The published specifications define a 19.2–30 VDC operational range, 33 VDC absolute maximum input voltage, and an input threshold of 0–5 VDC Off, 6–14 VDC transition, and 15–30 VDC On. Input impedance is greater than 30 kΩ without the baseplate and approximately 3 kΩ with the baseplate. The input delay is characterized by a 2.86 ms time constant at −3 dB / 55 Hz, while the force-to-value diagnostic operates in less than 2 ms per test.

Module 4: Application Scenarios & Field Realities

• On emergency shutdown pushbuttons and permissive circuits, the 3301S2 provides dense acquisition of 24 VDC discrete states. Because the inputs are commoned, the field wiring architecture must be reviewed carefully; do not assume the same isolation behavior as an individually isolated input module.
• For motor and valve status monitoring, 32 points can cover a large group of auxiliary contacts from one I/O position. The key commissioning check is the threshold margin: a field circuit sitting below 15 VDC is not a guaranteed logic-high input, even though the nominal system voltage may be 24
• Within a Tri-GP hot-spare arrangement, the active and standby modules share the configured I/O set, and the I/O hardware is mechanically keyed to prevent insertion into an incompatible position. Before replacement, confirm whether the installed module is active or hot-spare and preserve the original baseplate assignm
• During maintenance of older Tri-GP cabinets, distinguish the 3301S2 from the 3311S2. Both provide 32 commoned 24 VDC inputs, but 3311S2 is the high-resolution digital-input variant with a much faster input response. Using the wrong variant can change the signal timing characteristics of the applicat

TRICONEX 3301S2

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Drop-in Replacement Within the Matching Tri-GP Configuration

A like-for-like 3301S2 replacement is appropriate when the installed controller is a compatible Triconex Tri-GP system using the corresponding 2301S2 digital-input baseplate or another explicitly supported 3301S2 termination arrangement. Triconex documentation identifies 3301S2 as the standard 24 VDC digital-input module and 2301S2 as its typical direct-termination basepl

3301S2 → 3311S2: Software/Timing Compatibility Review Required. Both are 32-point, commoned 24 VDC DI modules, but 3311S2 is the higher-resolution variant with a substantially faster input response and additional diagnostic functionality. It should not be substituted solely because the terminal count and nominal voltage ma

3301S2 → 3301: Hardware and Configuration Verification Required. The S2 suffix belongs to the Tri-GP product generation and its associated baseplate ecosystem. Do not assume an older 3301 reference has identical mechanical keying, diagnostics, or system compatibility.

⚠️ Field Traps — Watch Out

1. Commoned-input architecture: The 3301S2 is specified as 32 points, commoned. It should not be treated as 32 individually galvanically isolated inputs. Confirm the field common arrangement and external wiring before applying voltage to a replacement mod

2. Input threshold and supply margin: The documented On region begins at 15 VDC, while 6–14 VDC is a transition region. Check voltage at the actual module termination under load, not only at the field transmitter or power-supply terminals. A long cable run, contact resistance, or weak field supply can move a nominal 24 VDC signal toward the transition reg

3. Baseplate dependency: The input impedance changes substantially when the module is installed on its baseplate—greater than 30 kΩ without the baseplate versus approximately 3 kΩ with it. Functional testing should therefore be performed in the correct baseplate configuration rather than with a bare card al

Module 6: Quality Assurance SOP

Each TRICONEX 3301S2 should undergo a documented identification, electrical, diagnostic, and communication test sequence before shipment.

• OEM identification visual inspection: Verify TRICONEX / Schneider Electric markings, 3301S2 designation, serial number, hardware revision, front-panel legends, connector condition, and module keying.
• Platform verification: Confirm the unit is intended for the customer’s Tri-GP generation and record the associated baseplate model.
• Mechanical inspection: Examine the housing, connector interface, guide/keying features, status LEDs, PCB assembly, and mounting surfaces for cracks, corrosion, contamination, or evidence of repair.
• Power verification: Install the module in an approved 2301S2-compatible test arrangement and apply 24 VDC within the documented **19.2–30 VDC operational rang
• Power-on self-test (POST): Confirm expected startup behavior and inspect PASS, FAULT, ACTIVE, and field-power indications before applying production-style signals.
• 32-channel input test: Exercise all 32 channels individually with controlled 24 VDC signals and record the resulting input states.
• Threshold verification: Test representative channels below 5 VDC, within the 6–14 VDC transition region, and above 15 VDC to verify the expected Off/transition/On behav
• Diagnostic verification: Exercise the approved force-to-value diagnostic procedure and verify the expected diagnostic response. The published FVD test interval is less than **2 ms per tes
• Input timing test: Verify representative ON-to-OFF and OFF-to-ON response against the documented 2.86 ms time-constant characteristic.
• TMR communication test: Confirm successful communication through all three I/O processing paths using the authorized Tri-GP test configuration.
• Hot-spare verification: Where applicable, test the module as the standby member of an I/O set and verify controlled takeover using the approved maintenance procedure.
• Extended stability test: Operate the module under representative 24 VDC input conditions while monitoring diagnostic status, channel stability, and controller communications.
• Final QC record: Retain identification photographs, hardware revision, baseplate reference, all-channel test results, threshold measurements, diagnostic results, TMR communication results, and final QC approval.

The TRICONEX 3301S2 is a 32-point commoned 24 VDC digital input module for the Tri-GP architecture. Its critical replacement attributes are the 24 VDC field interface, 19.2–30 VDC operating range, 15–30 VDC logic-high region, triplicated I/O processing, FVD diagnostics, hot-spare support, and compatibility with the correct Tri-GP baseplate. The 3301S2 should not be confused with the faster 3311S2 high-resolution DI module or with unrelated Tricon processor and communication modu
