TRICONEX 3504EC1 | Tricon TMR 64 Point Digital Input Module

Description

• Brand: TRICONEX / Invensys
• Full Model Number: 3504EC1
• System/Series Family: Tricon v9–v11
• One-Sentence Core Function: 64-point high-density TMR digital input module for 24 VDC or 48 VDC field signals
• Top 3 Hardcore Specs: 64 commoned DC-coupled points; 20–36 VDC or 40–72 VDC input range; <10 ms input delay
• Stock Status: Stock condition and conformal-coating revision to be confirmed

Module 3: Technical Product Introduction

When a legacy Tricon rack loses a high-density digital input module, the impact can extend across dozens of field indications at once. TRICONEX 3504EC1 is the conformally coated 3504E high-density TMR digital input variant for Tricon v9–v11 systems, providing 64 commoned, DC-coupled input points. Its three independent channels process the incoming field data separately, after which the Main Processors perform the required voting. The module also includes continuous channel diagnostics and supports the Tricon hot-spare architecture. Tricon documentation identifies 3504EC1 specifically as the 24/48 VDC version within the conformal-coating model list.

The 3504E electrical specification applies to this product family: for a 24 VDC configuration, the recommended input range is 20–36 VDC; for 48 VDC operation, it is 40–72 VDC. The input is protected for up to 115 VAC continuous or 150 VDC continuous, while typical Off-to-On thresholds are 15 VDC at 24 V operation and 27 VDC at 48 V operation. Both Off-to-On and On-to-Off input delay are specified at less than 10 ms, logic power is under 10 W, and one status indicator is provided per input point.

Module 4: Application Scenarios & Field Realities

• For large shutdown or permissive cabinets, the 64-point density reduces the number of I/O positions needed for discrete field feedback. Points are commoned rather than individually isolated, so the cabinet’s common-return architecture must be verified before reusing the existing termination arrangement.
• When both 24 VDC and 48 VDC Tricon input applications are supported across a site, the 3504E family can be configured for either nominal voltage through the TriStation application. Before installing a spare, verify the configured voltage in the project rather than assuming that the field supply voltage alone determines the setting.
• On compressor, turbine, and process-unit status circuits, 64 channels can collect motor running, trip, breaker, valve-position, permissive, and alarm contacts in a compact footprint. The less-than-10-ms input delay is adequate for many equipment-status applications, but application timing should still be checked against the approved cause-and-effect design.
• During maintenance in contaminated industrial environments, the C1 suffix has practical significance. Tricon documentation separately lists 3504EC1 in its conformally coated I/O model set, distinguishing it from the standard 3504E reference. Match the environmental coating requirement when maintaining a cabinet designed around conformally coated electronics.

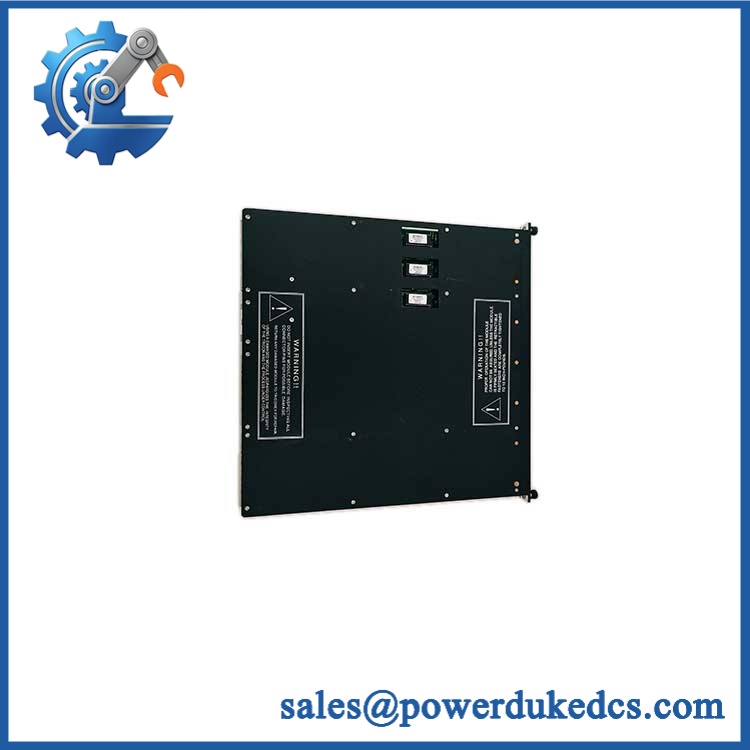

TRICONEX 3504EC1

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Drop-in Replacement Within the Matching Tricon 3504E/EC1 Configuration

A like-for-like 3504EC1 replacement is appropriate when the installed Tricon v9–v11 system uses the same high-density 3504E input architecture and the replacement matches the required hardware and conformal-coating configuration. Tricon planning documentation explicitly lists 3504EC1 as a DI module, 24/48 VDC, while the base 3504E specification defines the module as a 64-point high-density TMR digital input assembly.

3504EC1 → 3504E: Configuration and environmental compatibility review required. The electrical function is from the same 3504E family, but EC1 identifies the conformally coated variant. For cabinets with specified conformal-coating requirements, preserve the EC1 configuration rather than automatically substituting a standard 3504E.

3504EC1 → 3503EC1: Hardware Modification Required. 3503EC1 is a 32-point, 24 VAC/VDC input module, whereas 3504EC1 is a 64-point high-density 24/48 VDC DC-coupled module. Channel count, voltage configuration, and field termination differ materially.

3504EC1 → 3505EC1: Hardware Modification Required. 3505EC1 is a 32-point, 24 VDC low-threshold digital input module and is not an equivalent substitute for the 64-point 3504EC1.

⚠️ Field Traps — Watch Out

1. 24 VDC versus 48 VDC configuration: The 3504E family supports both nominal field voltages, with the TriStation configuration specifying 24 or 48 VDC. The associated switching thresholds are different, so do not substitute a module into a live circuit without confirming the project configuration.

2. Commoned input architecture: The 64 inputs are commoned and DC-coupled. They are not 64 independently galvanically isolated field circuits. Review the field commoning and external termination arrangement before applying power.

3. Diagnostic glitch: The published specification identifies a 1 ms diagnostic glitch approximately every 2–3 seconds. Where an input is paralleled with another monitoring system, verify that the diagnostic test signal cannot be interpreted as a genuine field-state transition.

4. EC1 environmental requirement: The C1 suffix is associated with conformally coated Tricon equipment. A standard 3504E may reproduce the electrical function while failing the environmental or procurement requirement for a conformally coated cabinet.

Module 6: Quality Assurance SOP

Each TRICONEX 3504EC1 should undergo identification, electrical, diagnostic, and TMR verification before shipment.

• OEM identification visual inspection: Verify TRICONEX / Invensys markings, 3504EC1 designation, serial number, hardware revision, dark-red identification, connector condition, and C1 conformal-coating characteristics.
• Configuration verification: Record whether the customer’s application is configured for 24 VDC or 48 VDC and confirm that the replacement is intended for the same TriStation configuration.
• Mechanical inspection: Examine the housing, connector interfaces, ejectors, PCB assembly, coating condition, mounting surfaces, and visible components for impact, corrosion, contamination, or evidence of repair.
• Power verification: Install the module in an approved Tricon v9–v11 test chassis and verify the applicable field-supply condition. For 24 VDC, test within 20–36 VDC; for 48 VDC, test within 40–72 VDC.
• Power-on self-test (POST): Confirm expected Pass, Fault, and Active module indications during initialization.
• 64-channel input test: Exercise each of the 64 input points independently using controlled 24 VDC or 48 VDC test signals, according to the configured mode.
• Threshold verification: For 24 VDC operation, verify representative Off-to-On and On-to-Off behavior around the documented 15/8 VDC typical thresholds. For 48 VDC operation, verify representative behavior around the 27/14 VDC typical thresholds.
• Response-time verification: Confirm representative Off-to-On and On-to-Off response within the documented <10 ms specification under the approved laboratory conditions.
• Diagnostic verification: Exercise the approved input diagnostic procedure and confirm expected stuck-On/stuck-Off detection behavior. The 3504E architecture continuously checks the ability to detect state transitions.
• TMR communication test: Verify all three independent I/O processing paths and successful data transfer to the Tricon Main Processors using the authorized test configuration.
• Hot-spare verification: Where required, install the unit as a standby module and verify the approved hot-spare replacement and status-reporting behavior.
• Field-isolation check: Verify the applicable field-to-logic isolation performance using the authorized Tricon test procedure rather than applying an uncontrolled high-voltage test to the assembled system.
• Extended stability test: Operate representative inputs continuously while monitoring module diagnostics, channel status, TMR communications, and supply stability.
• Final QC record: Retain complete 3504EC1 identification photographs, hardware revision, coating verification, voltage configuration, all-channel test results, threshold measurements, diagnostic results, TMR communication results, and final QC approval.

The TRICONEX 3504EC1 is the conformally coated 3504E-family high-density TMR digital input module, providing 64 commoned DC-coupled points for 24 VDC or 48 VDC operation. The decisive replacement attributes are the 3504E electrical architecture, configured field voltage, 64-point channel layout, high-density diagnostic behavior, correct Tricon v9–v11 chassis/termination arrangement, and the EC1 conformal-coating variant. Tricon documentation explicitly lists 3504EC1 as a 24/48 VDC DI module and separately identifies the 3504E family as a 64-point high-density TMR input.
