WESTINGHOUSE 1C31234G01 | New Surplus Ovation I/O Module

2. At-A-Glance Executive Brief

Model: WESTINGHOUSE 1C31234G01
Brand: WESTINGHOUSE (now supported within Emerson Ovation product ecosystem)
Series/System: Ovation™ Distributed Control System (DCS)
Part Type: Compact Contact Input Electronics Module (Digital Input Module)
Core Function: Captures field dry-contact or wet-contact status signals and transfers discrete states into the Ovation controller logic system.
Key Specs:
- 16-channel digital/contact input design
- 48 VDC on-card auxiliary wetting supply
- Compact Ovation I/O architecture
- Designed for power generation and industrial process control applications
- CE Mark certified system application support

3. Product Introduction

A turbine trip signal remains unresolved because the control system cannot detect a field contact change. In this type of plant event, the WESTINGHOUSE 1C31234G01 becomes a key troubleshooting target because it handles the transition between physical field contacts and Ovation DCS logic. The module is installed in an Ovation I/O subsystem and provides 16 discrete input channels for monitoring switches, relays, alarms, and equipment status signals.

Mounted on the Ovation I/O base architecture, the 1C31234G01 provides onboard auxiliary power for 48 VDC contact input circuits (—which reduces external field power wiring requirements in many cabinet designs). Verify the installed I/O base, wiring configuration, and module revision before replacement. A similar-looking digital input card may not support the same contact voltage arrangement or diagnostics.

4. Core Technical Specifications

Parameter	Value
Manufacturer	WESTINGHOUSE / Emerson Ovation
Model Number	1C31234G01
Product Type	Compact Contact Input Electronics Module
System Platform	Ovation DCS
Input Channels	16 digital contact inputs
Input Type	Dry contact / wet contact compatible
Auxiliary Field Supply	48 VDC on-card wetting supply
Contact Input Current	Approx. 4–8 mA closed contact current
Propagation Delay	Maximum approximately 7 ms
Contact Bounce Rejection	Rejects changes below 3 ms; accepts changes above 7 ms
Isolation	Channel-to-logic dielectric isolation up to 1000 VAC/DC
Diagnostics	Internal module fault monitoring, ground fault detection
Module Power	Approx. 4.56 W typical / 4.75 W maximum
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	0–95% RH, non-condensing
Mounting	Ovation I/O Base Unit
Application	Power generation and industrial DCS control

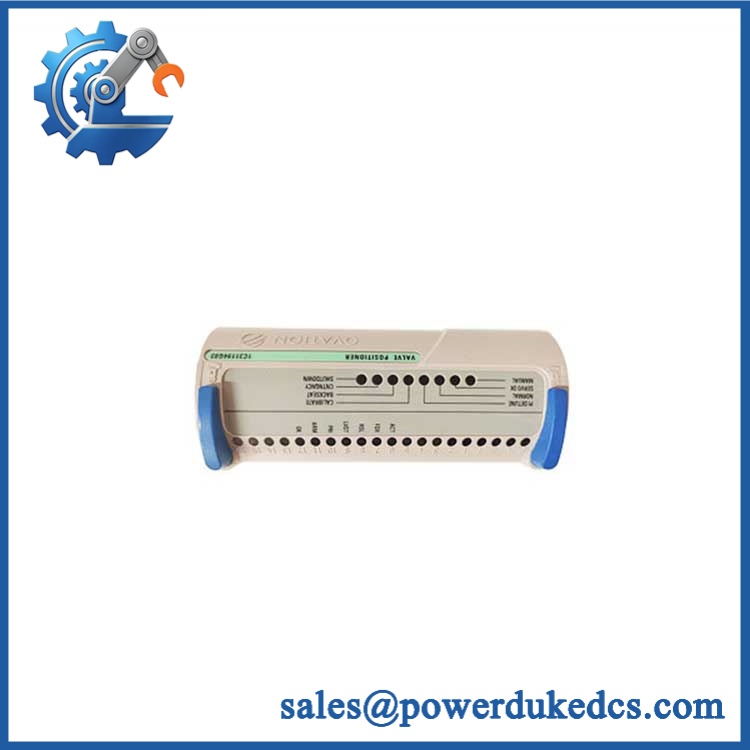

WESTINGHOUSE 1C31234G01

5. Application Scenarios & Pain Points

A failed contact input module can create false equipment status indications or hide critical alarms. The 1C31234G01 is commonly maintained as a spare in facilities where discrete feedback signals are tied directly to operational decisions.

Coal, gas, and combined-cycle power plants: Used for breaker status, valve limit switches, pump feedback, and turbine auxiliary monitoring.
Water treatment facilities: Handles motor starter feedback and equipment running/fault contacts across distributed control panels.
Industrial process plants: Monitors interlocks and permissive signals where reliable discrete acquisition is required.
Generator systems: Supports alarm and protection-related contact monitoring.
Legacy Ovation migration projects: Helps maintain existing installed bases without immediate cabinet replacement.

In a power station cabinet operating continuously near 50°C ambient conditions, degraded contact interfaces or aging I/O hardware can increase troubleshooting time during planned outages.

6. ? Common Error Codes & Diagnostic Symptoms

Symptom/Code: Input channel remains OFF despite confirmed field contact closure
→ Diagnosis: Possible failed input channel circuit, damaged field wiring interface, or internal module fault.
→ Action: Verify field voltage and replace 1C31234G01 if module failure is confirmed.

Symptom/Code: Module fault indication / I/O diagnostic alarm active
→ Diagnosis: Internal electronics fault, communication issue with the Ovation I/O base, or power supply abnormality.
→ Action: Check base connection and cabinet power, then replace module.

Symptom/Code: Multiple channels reporting incorrect states simultaneously
→ Diagnosis: Possible auxiliary wetting supply failure or module-level hardware degradation.
→ Action: Replace module after confirming external wiring condition.

7. Cross-Reference & Lifecycle Migration

Related Identification:
- Westinghouse 1C31234G01 is part of the Emerson Ovation DCS hardware family.
- Current documentation commonly identifies the module as an Ovation Compact Contact Input Module.
Replacement Considerations:
- Verify:
  - Ovation software version
  - I/O base type
  - Module revision
  - Field wiring arrangement
Firmware / Configuration:
- This module is not typically configured like a standalone PLC CPU.
- I/O database configuration verification may be required after replacement.
Lifecycle Status:
- Status: Legacy / Support Dependent
- Existing Ovation installations should maintain tested spare inventory because long-running power generation assets often remain operational beyond original hardware availability cycles.

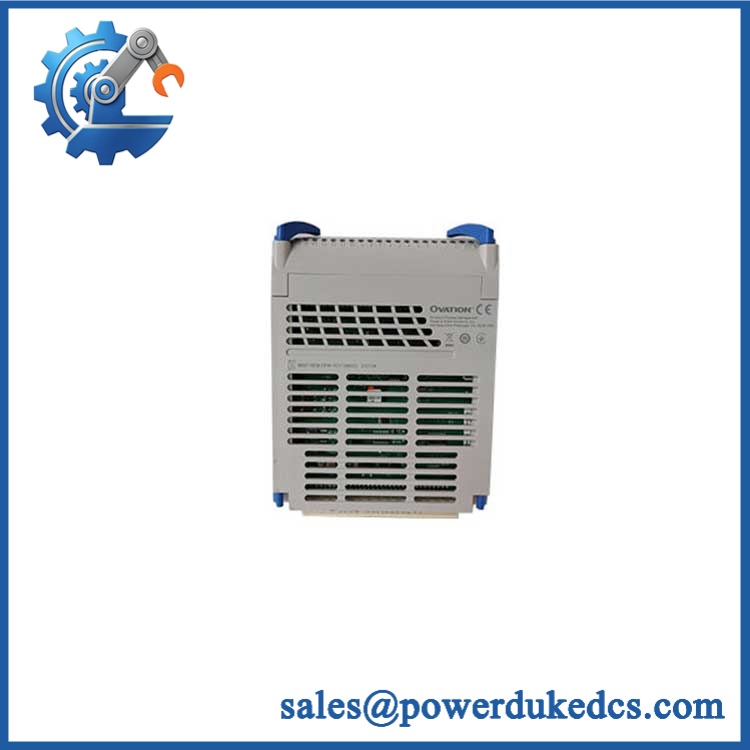

  WESTINGHOUSE 1C31234G01

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not remove the module before recording channel assignments.
Digital input channels are often tied to plant drawings, alarm logic, and interlock documentation. A replacement without channel verification can create unnecessary commissioning delays.
Inspect the I/O base connector before replacing the module.
A damaged backplane connection can mimic a failed electronics module. Check seating pressure, connector condition, and cabinet contamination first.

9. Strict QA & Testing SOP

A controlled inspection process for WESTINGHOUSE 1C31234G01 should include:

Step 1 — Incoming Inspection

Verify manufacturer marking and complete part number.
Record serial number and hardware revision.
Check enclosure condition and connector integrity.

Step 2 — Electrical Inspection

Verify module power consumption.
Confirm auxiliary 48 VDC wetting supply operation.
Check input channel response.

Step 3 — Functional Test

Install on a compatible Ovation test rack.
Apply simulated contact signals.
Verify all 16 input channels.
Confirm diagnostic reporting.

Step 4 — Documentation Review

Record test results.
Photograph module condition.
Maintain traceability records.

Step 5 — Packaging Control

Use anti-static shielding packaging.
Add shock protection for international shipment.
Protect connector surfaces.

Test videos are available for selected inspected units.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the 1C31234G01 be hot-swapped during plant operation?

A: Confirm the specific Ovation system configuration first. Some Ovation I/O architectures support online replacement procedures, but plant operating procedures should always be followed before removing an active module.

Q: How do I confirm this is an original WESTINGHOUSE/Ovation module?

A: Check the module label, part number, hardware revision, packaging condition, and supplier traceability records. Emerson factory-certified replacement channels use documented inspection procedures.

Q: Does this module require firmware loading after installation?

A: Typically, the module operates as an Ovation I/O electronics module rather than a programmable CPU. Verify I/O database configuration and system compatibility after installation.

Q: What warranty options are available for this spare?

A: Warranty depends on the supply condition: new original, factory-certified, unused surplus, refurbished, or tested spare. Confirm the inspection report and coverage period before purchase.
