Description

1. WESTINGHOUSE 5X00241G02 | Factory Tested DCS Rack Module

2. At-A-Glance Executive Brief

• Model: WESTINGHOUSE 5X00241G02
• Brand: Westinghouse / Ovation (Emerson Process Management)
• Series: Ovation Distributed Control System (DCS)
• Part Type: Processor Module / Controller Module
• Core Function: Executes control logic and manages communication between Ovation system components, I/O modules, and operator interfaces.
• Key Specs:
  • Designed for Ovation power generation control platforms.
  • Rack-mounted processor hardware.
  • Supports industrial process control applications.
  • Used in legacy Ovation system maintenance and replacement programs.

3. Product Introduction

Structure B — Technical Direct

Installed within the Westinghouse Ovation DCS rack architecture, the 5X00241G02 functions as a processor module responsible for executing application programs, coordinating control tasks, and exchanging data with connected Ovation system components. The module serves as a central processing element for distributed control applications, particularly in power generation environments.

In field deployments, these processor modules remain active in long-service Ovation installations where plant operators require continuity without a full control system migration (—especially for turbine, boiler, and balance-of-plant systems). Verify firmware revision, database compatibility, and controller configuration before installation. A replacement processor with the correct part number may still require application synchronization before returning to service.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Westinghouse / Emerson Ovation
Model Number	5X00241G02
Product Type	Processor Module
System Platform	Ovation DCS
Application	Power plant distributed control
Module Function	Control processing and system communication
Mounting Method	Ovation rack chassis
Processor Type	Embedded industrial processor
Memory	Integrated processor memory (commonly referenced as 128 MB configuration)
Communication	Ovation network interfaces (system dependent)
Power Supply	24 VDC nominal system supply
Operating Temperature	Approx. 0°C to 50°C
Storage Temperature	Approx. -40°C to 70°C
Weight	Approx. 0.3–0.8 kg depending on packaging configuration
Diagnostic Support	Controller status monitoring and system diagnostics
Configuration Method	Ovation engineering tools

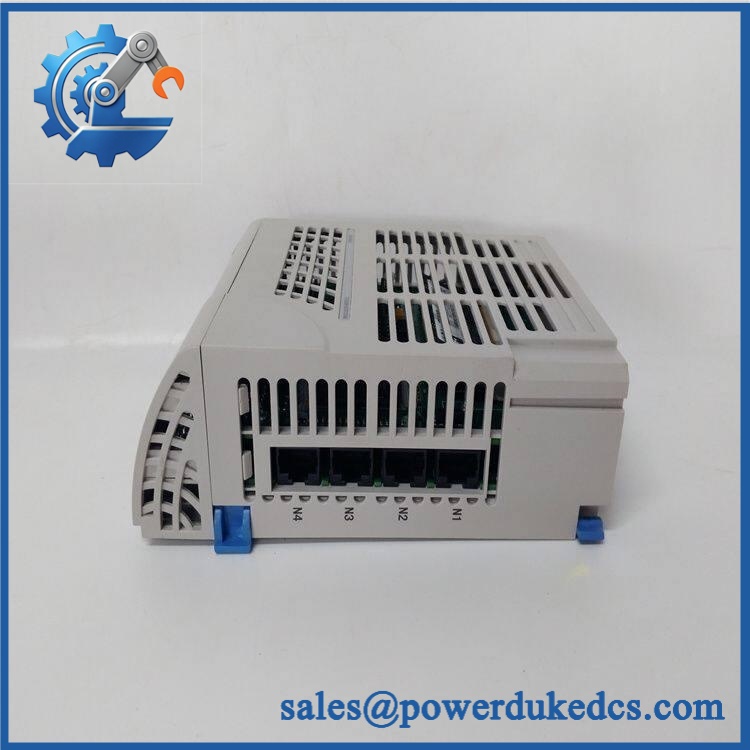

WESTINGHOUSE 5X00241G02

5. Application Scenarios & Pain Points

With vs. without comparison:

Without a functioning 5X00241G02 processor module, Ovation control nodes may lose execution capability, interrupting critical automation functions. With a verified replacement, plants can restore controller operation while preserving existing engineering databases.

• Coal and Gas Power Plants: Used in turbine, boiler, and auxiliary control systems where continuous operation is required.
• Hydroelectric Facilities: Supports long-life Ovation installations where legacy migration must be carefully managed.
• Industrial Power Generation: Maintains controller availability for generator and balance-of-plant systems.
• Water Treatment Facilities: Used in process automation environments requiring distributed control execution.
• Retrofit Projects: Helps extend the service life of existing Ovation platforms without immediate full replacement.

During cabinet inspections, pay attention to thermal conditions. Processor modules operating continuously in cabinets above 50°C ambient temperature may experience reduced electronic component lifespan.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Processor Fault LED / Controller Not Running
→ Diagnosis: Internal processor failure, corrupted application memory, or hardware watchdog fault may prevent normal execution.
→ Action: Verify controller diagnostics and replace the 5X00241G02 module.

Symptom/Code: Communication Failure / Node Offline Alarm
→ Diagnosis: Possible network interface failure, incorrect configuration, or processor communication hardware fault.
→ Action: Check network parameters and replace module if communication hardware is defective.

Symptom/Code: Application Not Loaded / Database Mismatch
→ Diagnosis: Replacement hardware may not contain the correct Ovation application configuration.
→ Action: Reload approved application files and verify controller operation.

7. Cross-Reference & Lifecycle Migration

• Platform Compatibility: Designed for Westinghouse Ovation DCS systems.
• Alternate Identification: Commonly referenced as an Ovation Processor Module and associated with Emerson Ovation control platforms.
• Firmware Requirement: Application firmware, database files, and controller configuration may need restoration after replacement.
• Previous Revisions: Confirm exact hardware revision before replacing earlier Ovation processor generations.
• Lifecycle Status: Legacy / Limited Availability

For spare inventory planning, maintain documented backups of controller software, firmware revision, and rack configuration. A processor module without matching application data is only a partial replacement solution.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not install a replacement processor without comparing firmware and database versions.
   A clean hardware swap can still result in a controller fault if the application image does not match the existing Ovation node.
2. Protect the rack connector during handling.
   The rear connector assembly must remain free from dust, oxidation, and electrostatic discharge. Never touch contact surfaces directly.

9. Strict QA & Testing SOP

A professional inspection process for WESTINGHOUSE 5X00241G02 should include:

Step 1 — Incoming Inspection

• Verify model marking: 5X00241G02.
• Record serial number and hardware revision.
• Inspect housing, labels, connector condition, and mounting guides.
• Photograph received condition.

Step 2 — Electrical Verification

• Confirm power input behavior.
• Check startup sequence.
• Verify diagnostic indicators.

Step 3 — Functional Test

• Install in a compatible Ovation test rack.
• Verify processor initialization.
• Confirm communication with engineering workstation.
• Test controller status monitoring.

Step 4 — Configuration Verification

• Compare firmware revision.
• Verify application compatibility.
• Confirm database loading procedure.

Step 5 — Packaging Control

• Place tested module in ESD shielding packaging.
• Add shock protection for international shipment.
• Attach inspection report.

Test videos, diagnostic records, and inspection photos are available for quality verification.

10. Buyer’s FAQ (Dynamic Q&A)

Q1. Can the WESTINGHOUSE 5X00241G02 be hot-swapped?

A: Hot replacement depends on the Ovation rack design and plant maintenance procedure. For processor modules, controlled shutdown and backup verification are normally required before removal.

Q2. “How do I verify this is a New Original 5X00241G02?”

A: Check OEM labels, part number marking, serial traceability, packaging condition, and inspection documentation. New Original, New Surplus, and refurbished units should be clearly identified.

Q3. Does the module arrive with the latest Ovation software installed?

A: The processor hardware does not replace the complete engineering database. Application software, configuration files, and controller settings must match the installed Ovation system.

Q4. What warranty should I request for this legacy DCS processor?

A: Request written warranty terms, functional test records, and return conditions. For long-service Ovation systems, documented testing is important because replacement availability can be limited.
