WESTINGHOUSE 5X00062G01 | New Surplus 8-Channel Analog Output Card Available

At-A-Glance Executive Brief

Model: WESTINGHOUSE 5X00062G01
Brand: Westinghouse / Emerson
Series: Ovation DCS I/O System
Part Type: HART Analog Output Module
Core Function: Converts Ovation controller commands into field-level 4-20 mA output signals while maintaining HART digital communication capability.
Key Specs: 8 multiplexed analog output channels, HART protocol support, 4-20 mA current loop interface, Ovation DCS compatibility.
Typical Use: Power generation control systems, process automation cabinets, and legacy Ovation DCS installations.

Product Introduction

A failed analog output card inside a power plant DCS cabinet can immediately affect valve positioning, actuator commands, and process regulation loops. The WESTINGHOUSE 5X00062G01 is an Ovation HART Analog Output Module designed to provide reliable communication between the control system and intelligent field devices.

Installed within the Ovation distributed control system architecture, this module provides eight output channels for HART-compatible devices. Each channel supports standard 4-20 mA control signals while allowing digital HART data exchange over the same wiring path (a common requirement for smart positioners, transmitters, and process control equipment).

Core Technical Specifications

Parameter	Value
Manufacturer	Westinghouse / Emerson
Model Number	5X00062G01
System Platform	Ovation DCS
Module Type	HART Analog Output Module
Channel Count	8 Output Channels
Output Signal	4-20 mA
Communication Protocol	HART
Field Device Support	HART-Compatible Output Devices
Module Function	Analog Output Interface
Architecture	Ovation I/O System
Application	Process Control and Power Automation
Replacement Category	DCS Spare / Legacy Support

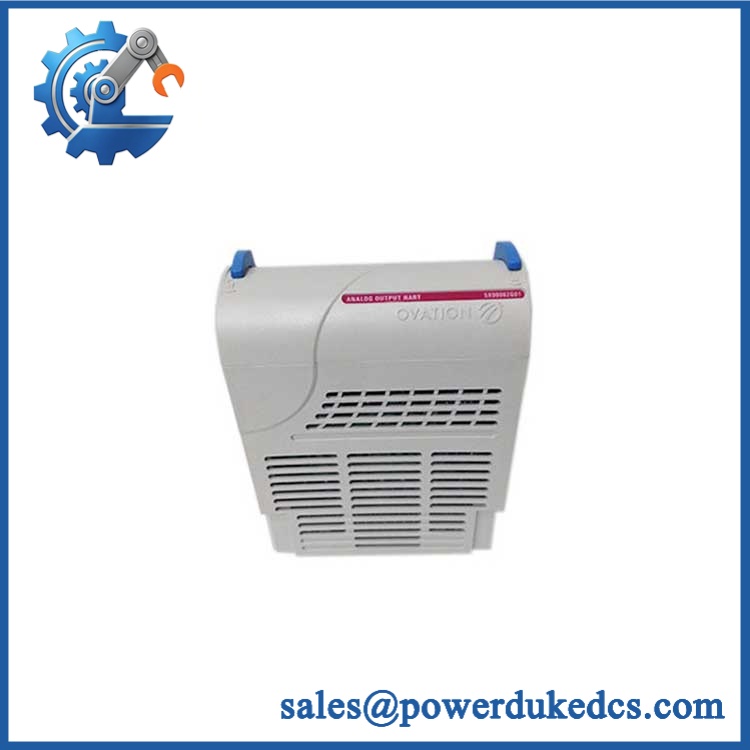

WESTINGHOUSE 5X00062G01

Application Scenarios & Pain Points

During a turbine load-control maintenance event, engineers may replace a failed analog output module to restore communication with hydraulic valves, actuators, or other field devices.

In fossil and nuclear power facilities, the 5X00062G01 supports Ovation systems that require stable analog output channels for continuous process regulation.

For water treatment and industrial process plants, HART capability allows operators to access additional field device information without installing separate communication wiring.

With a functioning output module, control commands reach field equipment through calibrated 4-20 mA loops. Without it, connected actuators may remain at their last state or generate control alarms.

At control rooms operating with 50°C+ cabinet environments, technicians should inspect cooling conditions because elevated temperatures can accelerate aging of electronic components.

? Common Error Codes & Diagnostic Symptoms

Symptom/Code: Channel Output Stuck at 0 mA or 4 mA
→ Diagnosis: Output channel circuitry failure, blown field-side protection, or internal module fault may prevent correct current generation.
→ Action: Replace module and verify loop current output.

Symptom/Code: HART Communication Lost / Field Device Offline Alarm
→ Diagnosis: HART interface failure or analog channel communication issue may interrupt digital field device communication.
→ Action: Check wiring and replace module if communication hardware failure is confirmed.

Symptom/Code: Multiple Analog Outputs Fail Simultaneously
→ Diagnosis: Module power supply, internal processing circuitry, or backplane communication fault may affect several channels.
→ Action: Replace module and perform I/O verification.

Cross-Reference & Lifecycle Migration

Original Part Number: WESTINGHOUSE 5X00062G01
Current Association: Emerson Ovation DCS platform. The Ovation system continued from Westinghouse process control technology.
Compatible Function: HART Analog Output Module with eight 4-20 mA output channels.
Replacement Notes: Confirm module revision, Ovation software version, and I/O database configuration before replacement.
Firmware Requirement: No field firmware flashing is typically required; however, system configuration verification may be necessary after installation.
Lifecycle Status: Limited / Legacy
- Limited availability means plants should maintain spare inventory for critical control loops.
- Existing Ovation installations often continue operating for decades, making verified replacement modules important for maintenance planning.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not remove field wiring before recording channel assignments.
On multi-channel analog output cards, incorrect channel mapping can cause valves or actuators to receive the wrong control signal after replacement.
Check the personality module relationship before installation.
The 5X00062G01 electronics module works with the associated Ovation I/O hardware arrangement. Confirm the matching configuration before powering the rack.

Strict QA & Testing SOP

A controlled inspection procedure for the WESTINGHOUSE 5X00062G01 includes:

Inbound Verification
- Confirm model number, manufacturer marking, and module identification.
- Check connectors, housing, and circuit board condition.
Visual Inspection
- Inspect for corrosion, contamination, damaged pins, or overheating marks.
- Verify label condition and hardware integrity.
Power-Up Testing
- Install the module in a compatible Ovation test rack.
- Confirm startup indicators and communication status.
Analog Output Testing
- Verify all eight output channels.
- Test 4-20 mA signal generation across operating ranges.
HART Communication Testing
- Connect HART-compatible simulation equipment.
- Confirm digital communication exchange.
Final Packaging
- Apply anti-static protection.
- Use shock-resistant packaging for international transportation.
