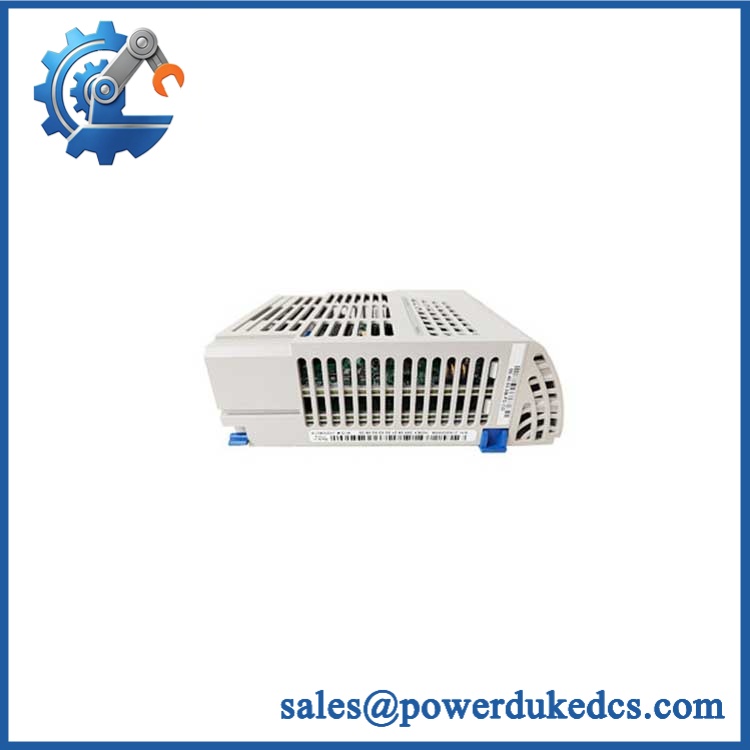

1. WESTINGHOUSE 5X00481G04 | OEM Power Plant Automation Module

2. At-A-Glance Executive Brief

• Model: WESTINGHOUSE 5X00481G04
• Brand: WESTINGHOUSE (now associated with Emerson Ovation control platforms)
• Series: WDPF / Ovation DCS
• Part Type: Controller / Processor Module
• Core Function: Provides processing capability for distributed control applications, handling control logic execution, communication management, and system diagnostics within Ovation-based architectures.
• Primary Use: Power generation DCS systems, turbine control applications, and legacy Westinghouse automation installations.
• Key Specifications:
  • Ovation DCS-compatible processor hardware
  • Plug-in rack module design
  • Industrial control cabinet installation
  • Designed for legacy system maintenance and replacement programs
• Typical Deployment: Power plants, turbine control rooms, and process automation cabinets.

3. Product Introduction

Inside a Westinghouse WDPF or Emerson Ovation control cabinet, the 5X00481G04 functions as a processor-level automation module responsible for executing control tasks and maintaining communication between system components. This hardware belongs to a generation of DCS equipment commonly maintained in long-life power generation assets where complete platform replacement is often impractical.

In field deployments, engineers usually treat this module as a critical spare because processor failures can create extended plant downtime. Before replacement, verify rack position, software revision, application database compatibility, and communication configuration. A physically identical module may still require engineering validation before returning the controller node to service.

4. Core Technical Specifications

Parameter	Value
Manufacturer	WESTINGHOUSE
Model Number	5X00481G04
System Platform	WDPF / Emerson Ovation DCS
Module Type	Processor / Controller Module
Application	Distributed Control System
Installation Method	Rack-mounted plug-in module
Backplane Interface	Ovation/WDPF rack interface
Processor Function	Control logic execution and system communication
Configuration Method	DCS engineering workstation
Power Source	Rack backplane supply
Operating Temperature	Approx. 0°C to 55°C (cabinet dependent)
Storage Temperature	Approx. -25°C to 70°C
Relative Humidity	5% to 95%, non-condensing
Protection Level	Indoor industrial cabinet environment
Weight	Approx. 0.4–1 kg depending on configuration

WESTINGHOUSE 5X00481G04

5. Application Scenarios & Pain Points

A failed DCS processor module can interrupt control execution even when field instruments and I/O hardware remain operational.

• Thermal power plants: Used within turbine and boiler control architectures where continuous controller availability is required for generation stability.
• Legacy Westinghouse WDPF installations: During modernization programs, replacement processor modules help extend the operational life of existing automation systems.
• Steam turbine control systems: Processor availability directly affects sequencing, monitoring, and protective control functions.
• Large industrial facilities: Existing Ovation-based systems often remain in operation for decades, making spare processor inventory important.
• Maintenance shutdown projects: Engineers commonly replace aging processor hardware during scheduled outages lasting only a few days.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Controller Node Offline / Communication Loss
→ Diagnosis: Processor module failure, backplane communication fault, or corrupted configuration may prevent the controller from joining the DCS network.
→ Action: Verify rack communication and replace the 5X00481G04 module.

Symptom/Code: Processor Fault LED / Controller Failure Alarm
→ Diagnosis: Internal processor hardware, memory, or diagnostic subsystem failure detected by the DCS.
→ Action: Remove the failed module and install a verified replacement.

Symptom/Code: Application Not Running After Startup
→ Diagnosis: Software image mismatch, configuration corruption, or incompatible hardware revision.
→ Action: Reload approved application files and confirm module compatibility.

7. Cross-Reference & Lifecycle Migration

• Related Platform: Westinghouse WDPF and Emerson Ovation DCS environments.
• Replacement Consideration: Confirm exact hardware revision, rack compatibility, and application software version before installation.
• Firmware Requirements: Processor modules may require approved system software loading or configuration restoration after replacement.
• Migration Path: Many plants migrate from older WDPF hardware toward Emerson Ovation controller generations while retaining field wiring and cabinet infrastructure.
• Lifecycle Status: Legacy / Limited Availability
  • Suitable for existing installed systems.
  • Recommended inventory strategy: maintain tested spare units for critical control cabinets.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace the processor before capturing the running configuration.
   A new processor card can initialize correctly but fail to control the plant if the application database, node address, or software image is missing.
2. Inspect the rack connector before insertion.
   Dust, oxidation, or damaged backplane contacts can imitate processor failure (especially in older control rooms where cabinets have operated for decades).

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify model marking: WESTINGHOUSE 5X00481G04.
• Record serial number and hardware revision.
• Inspect front panel indicators, PCB condition, and connector pins.
• Photograph module condition.

Step 2 — Electrical Testing

• Apply controlled rack power.
• Verify startup sequence.
• Check diagnostic LEDs.
• Confirm stable power consumption.

Step 3 — Communication Testing

• Install into compatible test rack.
• Verify DCS communication.
• Confirm processor recognition.
• Check network stability.

Step 4 — Functional Testing

• Load approved test configuration.
• Verify processor execution.
• Check diagnostic functions.
• Monitor continuous operation.

Step 5 — Packaging Control

• Place module inside anti-static packaging.
• Protect rack connectors.
• Add shock protection for international transport.

Test videos are available for verified inspection records.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the WESTINGHOUSE 5X00481G04 be hot-swapped during plant operation?

A: Do not assume hot replacement is permitted. Processor modules are central DCS components, and removal may interrupt control execution. Follow the approved plant maintenance procedure.

Q: How can I confirm this is a New Original 5X00481G04?

A: Check the OEM identification label, serial number, hardware revision, packaging condition, and functional test documentation. A tested spare should include traceable inspection records.

Q: Will this module run immediately after installation?

A: Not always. The processor may require software loading, database restoration, node configuration, or system synchronization before returning to operation.

Q: What warranty details should be confirmed before purchase?

A: Confirm warranty period, test coverage, replacement terms, and whether transit damage is included. For legacy DCS hardware, documented testing is an important purchasing requirement.
