Description

Westinghouse 5X00121G01 | Power Plant Automation Module

2. At-A-Glance Executive Brief

Model: Westinghouse 5X00121G01
Series: WDPF (Westinghouse Distributed Process Family) / Ovation DCS Compatible Platform
Part Type: DCS I/O Module
Core Function: Provides field signal interface capability between plant instrumentation and the distributed control system.
Key Specifications:
- Designed for process control applications in power generation and industrial facilities.
- Supports multi-channel field signal acquisition.
- Rack-mounted industrial automation module.
- Used in legacy Westinghouse WDPF systems and related Emerson Ovation environments.
Typical Procurement Category: Legacy DCS spare, power plant control replacement module, process automation inventory asset.

3. Product Introduction

Within a Westinghouse WDPF control cabinet, the 5X00121G01 functions as an interface point between field instrumentation and the DCS processing layer. When this module fails, operators may experience missing process values, invalid channel readings, or control loops entering abnormal states. In field deployments, technicians usually review transmitter wiring, terminal connections, and controller diagnostics together because signal problems are not always caused by the I/O hardware itself.

The 5X00121G01 belongs to the Westinghouse distributed process control hardware family and is associated with legacy power-generation automation platforms. It has been referenced in WDPF and Emerson Ovation-related applications, making correct hardware identification important during lifecycle support projects. Plants maintaining older DCS installations typically manage these modules as controlled spare assets rather than standard inventory items.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Westinghouse
Model Number	5X00121G01
Product Family	WDPF / Ovation DCS Platform
Module Type	DCS I/O Interface Module
Application	Process monitoring and control
Signal Type	Configuration dependent
Channel Count	8-channel class (application dependent)
Input/Output Function	Depends on module configuration
Mounting Type	DCS rack installation
Communication Interface	WDPF/Ovation internal I/O bus
Operating Temperature	Approx. 0°C to 55°C
Storage Temperature	Approx. -25°C to 70°C
Humidity	5–95% RH non-condensing
Installation Environment	Industrial control cabinet
Weight	Verify exact hardware revision

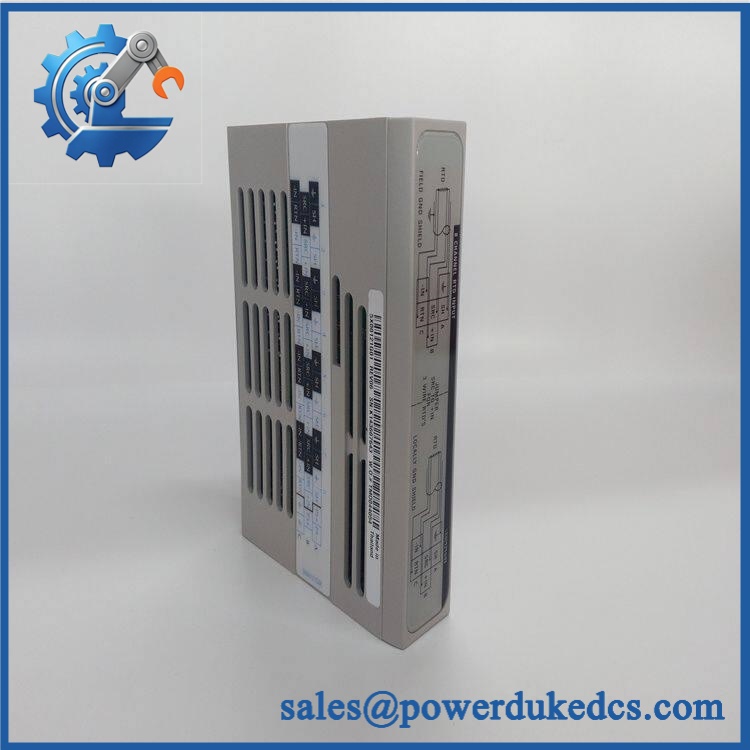

Westinghouse 5X00121G01

5. Application Scenarios & Pain Points

At a fossil power station running legacy controls, the 5X00121G01 may support continued operation of existing DCS cabinets where complete system replacement is not economically practical.

For boiler and turbine monitoring applications, stable I/O communication is required to maintain accurate process values from field transmitters and sensors.

In nuclear and utility environments, spare availability becomes important because aging automation hardware can create extended outage risks when replacement modules are unavailable.

Without a functioning I/O interface module, operators may see incorrect process values, unavailable alarms, or control loops switching to fallback conditions.

With a verified replacement module, maintenance teams can restore existing control architecture without modifying approved cabinet wiring designs.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Channel value frozen or missing process signal
→ Diagnosis: Possible failed input/output circuitry, field wiring issue, or internal module communication fault.
→ Action: Verify field signal first, then replace the 5X00121G01 module.

Symptom/Code: I/O module communication failure / rack fault indication
→ Diagnosis: Possible backplane communication failure, module processor fault, or poor rack connection.
→ Action: Reseat module and replace if communication remains unavailable.

Symptom/Code: Multiple channels abnormal simultaneously
→ Diagnosis: Possible internal module power or logic failure rather than individual field instrument problems.
→ Action: Replace the module after confirming cabinet supply conditions.

7. Cross-Reference & Lifecycle Migration

Compatible Platform: Westinghouse WDPF and related Emerson Ovation DCS environments.
Replacement Consideration:
- Confirm exact module function.
- Verify rack position.
- Match firmware and configuration records.
- Confirm terminal wiring compatibility.
Firmware Requirement: Configuration and software compatibility should be checked through the DCS engineering database before commissioning.
Direct Replacement Status: Must be verified against the installed WDPF/Ovation hardware configuration.
Lifecycle Status: Legacy / Limited Availability.
- Recommended strategy: Maintain tested spare units for critical control cabinets.
- Preserve configuration files and rack documentation with stored hardware.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not replace the module based only on the front label.
Legacy DCS platforms often contain modules with similar physical dimensions but different signal functions.
Inspect the rack connector before installing the replacement.
Oxidized contacts or loose retaining hardware can create the same symptoms as a failed I/O module.
Use ESD protection when handling the board.
Older control modules may contain sensitive components that can be damaged without visible physical marks.

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

Confirm Westinghouse identification label.
Verify complete part number: 5X00121G01.
Record serial number and hardware revision.
Inspect casing, connectors, and PCB condition.

Step 2 — Static Protection Check

Handle only at ESD-controlled workstations.
Verify anti-static packaging.
Protect edge connectors during storage.

Step 3 — Electrical Inspection

Check for visible component damage.
Inspect connector condition.
Verify power-related circuits.

Step 4 — Functional Rig Testing

Install into compatible WDPF/Ovation test hardware.
Verify module communication.
Confirm channel response.
Check diagnostic indicators.

Step 5 — Final Packaging

Apply anti-static protection.
Add shock-resistant packaging.
Attach inspection records.

Test videos are available for verification procedures when required.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the Westinghouse 5X00121G01 be hot-swapped during plant operation?

A: Do not assume hot replacement is permitted. Follow the site maintenance procedure and isolate power unless the specific DCS documentation confirms online replacement capability.

Q: How can I verify a New Original 5X00121G01 module?

A: Check the OEM markings, part number, serial traceability, hardware revision, packaging condition, and supplier inspection documentation.

Q: Will this module include the existing plant configuration?

A: No. The physical module does not contain the complete plant database. Engineering configuration, point assignments, and control logic must come from the DCS application records.

Q: What warranty documentation should be requested before purchase?

A: Request functional test records, inspection photos, storage history if available, and written warranty terms from the supplier.

Procurement Note: The Westinghouse 5X00121G01 should be managed as a controlled legacy DCS spare. Maintain module records, rack location, signal drawings, and software configuration references together to reduce restoration time during forced outages.
