- Woodward 5466-1115 | Original MicroNet Digital Module
2. Unboxing & Physical Snapshot
- Model & Brand: Woodward 5466-1115 MicroNet High Density Speed/Analog I/O Combo Module. This module is part of the MicroNet Digital Control platform and provides speed inputs, analog inputs, and analog outputs for turbine control applications.
- Product Type: High Density Speed / Analog I/O Combo Module.
- Series: Woodward MicroNet Digital Control / MicroNet Plus / MicroNet TMR.
- Primary Application: Steam turbine control systems, 5009FT turbine control platforms, and MicroNet-based industrial control cabinets.
- Accuracy Class: Standard accuracy version, primarily intended for steam turbine applications.
- Physical Dimensions (Approximate W × H × D): Approximately 35 × 260 × 160 mm (1.4 × 10.2 × 6.3 in.) as a rack-mounted MicroNet module.
- Estimated Shipping Weight: Approximately 0.8–1.5 kg (1.8–3.3 lb) including ESD protection packaging.
- Mounting Type: MicroNet chassis slot mounting with dedicated Field Terminal Module (FTM) connections.
- Cooling Method: Cabinet airflow through the MicroNet chassis.
- What’s in the Box:
- Woodward 5466-1115 module
- Backplane connector interface
- Module identification label
- Anti-static shielding bag
- Documentation when supplied
3. Product Introduction
The Woodward 5466-1115 sits inside the MicroNet control chassis where signal accuracy depends on clean power, proper grounding, and reliable backplane connections. Inspect the card-edge connector before installation. Check the retaining clips and FTM cable connections carefully (small contact problems can create unstable speed feedback or analog channel faults in turbine control systems).
This module combines four speed sensor inputs, twelve analog inputs, and four analog outputs within a single MicroNet I/O assembly. The 5466-1115 is the standard-accuracy Speed/Analog I/O Combo version and is primarily used for steam turbine markets; it can replace certain older 5466-253 and 5466-316 modules when the application architecture supports the updated hardware and software requirements.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-1115 |
| Product Family | MicroNet Digital Control |
| Module Type | High Density Speed/Analog I/O Combo |
| Accuracy Class | Standard Accuracy |
| Typical Application | Steam turbine control |
| Speed Sensor Inputs | 4 channels |
| Speed Input Type | Magnetic pickup / proximity probe compatible |
| Speed Input Frequency | 100–25,000 Hz |
| Speed Update Time | 5 ms |
| Analog Inputs | 12 channels |
| Analog Input Range | 0–25 mA or 0–5 V selectable |
| Analog Input Resolution | 16-bit |
| Analog Input Accuracy | 0.1% full scale (software calibrated) |
| Analog Outputs | 4 channels |
| Analog Output Range | 4–20 mA / 0–25 mA |
| Analog Output Resolution | 14-bit |
| Maximum Output Load | 600 ohms |
| Output Accuracy | 0.2% full scale |
| Isolation Voltage | 500 Vrms |
| Operating Temperature | -15°C to +65°C |
| Humidity Rating | 95% RH non-condensing |
| Installation | MicroNet chassis slot |

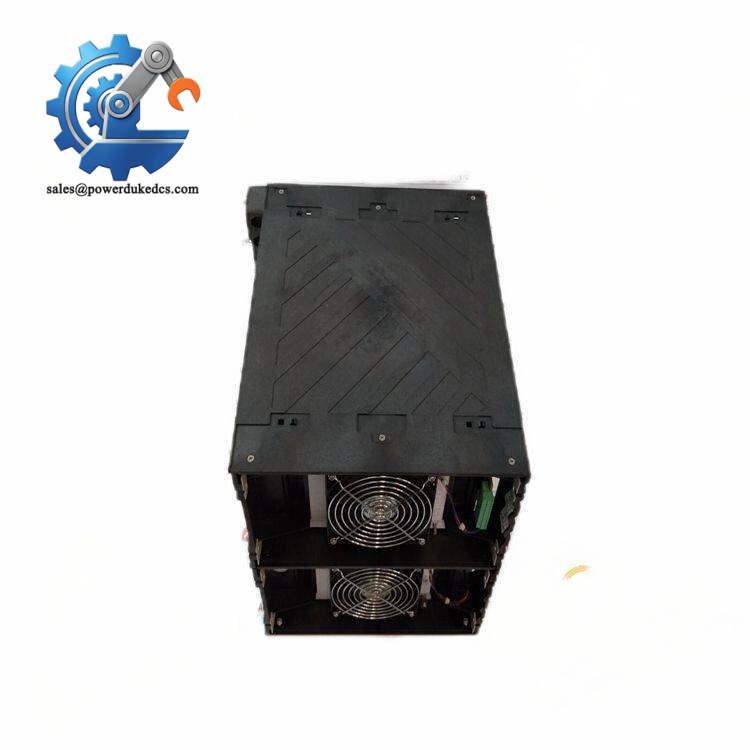

Woodward 5466-1115
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 5466-1115 include:
- CE Mark / EMC Compliance — applicable when installed as part of an approved MicroNet control system.
- CSA Certification — verify according to the exact hardware revision and system configuration.
- UL/cUL Recognition — confirm with OEM documentation for the specific assembly.
- ATEX/IECEx — the module should not be treated as a standalone hazardous-area certified device. Hazardous-area suitability requires a complete certified control installation.
- Marine Approvals (DNV GL / LRS) — may apply to specific MicroNet-based turbine control packages.
For turbine I/O modules, compliance depends on the complete cabinet design, including power supplies, chassis, field wiring, grounding, and enclosure protection.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the Woodward 5466-1115 inside its original anti-static (ESD) shielding bag. The edge connector contacts and analog circuitry require protection from dust, moisture, and electrostatic discharge.
Maintain warehouse humidity below 60% RH where possible. Condensation can accelerate oxidation on connector surfaces and affect long-term analog measurement stability.
Before installation after extended storage:
- Inspect connector pins under proper lighting.
- Check the PCB for contamination or corrosion.
- Verify module part number and revision.
- Confirm compatible FTM hardware and cables.
- Verify MicroNet software/Coder compatibility before commissioning.
Do not store directly on metal shelves without ESD protection.
7. Physical Installation Prerequisites
- Install only in the compatible Woodward MicroNet chassis.
- Remove system power before inserting or removing the module.
- Verify correct slot assignment before installation.
- Confirm FTM model and cable compatibility.
- Maintain cabinet grounding and shielding practices.
- Separate analog signal wiring from high-current switching conductors.
- Ensure adequate cabinet airflow.
- Leave approximately 50 mm clearance around ventilation paths where practical.
- Secure retaining hardware after insertion.
- Confirm signal scaling and channel configuration before startup.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Woodward 5466-1115?
A: Industrial control I/O modules are commonly reviewed under HS 8537 or HS 8538, depending on customs interpretation of whether the item is a complete control apparatus or a component module.
Q: Does Country of Origin (COO) affect importing the 5466-1115?
A: Yes. COO affects customs clearance, duty assessment, warranty tracking, and maintenance documentation. Keep the invoice, packing list, COO certificate, and product label records consistent.
Q: Is shipping insurance recommended for this MicroNet module?
A: Recommended. The module contains precision analog circuits and connector interfaces. Shock, humidity, or ESD exposure during transportation may create faults that only appear after installation.
Q: Does the Woodward 5466-1115 include the latest firmware pre-loaded?
A: The module itself is an I/O hardware assembly rather than a standalone controller. System compatibility depends on MicroNet software, GAP application configuration, Coder version, and associated FTM hardware. Confirm these items before replacement.
Lifecycle Note: Manage the Woodward 5466-1115 as a controlled turbine spare. Store the module together with its FTM references, cable information, software revision, and chassis assignment records. The physical card is only one element of a successful MicroNet recovery package.
