Description
- WOODWARD 5466-1158 | OEM MicroNet Turbine Control Card
2. Unboxing & Physical Snapshot
- Brand & Model: WOODWARD 5466-1158
- Product Family: MicroNet™ Digital Control System
- Product Type: MicroNet Simplex Digital I/O Smart-Plus Module (HDDIO-2). This module provides high-density discrete input/output capability for MicroNet Plus and Simplex control applications.
- Primary Application: Turbine control systems, compressor control, industrial rotating equipment automation, and Woodward 505DE control packages.
- I/O Function: High Density Discrete Input/Output interface.
- System Compatibility: Designed for MicroNet Simplex applications using compatible CPU5200-based systems and Coder 4.06 or later configurations.
- Physical Dimensions (Approximate W × H × D):
- Approximately 40 × 250 × 220 mm (MicroNet rack module format).
- Estimated Shipping Weight: Approximately 0.9 kg including ESD protection and export packaging.
- What’s in the Box:
- Woodward 5466-1158 HDDIO Smart-Plus Module
- Front identification label
- Dual D-sub interface connectors
- Backplane connector interface
- Anti-static (ESD) shielding bag
- Protective shipping carton
3. Product Introduction
Structure B — Architecture Hook
The WOODWARD 5466-1158 is installed as a high-density discrete interface module inside a MicroNet Simplex control rack. It connects field termination hardware to the controller, handling large numbers of digital signals used for machine sequencing, alarms, permissives, and shutdown logic.
This module occupies a critical position between field devices and the control processor. It is not interchangeable with every MicroNet I/O card. Confirm the CPU type, Coder revision, and field termination arrangement before replacement. Inspect the D-sub connectors, card guides, and retaining screws carefully (—which is critical in turbine applications where a single incorrect discrete signal can affect startup or trip logic).
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-1158 |
| Product Family | MicroNet Simplex / Plus |
| Module Type | HDDIO-2 Smart-Plus Digital I/O Module |
| Application | High Density Discrete Input/Output |
| System Type | Simplex Control Applications |
| Compatible CPU | CPU5200-based MicroNet systems |
| Coder Compatibility | Coder 4.06 or later |
| Replacement Function | Replaces older HDD module functionality |
| Digital Inputs | 48-channel capability through FTM configuration |
| Digital Outputs | 24-channel capability through FTM configuration |
| Interface Type | High-density D-sub connectors |
| Field Interface | 48/24 Discrete FTM |
| Mounting | MicroNet rack backplane |
| Indicators | Front LED status indicators |
| Operating Temperature | Approx. 0°C to +55°C |
| Storage Temperature | Approx. -40°C to +85°C |
| Cooling Method | Rack airflow / cabinet convection |
| Weight | Approx. 0.9 kg |

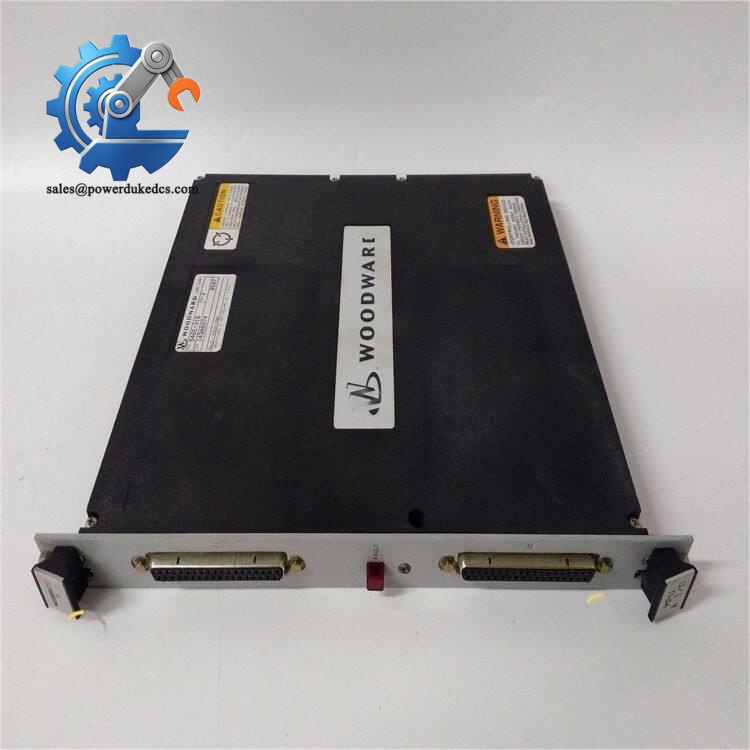

WOODWARD 5466-1158
The 5466-1158 was introduced as a replacement path for older MicroNet HDD functionality in systems using CPU5200 processors and compatible Coder versions. It provides updated internal diagnostics and memory mapping while maintaining field interface compatibility.
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the WOODWARD 5466-1158 include:
- CE Mark — applicable for compliant MicroNet system installations.
- EMC Compliance — required for industrial control environments where signal integrity is important.
- UL/cUL Recognition — verify exact system-level approval status.
- ATEX/IECEx — the module itself is not a standalone hazardous-area device; hazardous-area suitability depends on the complete enclosure and certified system design.
- Marine Approvals (DNV GL / ABS / LR) — only applicable when installed within approved marine control packages.
Discrete I/O modules directly influence permissive, alarm, and shutdown circuits. Certification records and configuration history should remain attached to the asset file.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the 5466-1158 inside the original anti-static (ESD) bag. The rear connector contacts should remain protected until installation.
Maintain warehouse humidity below 60% RH. Moisture can affect connector plating and PCB protection materials during extended storage.
Before installation:
- Inspect D-sub connectors for oxidation or bent pins.
- Check the module housing and retaining clips.
- Verify the hardware revision against the existing MicroNet system.
- Confirm the connected Field Termination Module matches the application.
- Perform a controlled I/O verification after startup.
Keep the removed module’s configuration records with the replacement unit. Digital I/O mapping errors can create commissioning delays.
7. Physical Installation Prerequisites
- Install only into a compatible Woodward MicroNet chassis.
- Remove rack power before insertion or removal.
- Use ESD protection when handling the module.
- Confirm the module seats correctly into the backplane.
- Tighten retaining screws to secure the card.
- Verify cabinet grounding and cable shielding.
Maintain airflow around the MicroNet rack. Leave adequate clearance above and below the rack assembly for convection cooling and service access.
Avoid routing discrete signal cables alongside high-current switching conductors.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q1. What HS Tariff Code is commonly used for WOODWARD 5466-1158?
A: The final Harmonized System classification depends on customs interpretation and the declared function of the digital I/O module. Industrial electronic control modules are generally reviewed under electrical control equipment categories. Confirm the final HS code with your customs broker.
Q2. Does Country of Origin affect 5466-1158 import documentation?
A: Yes. COO information supports customs clearance, asset traceability, and customer audit requirements. Retain the OEM label, commercial invoice, packing list, and receiving inspection records.
Q3. Is shipping insurance recommended for this I/O module?
A: Recommended. The module contains precision electronics and connector assemblies. Shock, vibration, or moisture exposure during transport may create intermittent field communication problems.
Q4. Does the WOODWARD 5466-1158 include the latest firmware pre-loaded?
A: The 5466-1158 is an I/O hardware module rather than a standalone controller. Firmware compatibility depends on the MicroNet CPU and application software environment. Verify Coder compatibility and system configuration before installation.
Asset Verification Note: WOODWARD 5466-1158 is identified as the Simplex HDDIO-2 Smart-Plus module and should not be confused with 5466-1156, which is the TMR/redundant application version.
