Woodward 5466-253 | TMR Analog Combo Module OEM Spare

Description

• Model: 5466-253
• Brand: Woodward
• Series: MicroNet TMR / HDCombo
• Part Type: TMR High-Density Combo I/O Module
• Woodward Application: TMR steam-turbine and 5009 control systems
• I/O Configuration: 8 analog inputs + 4 analog outputs + 4 speed inputs + 2 proportional actuator outputs
• Input Configuration: 8 × 0–5 V analog inputs
• Analog Output Configuration: 4 × 4–20 mA outputs
• Actuator Outputs: 2 proportional actuator outputs
• Associated FTM: 2 × 5501-365
• Estimated Dimensions: Configuration-specific; verify the actual module before freight planning
• Estimated Shipping Weight: 1.85 lb / approximately 0.84 kg according to a current secondary inventory record
• What’s in the Box: 5466-253 module only unless the PO specifically includes 5501-365 FTM boards, cables, mounting accessories, or documentation
• Packaging: ESD shielding bag, connector protection, rigid cushioning, moisture protection for long-term storage

Woodward’s current product literature identifies 5466-253 as a TMR Combo I/O module with eight 0–5 V inputs, four 4–20 mA outputs, two proportional actuator outputs, and four speed inputs. It uses two 5501-365 field termination modules.

Product Introduction

The Woodward 5466-253 mounts within the MicroNet TMR control architecture as a high-density combination I/O module. Its value is the concentration of four separate functions on one card: eight analog inputs, four analog outputs, four speed inputs, and two proportional actuator outputs. For TMR systems controlling valves with proportional actuators, that integrated actuator capability is particularly important because the newer replacement architecture may require separate actuator-control hardware.

For asset management, lifecycle status needs to be read carefully. Woodward’s October 2024 product-change notice states that 5466-253 was made “Preferred” and approved for new installations, with an approximate 2030 inactive target, although Woodward explicitly warns that future dates are estimates and cannot be guaranteed. The earlier replacement notice had proposed 5466-1115 or 5466-1105, but those newer modules use different field-termination hardware and do not retain the same onboard proportional-actuator capability.

Core Technical Specifications

Woodward’s 2024 notification is particularly useful for lifecycle planning: it states that 5466-253 is Preferred, while identifying 2 × 5501-365 as its field termination hardware. The older product-change notification identifies the same I/O combination and explains why newer replacement modules are not simple wiring-compatible substitutes.

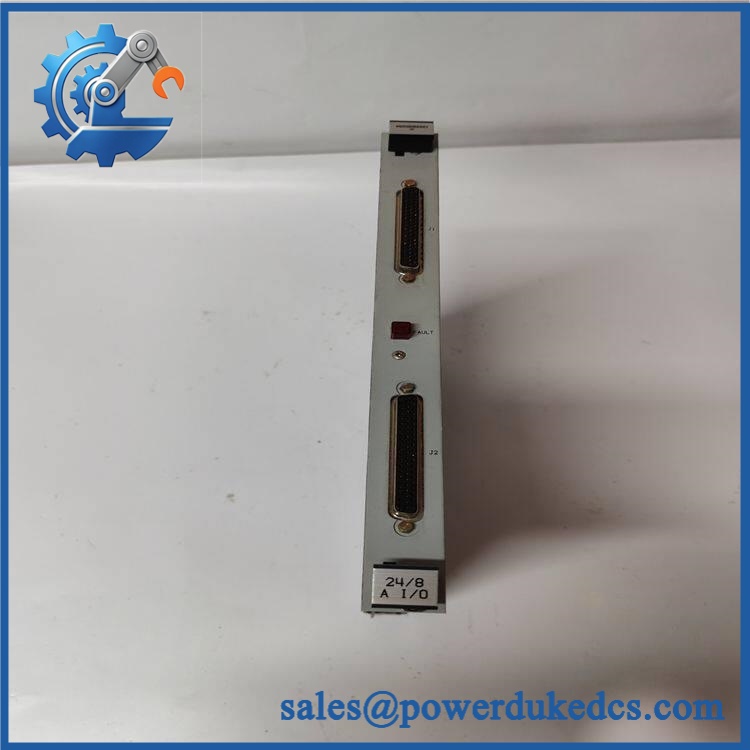

Woodward 5466-253

🚨 Global Compliance & Industry Certifications

The compliance status of the 5466-253 must be evaluated at both module and complete-control-system level.

• UL: A historical Woodward compliance matrix identifies 5466-253 with UL approval.
• CE Mark: The same historical matrix identifies CE EMC approval for 5466-253; the CE Low Voltage Directive field is shown as not applicable.
• ATEX / IECEx: The historical matrix does not establish ATEX approval for 5466-253. Do not describe the module as ATEX/IECEx certified without equipment-specific evidence.
• Marine approvals: The historical compliance matrix identifies ABS and DNV approval for 5466-253. This can matter for marine or offshore turbine-control installations, but the approval must still be matched to the applicable system configuration and certificate.
• IEC 61508: Woodward’s MicroNet safety documentation includes the relevant MicroNet hardware family in its functional-safety documentation; application-level SIL claims must be based on the certified system architecture, not merely the module part number.
• Audit Control: Retain the original nameplate, hardware revision, applicable certificate, supplier declaration, COO, serial traceability, and test record.

The UL/CE/ABS/DNV information comes from a historical Woodward compliance matrix, so it should not be treated as proof that every revision or every installation configuration carries the same approval.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the module sealed in ESD shielding material. The 5466-253 is a populated electronic control board with multiple analog, speed-sensing, and actuator interfaces. Exposure to uncontrolled static discharge is an avoidable failure source.

Protect the field-interface connectors. The module operates with two 5501-365 FTMs, so connector contamination can become a field-signal problem even when the electronics themselves remain healthy. Keep mating interfaces capped or protected during shelf storage and avoid storing the module where conductive dust or machining debris can settle on the contacts.

Control warehouse humidity and condensation. A clean indoor environment below approximately 60% RH is a practical preservation target when the OEM storage specification is unavailable. Use desiccant inside sealed packaging, inspect the board periodically, and watch for corrosion around connectors and metallic hardware.

Do not repeatedly energize shelf stock without a formal test procedure. For long-term assets, record the hardware revision, serial number, date code, packaging condition, and last functional-test date so an emergency issue does not become an identification exercise at the worst possible time.

Physical Installation Prerequisites

• Chassis Compatibility: Confirm the host MicroNet TMR chassis and slot assignment before installation.
• Field Termination: The 5466-253 uses 2 × 5501-365 FTMs. Confirm both the FTM part number and associated cabling before removing the existing module.
• Analog Wiring: Verify the eight input channels are wired for the required 0–5 V signal range.
• Analog Outputs: Confirm the four 4–20 mA outputs are wired to compatible loads and that the control-system configuration matches the intended channels.
• Speed Inputs: Check sensor type, shielding, polarity, and termination against the installed turbine-control drawing.
• Actuator Outputs: Verify the two proportional-actuator circuits, especially where the module controls turbine valves directly.
• Cooling: Keep card guides and chassis airflow unobstructed. Do not route wiring across cooling paths.
• Grounding: Follow the MicroNet cabinet grounding arrangement and verify protective-earth continuity before commissioning.
• ESD: Use a grounded wrist strap and approved antistatic workstation whenever the module is handled outside its protective packaging.
• Service Clearance: Maintain enough cabinet access to remove the module and reach its FTM/cable interfaces without disturbing adjacent control wiring.

Woodward’s current catalog identifies the 5466-253 / 5501-365 combination specifically, while the replacement documentation confirms that moving to the newer 5466-1115 or 5466-1105 architecture involves different FTMs and cables.

Buyer’s FAQ

Q1. What HS tariff code should be used for Woodward 5466-253?

Do not classify it simply as a generic PLC. The 5466-253 is a multi-function industrial control I/O module, and the final HS classification depends on the importing country’s tariff schedule and the exact commercial description. A provisional review may consider HS 8537 for electrical control apparatus, but the importer or customs broker should confirm the final national tariff code.

For the commercial invoice, a precise description such as “Woodward MicroNet TMR High-Density Combo I/O Module, P/N 5466-253” is preferable to “electronic card.”

Q2. What Country of Origin should be listed on the COO?

Use the actual manufacturing origin of the physical module being shipped, supported by the unit nameplate and supplier records. Do not assume the COO from Woodward’s corporate headquarters or from a previous shipment. For trade-compliance files, retain the serial number and actual-unit photograph with the COO.

Q3. Should I insure a 5466-253 shipment?

Yes, particularly for obsolete or high-criticality turbine-control inventory. Protect the card edge, FTM connectors, and exposed hardware against impact and electrostatic damage. Photograph the complete module, serial label, revision, and packaging before sealing the shipment; those records support both freight claims and asset audits.

Q4. Does the replacement module include the latest firmware pre-loaded?

Do not assume it does. The 5466-253 is a hardware I/O module, and its suitability depends on the installed MicroNet controller architecture, GAP/application configuration, module revision, and field-termination arrangement. Woodward’s replacement notice specifically notes that newer combo modules require software updates and different FTMs/cables.

Q5. Can I replace 5466-253 directly with 5466-1115?

Not as a simple wiring-equivalent substitution. Woodward identifies 5466-1115 and 5466-1105 as newer replacement options, but they use different FTMs and cables. More importantly, the newer 5466-1115 architecture lacks the onboard proportional-actuator capability of the older 5466-253. A migration therefore requires engineering review, GAP updates, field-termination changes, and commissioning—not just a card exchange.
