Description
- Woodward 5466-257 | Traceable Safety Control Hardware
2. Unboxing & Physical Snapshot
- Model & Brand: Woodward 5466-257
- Product Type: MicroNet TMR High Density Analog I/O Module
- Series: Woodward MicroNet TMR / 5009FT Control System
- Application: High-density analog input/output module used in Woodward MicroNet TMR safety and turbine control architectures. It provides 24 analog inputs and 8 analog outputs for redundant turbine, compressor, and industrial prime mover control applications.
- I/O Configuration: 24 Analog Inputs / 8 Analog Outputs (High Density Analog I/O)
- Mounting Style: VME-based MicroNet chassis plug-in module
- System Position: Installed within each TMR kernel where identical modules operate across redundant channels.
- Approximate Physical Dimensions (W × H × D):
- Estimated: 30 × 260 × 160 mm
- Final dimensions depend on chassis card guides and front-panel configuration.
- Estimated Shipping Weight: Approximately 0.8–1.2 kg including ESD packaging.
- What’s in the Box:
- Woodward 5466-257 High Density Analog I/O Module
- Front panel assembly
- VME backplane connector interface
- Anti-static ESD packaging
- Product identification label
- Documentation when supplied with controlled inventory
Asset note: The 5466-257 is a TMR-specific module. It should not be substituted with standard MicroNet Plus analog modules without system compatibility review.
3. Product Introduction
The 5466-257 occupies a critical measurement layer inside the Woodward MicroNet TMR architecture. It collects high-density analog signals from field devices and transfers validated process measurements into the redundant control kernels. In a TMR installation, identical input data is distributed among the three processors so the control system can compare values before executing application logic.
Treat this module as a safety-related control asset. Inspect the VME edge connector, front retaining screws, module handle mechanism, and termination cable interface before installation. Analog modules often appear functional while producing inaccurate measurements due to damaged connectors, grounding issues, or incompatible field termination hardware.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-257 |
| Product Family | MicroNet TMR |
| Module Type | High Density Analog I/O Module |
| Main Function | Analog signal acquisition and output control |
| Analog Inputs | 24 channels |
| Analog Outputs | 8 channels |
| System Architecture | Triple Modular Redundant (TMR) |
| Compatible System | Woodward 5009FT / MicroNet TMR |
| Mounting Interface | VME chassis slot |
| Field Interface | High Density Analog FTM |
| Cable Interface | 5417 series high-density analog cables |
| Processor | Local module controller |
| Memory | Internal calibration/configuration memory |
| Firmware | Factory module firmware |
| Isolation | System-dependent field isolation |
| Cooling | Chassis forced airflow |
| Operating Environment | Industrial turbine control cabinet |
| Typical Application | Turbine, compressor, and generator control |

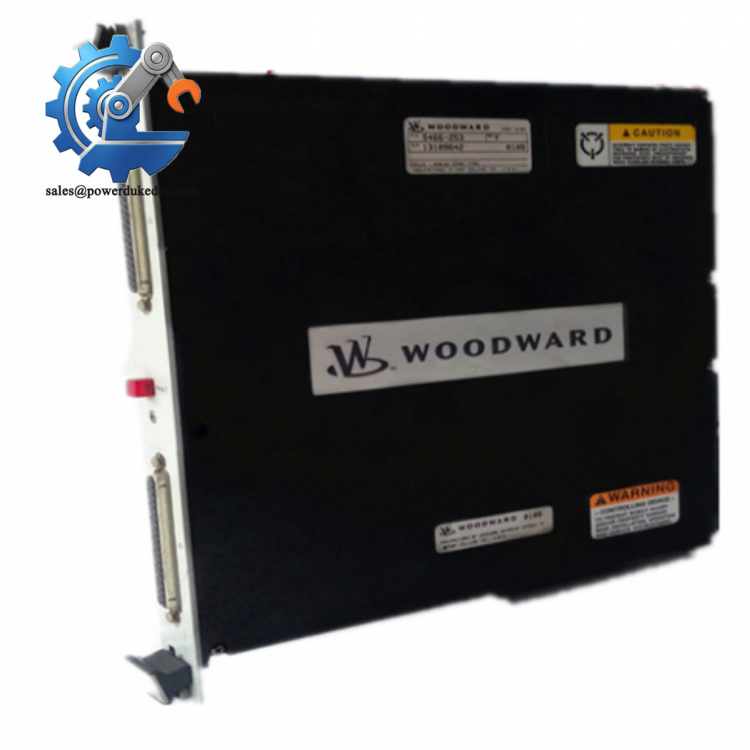

Woodward 5466-257
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 5466-257 include:
- CE Mark
- Industrial EMC compliance
- IEC 61508 SIL-related system approval when used within approved MicroNet safety configurations
- UL/cUL considerations through certified MicroNet system assemblies
- ATEX/IECEx applicability only when installed within a certified hazardous-area control system
- Marine approvals may apply only for approved marine turbine or propulsion packages
The IEC 61508 relevance is significant because TMR architectures are designed for fault tolerance and safety-related applications. Certification applies to the complete safety system configuration, not the individual module alone.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the 5466-257 inside the original anti-static ESD shielding bag until installation. Protect the VME connector contacts from oxidation and contamination.
- Maintain warehouse humidity below 60% RH to protect PCB surfaces, connector plating, and analog circuitry.
- Store the module in a temperature-controlled cabinet away from vibration sources and corrosive industrial gases.
Check the calibration label.
For TMR spare management, record the module serial number, firmware revision, system Coder version, and associated field termination module. Analog modules are configuration-sensitive; documentation gaps can create commissioning delays years later.
7. Physical Installation Prerequisites
- Install only in compatible Woodward MicroNet TMR chassis assemblies.
- Verify the correct slot location before insertion.
- Inspect card guides, retaining screws, and backplane connectors.
- Ensure forced-air cooling within the chassis is operational.
- Connect approved high-density analog cables and termination modules.
- Maintain protective cabinet grounding.
- Keep analog signal wiring separated from high-voltage switching circuits.
- Leave approximately 50 mm clearance around cabinet airflow paths where practical.
- Verify field scaling and calibration parameters before returning the controller to operation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Woodward 5466-257?
A: Industrial control I/O modules are commonly evaluated under HS 8537.10 for electrical control apparatus. Final classification depends on customs interpretation, voltage rating, and declared application.
Q: Why does Country of Origin (COO) documentation matter for this analog I/O module?
A: COO supports customs clearance, turbine maintenance records, and safety-system asset traceability. The COO should match the commercial invoice, packing list, and module identification records.
Q: Is shipping insurance recommended for the 5466-257?
A: Yes. The module contains precision analog electronics and backplane connectors that can be damaged by impact, moisture, or improper handling. Use ESD packaging and rigid transport protection.
Q: Does the Woodward 5466-257 include the latest firmware pre-loaded?
A: The module contains factory firmware, but compatibility depends on the MicroNet TMR system revision and application software. Verify the installed Coder version and module compatibility before commissioning.
