Woodward 5466-315 | Original MicroNet Plus I/O Assembly

1. Woodward 5466-315 | Original MicroNet Plus I/O Assembly

Unboxing & Physical Snapshot

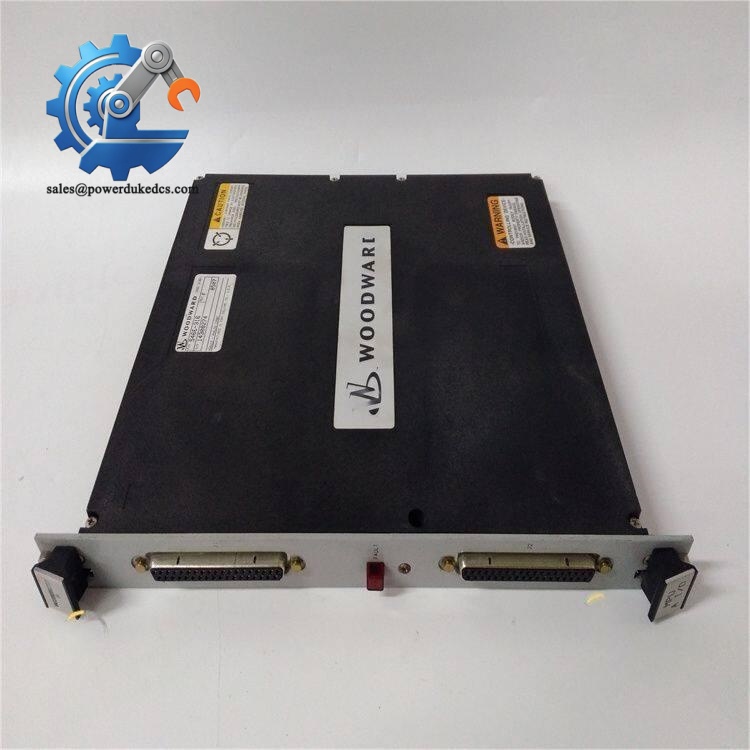

• Model & Brand: Woodward 5466-315
• Product Type: MicroNet High Density Analog I/O Module.
• System Platform: Woodward MicroNet / MicroNet Plus digital control systems.
• Primary Function: High-density analog signal acquisition and output interface for turbine and industrial control applications. The module provides 24 analog inputs and 8 analog outputs and requires dedicated High Density Analog Field Terminal Modules (FTMs).
• Approximate Physical Dimensions (W × H × D):
  • Approximately 80 × 260 × 250 mm (standard MicroNet 6U VME module format reference).
• Estimated Shipping Weight:
  • Module weight: approximately 2.0 kg
  • Typical export packaging weight: 2.5–3.5 kg
• What’s in the Box:
  • Woodward 5466-315 High Density Analog I/O Module
  • Front faceplate assembly
  • VME backplane connector
  • ESD protective packaging
  • Documentation package when available
  • High Density Analog FTM and field cables supplied separately unless specified

Product Introduction

The Woodward 5466-315 installs directly into a MicroNet chassis as a high-density analog interface between field instrumentation and the control processor. The module receives multiple 4–20 mA process signals and provides analog outputs for connected control devices, reducing the number of individual I/O cards required in large turbine control cabinets (—which is important when cabinet space and wiring density are tightly managed).

This module must be matched with the correct MicroNet architecture and field termination hardware. Confirm the FTM type, cable assembly, signal isolation requirements, and application configuration before replacement. Check the slot location. Check the field wiring drawings. Older MicroNet systems may require specific GAP application updates when replacing legacy analog modules.

Core Technical Specifications

Woodward 5466-315

? Global Compliance & Industry Certifications

Expected regulatory approvals for the Woodward 5466-315 include:

• CE Mark
  • Applies when installed as part of a compliant MicroNet control system meeting EMC requirements.
• UL/cUL Listed
  • May apply at the complete MicroNet system level depending on cabinet configuration and approved installation methods.
• ATEX / IECEx
  • The module should not be treated as an independent hazardous-area certified device. Hazardous-area applications require approved field devices, barriers, wiring methods, and complete system certification.
• Marine Approvals (DNV GL)
  • Applicable only when installed within a marine-certified control package.

Analog I/O modules directly process operational measurements such as pressure, temperature, and process feedback. Incorrect certification records or hardware revisions can create audit issues during turbine maintenance reviews.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the Woodward 5466-315 inside an anti-static (ESD) shielding bag during storage. Protect the card-edge connector, front panel, and PCB surface from dust and handling damage.

Maintain warehouse humidity below 60% RH. Moisture exposure can increase contact resistance and accelerate oxidation on the backplane connector.

Before installation after extended storage:

• Inspect connector pins under proper lighting.
• Verify part number, revision label, and serial number.
• Confirm the matching High Density Analog FTM is available.
• Review the previous application configuration.

Do not store modules directly on metal shelves without ESD protection (—small contamination on connector surfaces can create intermittent analog signal faults that are difficult to reproduce).

Physical Installation Prerequisites

• Install the 5466-315 only in compatible Woodward MicroNet chassis.
• Insert the module using the chassis card guides.
• Confirm the VME connector is fully seated.
• Install the correct High Density Analog FTM assemblies.
• Verify 4–20 mA loop wiring before energization.
• Confirm grounding and shielding practices follow plant standards.
• Maintain cabinet airflow around the rack.
• Leave approximately 50 mm clearance around service areas where cabinet design permits.
• Verify analog channel scaling after installation.
• Perform loop checks before returning the turbine control system to operation.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Woodward 5466-315?

A: Industrial control I/O modules are commonly reviewed under HS 8538 categories for parts used with electrical control equipment. Final classification depends on customs interpretation in the destination country.

Q: Why does Country of Origin (COO) matter for the 5466-315?

A: COO affects customs clearance, duty treatment, and traceability records. The commercial invoice, packing list, and certificate of origin should match the Woodward part number and manufacturer information.

Q: Is shipping insurance recommended for this analog I/O module?

A: Recommended. The module contains precision analog circuitry and a sensitive backplane connector. Shock, moisture, or electrostatic discharge during transport may create hidden failures.

Q: Does the 5466-315 include the latest firmware pre-loaded?

A: The module contains factory-installed internal logic and calibration data. It is not a standalone PLC CPU. Verify MicroNet software compatibility, GAP application configuration, and module revision before commissioning.
