Woodward 5466-326 | Original Pressure Transducer Module

Description

1. Woodward 5466-326 | Original Pressure Transducer Module

Unboxing & Physical Snapshot

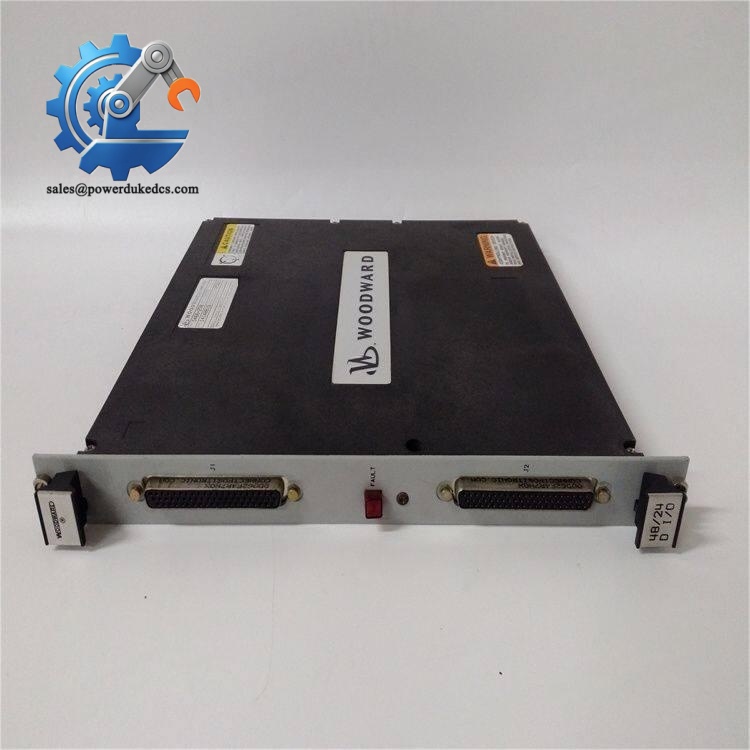

• Model & Brand: Woodward 5466-326
• Product Type: MicroNet Pressure Input Module / Pressure Transducer Interface Module.
• System Platform: Woodward MicroNet Simplex and MicroNet Plus digital control systems.
• Primary Function: Receives pressure signals from external pressure transducers and transfers processed pressure data to the main CPU module through the VME bus dual-port RAM interface. One module supports connection of multiple pressure transducers (configuration dependent).
• Approximate Physical Dimensions (W × H × D):
  • Approximately 80 × 260 × 250 mm (card module reference size; verify against OEM mechanical drawings before installation).
• Estimated Shipping Weight:
  • Module weight: approximately 1.5–2.0 kg
  • Typical export packaging weight: 2.5–3.0 kg
• What’s in the Box:
  • Woodward 5466-326 Pressure Input Module
  • Front panel identification label
  • VME backplane connector interface
  • ESD protective packaging
  • Installation documentation when available
  • Pressure transducer wiring interface supplied separately unless specified

Product Introduction

The Woodward 5466-326 installs into the MicroNet control chassis as a dedicated pressure measurement interface. It occupies a standard card slot and communicates pressure data to the main processor through the VME-based architecture. The module is designed for turbine and industrial control systems where accurate pressure feedback is required for monitoring, sequencing, and protective functions (—which is critical in systems where incorrect pressure feedback can affect operating limits).

This module is not a universal analog input card. Confirm the connected pressure transducer type, wiring configuration, chassis compatibility, and application software before replacement. Check the slot assignment. Check the sensor wiring. The same MicroNet family may contain multiple analog and pressure interface modules with different signal characteristics.

Core Technical Specifications

Woodward 5466-326

? Global Compliance & Industry Certifications

Expected regulatory approvals for the Woodward 5466-326 include:

• CE Mark
  • Applicable when installed as part of a compliant MicroNet control system meeting EMC and safety requirements.
• UL/cUL Listed
  • May apply at the system level depending on the approved MicroNet cabinet configuration.
• ATEX / IECEx
  • The pressure input module itself should not be considered independently hazardous-area certified. Hazardous-area installation requires approved sensors, barriers, enclosure protection, and complete system certification.
• Marine Approvals (DNV GL)
  • Applicable only when integrated into a certified marine automation package.

Pressure monitoring modules can affect turbine protection logic and operational decisions. Certification documentation must match the installed hardware configuration.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the 5466-326 inside an original anti-static (ESD) shielding bag during storage. Protect the edge connector, PCB surfaces, and front identification label from contamination.

Maintain warehouse humidity below 60% RH. High humidity can accelerate oxidation on connector contacts and degrade electronic components over long storage periods.

Before installation after extended storage:

• Inspect connector pins for oxidation.
• Verify module part number and hardware revision.
• Confirm pressure transducer compatibility.
• Check the chassis slot assignment.

Avoid touching exposed connector contacts directly. Use ESD protection when handling (—small handling errors can create intermittent field failures that are difficult to diagnose).

Physical Installation Prerequisites

• Install the 5466-326 only in a compatible Woodward MicroNet chassis.
• Insert the module using the chassis card guides.
• Ensure the rear VME connector is fully seated.
• Verify pressure transducer wiring before energization.
• Confirm sensor power requirements and signal type.
• Connect cabinet grounding according to plant standards.
• Maintain cabinet airflow around the rack assembly.
• Leave approximately 50 mm clearance around service areas where cabinet layout permits.
• Verify module diagnostics after installation.
• Confirm pressure readings against calibrated field instruments before returning equipment to operation.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Woodward 5466-326?

A: Industrial control input modules are commonly reviewed under HS 8538 categories for parts used with electrical control equipment. Final classification depends on the importing country’s customs interpretation.

Q: Why does Country of Origin (COO) matter for the 5466-326?

A: COO affects customs clearance, duty treatment, and equipment traceability. Ensure the commercial invoice, packing list, and certificate of origin match the Woodward manufacturer information and exact part number.

Q: Is shipping insurance recommended for this pressure input module?

A: Recommended. The module contains sensitive electronic circuits and precision connector interfaces. Transit shock, moisture, or electrostatic exposure may cause failures that are not visible during receiving inspection.

Q: Does the 5466-326 include the latest firmware pre-loaded?

A: The module contains factory-installed internal electronics and calibration data, but it is not a standalone PLC CPU. Verify MicroNet CPU compatibility, application software version, and system configuration before commissioning.
