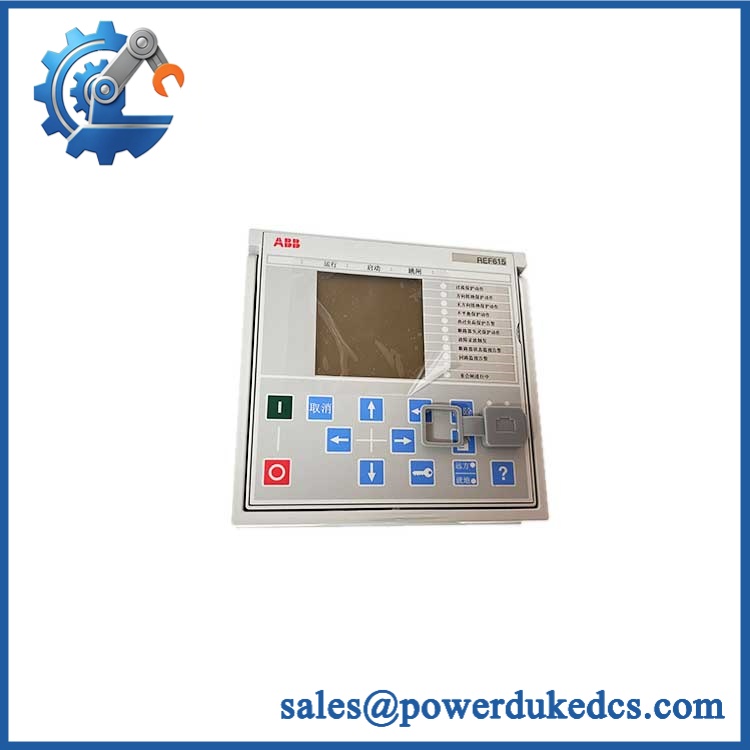

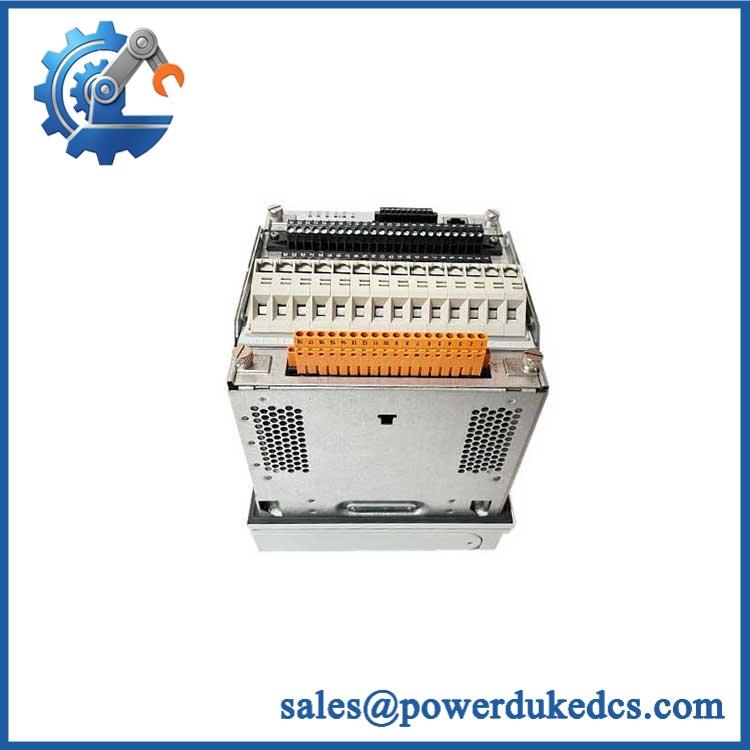

ABB REF615C_E HCFEAEAGABC2BAA11 | Genuine OEM Fast Shipping

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: REF615C_E HCFEAEAGABC2BAA11
• Lifecycle Status: Active product family; exact ordering code requires configuration verification
• Core Function: Feeder protection, control, measurement, and supervision
• Top 3 Technical Specs: IEC 61850 communication; 50/60 Hz protection functions; configurable feeder protection
• Stock & Condition: New Surplus; factory condition to be confirmed; shipment subject to stock and order cutoff

Module 3: Supply Chain & Technical Deep Dive

A failed feeder relay can stop an entire electrical section, yet replacing one is rarely as simple as matching the REF615 name. ABB REF615 is a dedicated feeder protection and control relay from the Relion 615 family. The platform combines protection, control, measurement, supervision, and communication functions, with configuration-dependent hardware and software options. That makes the complete ordering code important when sourcing a replacement.

From a TCO perspective, the relay’s value comes from restoring protection functionality without forcing a larger switchgear modification. REF615 supports IEC 61850 communication and can be configured for different feeder protection applications. Exact I/O, communication interfaces, protection functions, and auxiliary supply characteristics depend on the selected hardware and application configuration, so procurement should verify the full HCFEAEAGABC2BAA11 code against the installed relay before approving a replacement. For protection equipment, a lower purchase price is meaningless if the replacement requires panel rewiring or protection-engineering changes.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Trap 1: Similar REF615 Names Do Not Mean Identical Hardware

REF615 units can be configured for different protection functions, I/O arrangements, communication interfaces, and auxiliary power options.

Do not purchase by “REF615” alone.

Compare the complete ordering code, terminal layout, communication ports, and installed configuration.

⚠️ Field Trap 2: Protection Settings Must Be Preserved

A relay replacement is not just an electrical hardware swap.

Before removing the existing unit:

• Export the existing relay configuration.
• Record protection settings.
• Save disturbance records where required.
• Record CT and VT ratios.
• Photograph terminal wiring.
• Record IEC 61850 station configuration.
• Confirm trip and blocking logic.

After installation, compare the loaded settings against the approved protection file before returning the feeder to service.

⚠️ Field Trap 3: IEC 61850 Configuration

If the station uses IEC 61850, replacing the relay can affect communication configuration even when the physical wiring appears identical.

Check:

• IED name
• IP configuration
• Substation configuration
• GOOSE subscriptions
• Dataset configuration
• Communication supervision
• Time synchronization

A relay that powers up normally can still cause a protection-system problem if its station configuration does not match the engineering database.

ABB REF615C_E HCFEAEAGABC2BAA11

Module 5: Quality Assurance & Testing SOP

For protection relays, visual inspection alone is not sufficient. A pre-shipment test should verify the actual functions relevant to the supplied configuration.

1. OEM Identification Check

• Verify ABB branding.
• Confirm REF615C_E designation.
• Verify complete ordering code.
• Record serial number.
• Photograph the nameplate.
• Check labels for alteration or replacement.
• Compare the hardware configuration with the purchase specification.

2. Physical Inspection

Inspect the relay for:

• Corrosion
• Cracked housing
• Damaged terminal blocks
• Bent connector pins
• Discolored components
• Signs of overheating
• Evidence of previous repair
• Missing accessories

Particular attention should be given to terminal blocks because field wiring must match the exact hardware configuration.

3. Power-On Self-Test

Using a suitable ABB protection-relay test environment:

• Apply the specified auxiliary supply.
• Check startup behavior.
• Verify front-panel indicators.
• Check alarm and status indications.
• Connect the engineering software.
• Confirm relay identification.
• Read hardware and firmware information.

Any abnormal diagnostic indication should be recorded before shipment.

4. Protection Function Testing

Where supported by the exact configuration, use a calibrated relay test system to verify relevant functions.

Typical checks may include:

• Overcurrent protection
• Earth-fault protection
• Phase-current measurement
• Voltage measurement where fitted
• Trip output operation
• Binary input response
• Binary output response
• Protection timing
• Alarm generation

Do not apply generic test limits to every REF615 configuration. The approved protection setting file and exact ordering code determine which functions should be tested.

5. IEC 61850 Communication Test

For units configured for IEC 61850:

• Verify network communication.
• Confirm IED identification.
• Check required GOOSE communication.
• Verify communication status.
• Confirm time synchronization where applicable.

6. Final QC

• Test Report completed
• Serial number recorded
• Configuration information archived
• Test photographs stored
• QC approval completed
• ESD packaging applied
• Protective packaging installed
• Shipment label attached

Test photographs and available Test Reports can be provided for procurement review.

ABB REF615C_E HCFEAEAGABC2BAA11

Module 6: Procurement-Driven FAQ

1. Is ABB REF615C_E HCFEAEAGABC2BAA11 actually in stock, and when can it ship?

Physical inventory should be confirmed against the exact ordering code before the purchase order is released. For urgent feeder protection work, provide the required quantity and delivery destination so the warehouse can confirm the actual unit and dispatch cutoff.

Do not substitute another REF615 configuration without engineering approval.

2. How do you verify the condition of a surplus REF615 relay?

The inspection should cover the complete nameplate, serial number, enclosure, terminals, display, connectors, and signs of previous repair.

For tested inventory, request the pre-shipment Test Report and inspection photographs. The report should identify the tested serial number so the document can be matched to the physical relay.

3. What warranty should procurement expect?

The quotation should clearly state the warranty period, covered functional failures, return authorization procedure, and inspection requirements.

For protection relays, warranty coverage should be tied to the documented pre-shipment condition and test record. Any installation-related damage or unauthorized modification should be addressed separately in the commercial terms.

4. Could firmware or configuration cause problems during replacement?

Yes. The main concern is not simply whether the relay powers up. Protection settings, application configuration, communication parameters, and IEC 61850 engineering data must match the intended installation.

Before replacement, save the existing configuration and record firmware information. After installation, validate protection settings and communication before energizing the feeder.

5. Can I replace this unit with another REF615?

Not automatically.

Use this comparison before approving a substitute:

For a critical feeder, an apparently similar relay can be a costly substitute if its I/O or protection configuration differs.
