ALSTOM 730475-D ELEMENTS-F2 | Turbine Control Module

Description

• Brand: ALSTOM
• Full Model Number: 730475-D ELEMENTS-F2
• Lifecycle Status: Legacy / Obsolete status to be confirmed
• Core Function: Field-configurable steam turbine control
• Top 3 Technical Specs: 32-bit microprocessor; integrated operator control panel; two-line 24-character display with 30-key keypad
• Stock & Condition: Availability subject to physical inventory; condition verified per unit; pre-shipment inspection available

Supply Chain & Technical Deep Dive

When a legacy turbine controller fails, the main risk is not only the component itself. Configuration recovery, valve-control interfaces, and replacement lead time can extend an outage. Available product records identify ALSTOM 730475-D ELEMENTS-F2 as a field-configurable controller for single extraction, extraction/intake, or intake steam turbine applications. The same records describe an integrated operator control panel with a two-line, 24-character display and 30-key keypad.

The controller is described as a 32-bit microprocessor-based unit with set values and actual values handled through register-based communications. It can interface with HP and LP control valves and regulate variables such as turbine inlet pressure, exhaust pressure, flow, generator output, or related process conditions. Those capabilities can reduce engineering effort when retaining an existing control architecture is preferable to redesigning the turbine control package. Exact supply voltage, I/O allocation, firmware revision, communications implementation, and mechanical details should be confirmed from the installed unit and OEM documentation before purchase.

Migration, Compatibility & Field Traps

Replacement Matrix

Field Traps — Watch Out

• Configuration Mismatch: Capture existing set values, actual values, control limits, valve parameters, and application settings before removing the failed controller.
• Firmware and Hardware Revision: Do not assume two 730475-D units are interchangeable solely because the base part number matches. Check revision markings, installed software, connector arrangement, and system documentation.
• Valve Interface Verification: Confirm the existing HP and LP valve control architecture before energization. Output characteristics must match the installed control scheme.
• Operator Panel Check: Verify that the replacement includes the expected operator interface hardware and display configuration where the application depends on local commissioning access.

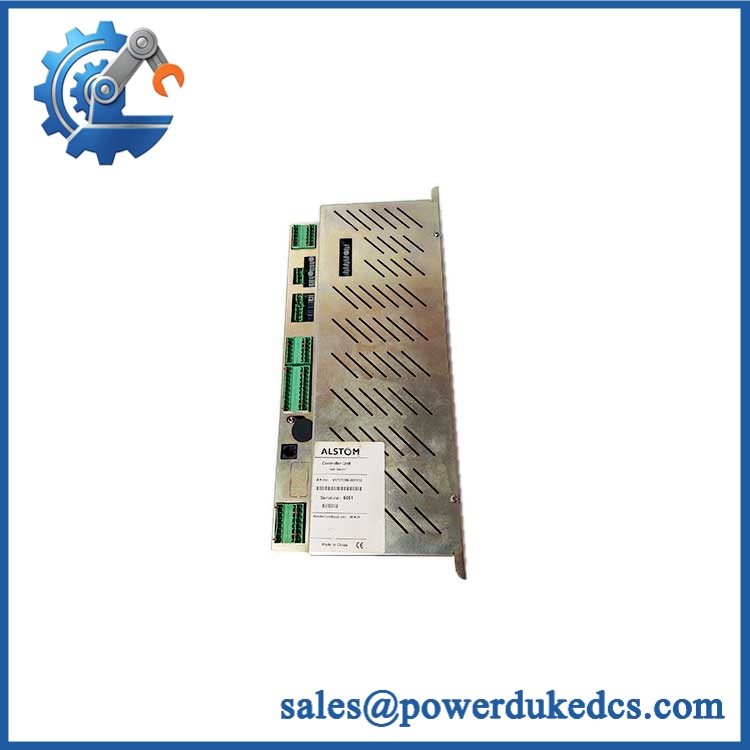

ALSTOM 730475-D ELEMENTS-F2

Quality Assurance & Testing SOP

Every available unit should pass a documented pre-shipment inspection sequence before release:

• OEM Identification Inspection: Verify ALSTOM branding, complete 730475-D ELEMENTS-F2 identification, labels, serial information, and revision markings.
• Anti-Counterfeit Visual Inspection: Examine PCB workmanship, connectors, fasteners, labels, solder quality, and signs of unauthorized repair.
• Physical Condition Check: Inspect the enclosure, keypad, display window, connectors, terminal areas, and board surfaces for corrosion, impact, contamination, or thermal damage.
• Power-Up Functional Test: Apply the correct test supply for the verified unit configuration and record startup behavior.
• POST Verification: Check available status indicators and diagnostic behavior, including ERR/RUN LEDs where fitted.
• Operator Interface Test: Verify display operation, keypad response, menu access, and parameter navigation where the hardware permits.
• Control Function Test: Verify applicable input, output, register, and control functions against the available test procedure.
• I/O Load Testing: Exercise applicable outputs under controlled test loads without exceeding documented electrical limits.
• Communication Test: Verify supported host communications and representative read/write register transactions where the test setup supports them.
• Final Documentation: Record serial number, photographs, test results, configuration information, and packing condition before shipment.

Public product records provide functional descriptions but do not establish one universal factory acceptance procedure for every 730475-D revision. Final testing should therefore follow the applicable OEM manual and the specific hardware revision supplied.

Procurement-Driven FAQ

Is ALSTOM 730475-D ELEMENTS-F2 physically in stock, and what is the overnight shipping cutoff?
Physical availability must be confirmed against the current warehouse lot. For urgent orders, the required quantity and destination should be checked before the shipping cutoff is committed.

How do you verify an obsolete or surplus 730475-D before shipment?
The unit should undergo part-number and revision verification, visual inspection, connector inspection, power-up testing, operator-panel testing where applicable, and functional checks against the available test procedure. Serial and condition photographs can be provided before shipment.

What warranty applies to a defective unit?
A 12-month functional warranty can be specified on the quotation unless the transaction documents state otherwise. Defective-unit claims should include the order reference, serial number, failure description, and relevant test evidence.

Could firmware compatibility create a commissioning problem?
Yes. Firmware, hardware revision, stored parameters, and application configuration can affect replacement acceptance. Engineering should compare the replacement unit with the installed controller before commissioning.

Is the 730475-D ELEMENTS-F2 specifically a turbine controller?
Available records for the exact part number describe it as a 32-bit microprocessor-based controller for single extraction, extraction/intake, or intake steam turbine applications, with an integrated operator control panel. Other online records associate the same part number with unrelated applications, so the installed nameplate, system documentation, and hardware revision should be treated as the final authority before procurement.
