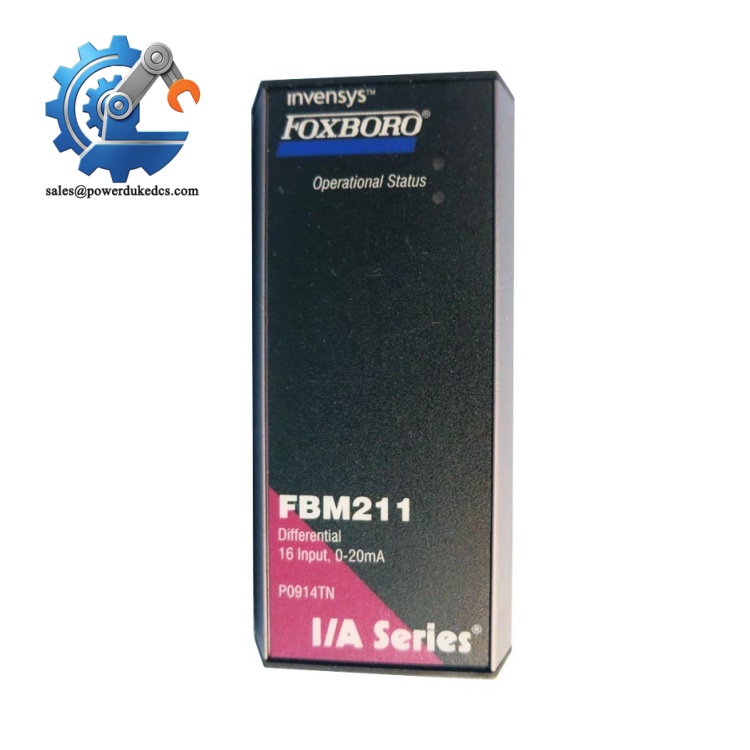

1. Foxboro FBM211 P0916BT | Original I/A Series Module

2. Unboxing & Physical Snapshot

• Model & Brand: Foxboro FBM211 P0916BT (Schneider Electric / Foxboro I/A Series)
• Product Type: 0–20 mA Analog Input Module termination assembly configuration for Foxboro I/A Series DCS. The FBM211 provides sixteen isolated analog input channels for 2-wire transmitters and current sources. P0916BT is the associated compression termination assembly used with FBM-powered field device configurations.
• Approximate Physical Dimensions (W × H × D):
  • Module: approximately 45 × 102 × 104 mm
  • Including mounting lugs: approximately 45 × 114 × 104 mm
• Estimated Shipping Weight:
  • FBM211 module: approximately 284 g
  • P0916BT termination assembly: approximately 272 g
  • Typical packaged shipping weight: 0.8–1.2 kg
• What’s in the Box:
  • Foxboro FBM211 I/O module (when supplied as complete assembly)
  • P0916BT compression termination assembly
  • Terminal interface components
  • Mounting accessories when applicable
  • Protective packaging
  • Anti-static (ESD) shielding bag

3. Product Introduction

The Foxboro FBM211 P0916BT assembly installs within the Foxboro I/A Series DCS I/O subsystem, where the FBM211 module converts field-level 0–20 mA analog signals into digital process data for the control system. The module communicates with the associated fieldbus interface through the redundant 2 Mbps module Fieldbus connection, supporting continuous process measurement applications such as flow, pressure, and level monitoring (—which is critical in process plants where instrument availability directly affects operational decisions).

This is a controlled replacement item, not a generic analog input card. Confirm the termination assembly type, cable arrangement, field wiring method, and DCS database configuration before installation. Check the terminal block. Check the fieldbus connector. A correct FBM number with an incorrect termination assembly can create wiring and commissioning issues.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Foxboro / Schneider Electric
Model	FBM211 P0916BT
System Platform	Foxboro I/A Series DCS
Module Type	Analog Input Interface Module
Input Channels	16 channels
Input Signal	0–20 mA DC
Compatible Devices	2-wire analog transmitters and current sources
Channel Isolation	Galvanically isolated from ground and module logic
A/D Conversion	Sigma-Delta converter
Communication Interface	Redundant 2 Mbps Fieldbus
Input Channel Impedance	61.9 Ω nominal
Power Supply	24 VDC redundant input (+5%, -10%)
Maximum Power Consumption	7 W
Maximum Consumption with Powered Inputs	11 W
Maximum Heat Dissipation	Approximately 3 W
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5–95% RH non-condensing
Environmental Classification	ISA S71.04 Class G3 harsh environment
Module Weight	Approximately 284 g
Termination Assembly Weight	Approximately 272 g

Foxboro FBM211 P0916BT

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals for the Foxboro FBM211 P0916BT include:

• CE Mark
  • Applies to the complete Foxboro DCS installation when configured according to EMC requirements.
• UL/cUL Listed
  • Applicable for approved industrial control system installations. Certain termination assemblies associated with FBM211 configurations have hazardous-location certifications.
• ATEX / IECEx
  • Applicable only to certified system configurations and approved termination assemblies. The FBM module itself should not be assumed suitable for hazardous zones without verification.
• Marine Approvals (DNV GL)
  • May apply only when installed within a certified marine automation package.

Certification control is important for analog input modules because incorrect field interface hardware can affect signal integrity, hazardous-area compliance, and plant documentation.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the FBM211 P0916BT assembly inside an original anti-static (ESD) bag during storage. Protect the compression terminals, backplane contacts, and field connectors from dust and oxidation.

Maintain warehouse humidity below 60% RH. Moisture exposure can increase contact resistance and create unstable analog measurements after installation.

Inspect stored modules every 12–24 months. Check terminal screws, connector pins, labels, and date codes. Record firmware revision and serial information before transferring the spare into active inventory.

Avoid stacking heavy items on top of the module packaging. The mounting lugs and terminal assemblies can deform under mechanical pressure.

7. Physical Installation Prerequisites

• Install the FBM211 on a compatible Foxboro modular baseplate.
• Install the P0916BT termination assembly on the approved DIN rail arrangement.
• Verify field wiring matches the termination assembly design.
• Confirm 24 VDC redundant power wiring polarity.
• Connect protective grounding according to cabinet standards.
• Maintain cabinet airflow around the I/O rack.
• Leave approximately 50 mm clearance around ventilation areas where required by enclosure design.
• Inspect backplane connectors before insertion.
• Verify channel configuration and transmitter scaling after startup.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Foxboro FBM211 P0916BT?

A: Industrial DCS input modules are commonly reviewed under HS 8538 categories for parts of electrical control equipment. The final classification depends on customs interpretation and declared equipment function.

Q: Why does Country of Origin (COO) matter for this Foxboro module?

A: COO affects customs clearance, duty evaluation, and equipment traceability. The commercial invoice, packing list, and certificate of origin should contain matching manufacturer information.

Q: Is shipping insurance recommended for the FBM211 P0916BT?

A: Recommended. The module contains precision electronic circuits and field connectors. Shock, vibration, or electrostatic exposure during transportation may create failures that are not visible during receiving inspection.

Q: Does the FBM211 P0916BT include the latest firmware pre-loaded?

A: The module is supplied with factory firmware, but the required software revision depends on the Foxboro I/A Series system configuration. Verify firmware compatibility, I/O database settings, and field calibration parameters before commissioning.
