Foxboro FBMSVH | Original I/A Series Control Module

1. Foxboro FBMSVH | Original I/A Series Control Module

Unboxing & Physical Snapshot

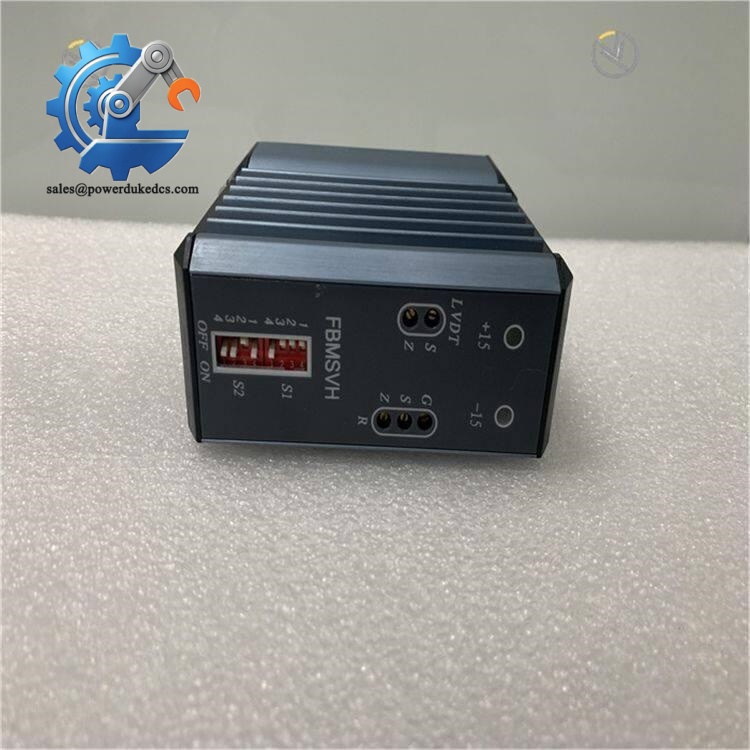

• Model & Brand: Foxboro FBMSVH I/A Series Fieldbus Module. The FBMSVH is used within Foxboro I/A Series DCS architectures for specialized control applications, including servo position control interfaces.
• Product Type: Specialized Fieldbus Module / Servo Position Control Interface.
• System Family: Foxboro I/A Series DCS.
• Primary Function: Interface and control module for specialized field devices such as valve position systems using feedback signals (application dependent).
• Physical Dimensions (Approximate W × H × D): Approximately 45 × 200 × 150 mm (1.8 × 7.9 × 5.9 in.) depending on housing and mounting configuration.
• Estimated Shipping Weight: Approximately 1.0–1.5 kg (2.2–3.3 lb) including protective packaging.
• What’s in the Box:
  • Foxboro FBMSVH Fieldbus Module
  • Protective ESD shielding bag
  • Module identification label
  • Mounting accessories (if supplied)
  • Documentation when available

Product Introduction

The Foxboro FBMSVH installs into the I/A Series fieldbus module mounting architecture, where the module connects through the fieldbus carrier and communicates with the DCS controller. Correct seating, connector condition, and grounding are essential. Inspect the module edge contacts before installation because contamination or oxidation can create intermittent control problems in aging process systems (especially where valve position loops operate continuously).

This module is designed for specialized field control applications rather than general-purpose signal acquisition. The FBMSVH supports closed-loop control functions associated with servo or position feedback applications, including systems using LVDT-based feedback devices. Configuration depends on the overall I/A Series database and connected field hardware. Confirm the exact module revision and application wiring before replacement.

Core Technical Specifications

Foxboro FBMSVH

Global Compliance & Industry Certifications

Expected compliance considerations for the Foxboro FBMSVH include:

• CE Mark — applicable when installed as part of a compliant Foxboro I/A Series control system.
• UL/cUL Recognition — may apply depending on the complete DCS hardware configuration.
• ATEX/IECEx — not a standalone hazardous-area certified module; hazardous-area applications require approved system-level certification.
• Marine approvals (DNV GL) — applicable only when supplied as part of a certified marine automation package.
• ISA S71.04 Environmental Compatibility — relevant for industrial environments where corrosive gases and contaminants may exist.

Certification review should include the complete installation chain: module, carrier, wiring, field device interface, and cabinet environment.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Store the FBMSVH inside its original anti-static (ESD) shielding bag. The connector pins and internal PCB surfaces require protection from dust and electrostatic exposure.

Maintain warehouse humidity below 60% RH. Excess moisture can accelerate connector oxidation and degrade long-term electrical reliability.

Before returning a stored module to service:

• Inspect the housing and connector contacts.
• Verify the module part number and hardware revision.
• Confirm compatibility with the existing Foxboro I/A Series database.
• Check field wiring documentation before installation.
• Perform controlled power-up verification after replacement.

Keep spare modules away from chemical vapors, condensation areas, and vibration sources.

Physical Installation Prerequisites

• Install only in a compatible Foxboro I/A Series FBM carrier/baseplate.
• Confirm the correct slot position before insertion.
• Remove system power before replacing the module.
• Verify field wiring and termination compatibility.
• Ensure proper cabinet grounding.
• Maintain clean cable routing and shield termination.
• Keep signal wiring separated from high-voltage power conductors.
• Leave approximately 50 mm clearance around cabinet airflow areas where practical.
• Confirm fieldbus communication status after installation.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Foxboro FBMSVH?

A: Industrial DCS modules are commonly reviewed under HS 8538 as parts for electrical control equipment. Final classification depends on customs interpretation and the declared function of the module.

Q: Does Country of Origin (COO) affect importing the FBMSVH?

A: Yes. COO affects customs clearance, duty calculation, supplier qualification records, and maintenance traceability. The commercial invoice, packing list, and product label should remain consistent.

Q: Is shipping insurance recommended for this module?

A: Recommended. The FBMSVH contains precision electronic assemblies and connector interfaces. Transport shock, moisture exposure, or ESD damage may not be visible during receiving inspection.

Q: Does the FBMSVH include the latest firmware pre-loaded?

A: Firmware availability depends on the specific hardware revision and Foxboro I/A Series system generation. Configuration is controlled by the DCS engineering database, so verify module compatibility before installation.

Lifecycle Note: The FBMSVH is part of the legacy Foxboro I/A Series spare asset population. Maintain accurate module revision records, wiring documentation, and system configuration backups to avoid extended commissioning delays.
