- FOXBORO P0916AA | OEM Process Control Hardware
2. Unboxing & Physical Snapshot

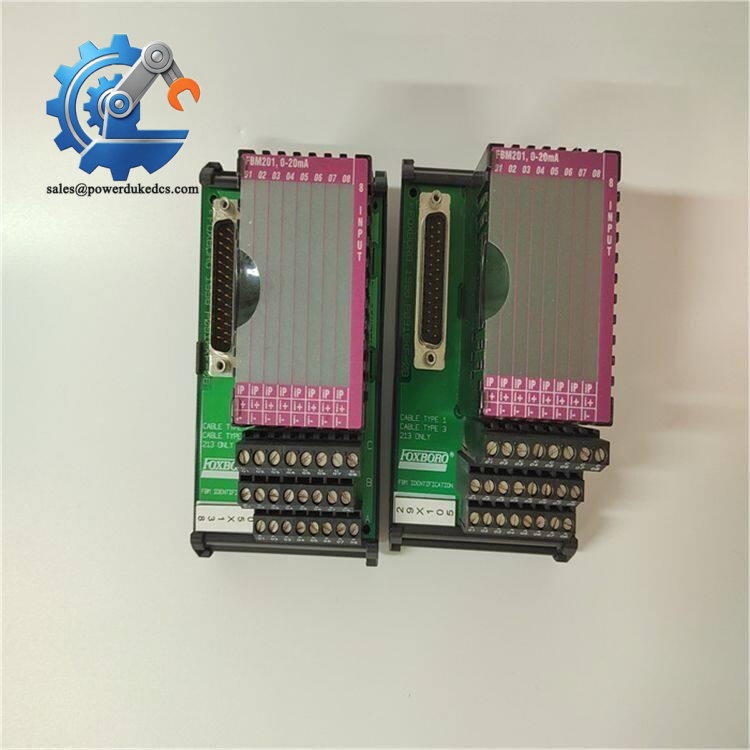

- Brand & Model: FOXBORO P0916AA
- Product Family: Foxboro I/A Series 200 I/O
- Product Type: Field Terminal Assembly (TA) for FBM201 input module. The P0916AA provides field wiring termination between process instruments and the Foxboro FBM201 distributed control system I/O module.
- Primary Application: Process automation systems, chemical plants, oil & gas facilities, power generation, and continuous manufacturing applications.
- Compatible Module: Foxboro FBM201 (8-channel analog input, 4–20 mA applications).
- Physical Dimensions (Approximate W × H × D):
- Approximately 147 × 52 × 114 mm (reference dimensions).
- Estimated Shipping Weight: Approximately 0.8–1.2 kg including terminal assembly protection and export packaging.
- What’s in the Box:
- Foxboro P0916AA field terminal assembly
- Terminal connection hardware
- Identification label
- Protective packaging
- Installation accessories when supplied
3. Product Introduction
Structure B — Architecture Hook
The FOXBORO P0916AA is installed as the field connection layer within a Foxboro I/A Series DCS cabinet architecture. It provides the physical interface between field wiring and the FBM201 I/O module, allowing process signals to be terminated, organized, and routed into the control system.
This assembly is not an active controller or standalone I/O processor. It is a precision termination component that depends on the correct FBM type, cable arrangement, and cabinet design. Verify the terminal type, wiring diagram, and replacement records before installation (—which is critical in process plants where a single incorrect field termination can affect multiple measurement loops). Inspect the compression terminals, mounting clips, and connector surfaces before service.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Emerson process automation heritage) |
| Model Number | P0916AA |
| Product Family | I/A Series 200 I/O |
| Product Type | Field Terminal Assembly |
| Compatible FBM | FBM201 |
| Signal Type | 8-channel analog input termination |
| Typical Signal Range | 0–20 mA / 4–20 mA applications |
| Terminal Type | Compression terminal |
| Electrical Function | Passive field signal termination |
| Mounting Method | Control cabinet mounting |
| Power Requirement | No independent field power supply |
| Operating Environment | Industrial control cabinet |
| Operating Temperature | Approx. -20°C to +70°C (application dependent) |
| Storage Temperature | Approx. -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | Approx. 147 × 52 × 114 mm |
| Weight | Approx. 0.35–0.8 kg |
FOXBORO P0916AA
The P0916AA does not perform signal processing. The connected FBM201 handles the I/O conversion while the terminal assembly provides the physical field interface.
5. ? Global Compliance & Industry Certifications
Expected compliance considerations for the FOXBORO P0916AA include:
- CE Mark — may apply when installed as part of a compliant Foxboro I/A Series system.
- UL/cUL Recognition — may apply depending on the complete DCS cabinet certification.
- RoHS Compliance — depends on manufacturing revision and supply region.
- ATEX/IECEx — not a standalone hazardous-area device; certification depends on the complete installed system and field barrier arrangement.
- Marine Approvals (DNV GL) — applicable only for approved marine automation installations.
Termination assemblies are often overlooked during audits, but correct certification and documentation help demonstrate that field wiring interfaces meet approved system requirements.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the P0916AA inside sealed protective packaging whenever possible. The terminal contacts and compression connection surfaces must remain clean before installation.
Maintain warehouse humidity below 60% RH. Moisture exposure can cause oxidation on terminal hardware and reduce long-term contact reliability.
Before installation:
- Inspect terminal blocks for corrosion or discoloration.
- Verify terminal markings match the approved wiring documentation.
- Check mechanical clips and mounting points for cracks.
- Confirm the assembly has not been exposed to conductive dust or chemical contamination.
Keep the terminal assembly with its matching FBM documentation. Mixing similar Foxboro termination units can create wiring errors during maintenance.
7. Physical Installation Prerequisites
- Install only with the compatible Foxboro FBM201 configuration.
- Confirm cabinet slot and cable assignment before connection.
- Verify field wiring polarity and channel identification.
- Maintain cabinet grounding practices.
- Protect terminals from dust and moisture ingress.
- Ensure sufficient cabinet space for wiring access and inspection.
- Leave adequate clearance around the cabinet assembly for maintenance activities.
Do not force field cables into terminals. Damaged compression points can create intermittent process signals.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q1. What HS Tariff Code is commonly used for FOXBORO P0916AA?
A: The final Harmonized System classification depends on customs interpretation and the declared function of the assembly. Field terminal assemblies for industrial control systems are typically evaluated under electrical control equipment categories. Confirm the final HS code with your customs broker.
Q2. Does Country of Origin affect P0916AA import documentation?
A: Yes. COO information supports customs clearance, customer audits, and DCS asset traceability. Keep the OEM label, commercial invoice, packing list, and receiving inspection records together.
Q3. Is shipping insurance recommended for this terminal assembly?
A: Recommended. Although the P0916AA is smaller than active DCS modules, damaged terminals or connectors can create installation failures that are difficult to detect visually.
Q4. Does the FOXBORO P0916AA include the latest firmware pre-loaded?
A: No. The P0916AA is a field terminal assembly and does not contain application firmware. Firmware management applies to the associated FBM201 module and control system configuration.
Lifecycle Note: The P0916AA has been superseded in newer Foxboro documentation by newer termination assembly references such as RH916XG for certain FBM201 applications. Verify replacement compatibility before purchasing.
