1. Foxboro FCP270 P0917YZ | Traceable DCS Processor Asset

2. Unboxing & Physical Snapshot

• Model & Brand: Foxboro FCP270 P0917YZ (Schneider Electric Foxboro)
• Product Type: Field Control Processor 270 (FCP270) for Foxboro I/A Series DCS
• Application: Distributed control processor used for regulatory control, logic execution, sequencing, data acquisition, and alarm processing within Foxboro I/A Series process control systems.
• Processor Configuration: Single processor module; fault-tolerant systems use paired processor modules installed on a compatible redundant baseplate.
• Approximate Physical Dimensions (W × H × D):
  • Approximately 51.5 × 147 × 114 mm
  • Compact field controller module format.
• Estimated Shipping Weight: Approximately 0.6 kg module weight; export packaging typically increases shipping weight to approximately 1.2–1.5 kg.
• What’s in the Box:
  • Foxboro FCP270 P0917YZ Field Control Processor
  • Module identification label
  • Protective anti-static ESD packaging
  • Connector protection accessories (configuration dependent)
  • Technical documentation when supplied with controlled inventory

3. Product Introduction

The FCP270 P0917YZ mounts into the Foxboro I/A Series control architecture as a field-level process controller, managing execution of control strategies and communication with associated Fieldbus Modules (FBMs). It operates as a core DCS processing element, positioned between engineering configuration systems and distributed field I/O hardware (which is critical in continuous process plants where controller replacement downtime must be minimized).

Handle this processor module as a controlled automation asset. Inspect the backplane connector, retaining mechanism, enclosure condition, and status indicators before installation. The processor contains stored configuration and firmware data, so replacement units should be verified for compatibility with the installed I/A Series revision before commissioning.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Foxboro (Schneider Electric)
Model Number	FCP270 P0917YZ
Product Family	I/A Series DCS
Product Type	Field Control Processor 270
Controller Function	Regulatory control, logic, sequencing, alarming
Processor	AMD ELAN 520 processor, 100 MHz
SDRAM Memory	16 MB
Flash Memory	32 MB
Input Voltage	24 VDC typical
Power Consumption	Maximum 8.5 W per non-fault-tolerant module
Communication Network	Foxboro MESH control network
Communication Speed	100 Mbps Ethernet-based control network
FBM Support	Supports communication with Foxboro Fieldbus Modules
Redundancy Support	Fault-tolerant configuration available
Mounting Method	I/A Series control station/baseplate mounting
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +70°C (typical storage range)
Relative Humidity	5–95% RH non-condensing
Protection Design	Industrial DCS module enclosure
Firmware	Factory-installed controller firmware

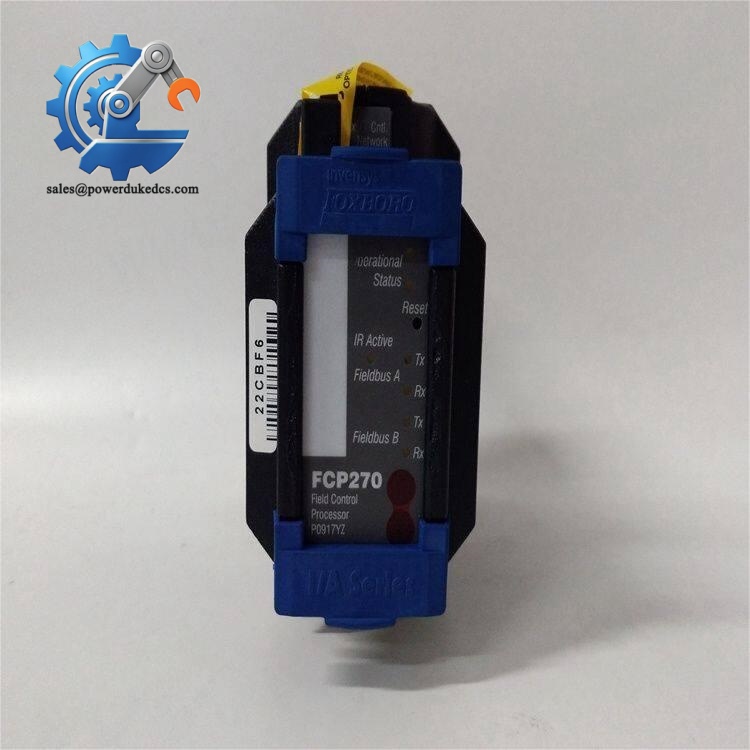

Foxboro FCP270 P0917YZ

5. Global Compliance & Industry Certifications

Expected compliance considerations for the Foxboro FCP270 P0917YZ include:

• CE Mark
• UL/UL-C Listed for applicable Class I Division 2 industrial control installations
• ATEX Zone 2 certification consideration when installed according to approved system requirements
• IEC EMC compliance
• Marine certification consideration: Bureau Veritas Marine certification may apply for approved system configurations.

The Class I Division 2 rating is important because it confirms suitability for environments where flammable gases may occasionally exist under abnormal conditions, provided installation requirements are followed.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the FCP270 inside the original anti-static ESD shielding bag during storage. Protect the rear connector pins from oxidation and contamination.
• Maintain warehouse humidity below 60% RH to reduce PCB corrosion and connector degradation.
• Store the module in a temperature-controlled cabinet away from vibration, chemical vapors, and electromagnetic interference sources.

Check the date code.

For long-term DCS spare management, record the hardware revision, firmware revision, serial number, and previous operating environment. Legacy process controllers often remain deployed for many years, making traceability essential during maintenance audits.

7. Physical Installation Prerequisites

• Install only within a compatible Foxboro I/A Series FCP270 baseplate assembly.
• Verify the controller firmware and system revision before replacement.
• Ensure the backplane connector is clean and undamaged.
• Secure the retaining clips before applying power.
• Provide a stable 24 VDC redundant power supply where required.
• Maintain cabinet airflow and leave approximately 50 mm clearance around controller assemblies where practical.
• Connect grounding according to the Foxboro cabinet installation guidelines.
• Keep network cables separated from high-voltage power wiring.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Foxboro FCP270 P0917YZ?
A: Industrial DCS controller modules are commonly evaluated under HS 8537.10 categories for electrical control apparatus. Some suppliers reference 8537101190, but the final classification depends on customs authorities and destination-country rules.

Q: Why does Country of Origin (COO) documentation matter for this DCS processor?
A: COO supports customs clearance, maintenance traceability, and regulated industry documentation. The COO should match the commercial invoice, packing list, and module identification records.

Q: Is shipping insurance recommended for the FCP270 P0917YZ?
A: Yes. The module contains processor electronics, memory components, and precision backplane connectors. Use ESD protection, shock-resistant packaging, and declared-value freight coverage.

Q: Does the FCP270 P0917YZ include the latest firmware pre-loaded?
A: The module includes factory firmware, but the exact revision depends on production history. Confirm firmware compatibility with the installed Foxboro I/A Series system before commissioning.
