1. Foxboro IPM2-P0904HA | Original Foxboro Control Power

2. Unboxing & Physical Snapshot

• Model & Brand: Foxboro IPM2-P0904HA (Schneider Electric / Invensys Foxboro I/A Series)
• Product Type: Industrial Power Module for Foxboro I/A Series DCS systems. The IPM2-P0904HA provides regulated DC power output for control system components and includes selectable AC input voltage capability.
• Approximate Physical Dimensions (W × H × D):
  • Approximately 140 × 230 × 100 mm (configuration and measurement reference may vary).
• Estimated Shipping Weight:
  • Module weight: approximately 2.3 kg / 5 lb class.
  • Typical packaged shipping weight: 3–4 kg
• What’s in the Box:
  • Foxboro IPM2-P0904HA Industrial Power Module
  • AC input terminal interface
  • DC output connection terminals
  • Status LED indicators
  • Mounting hardware when supplied
  • Protective packaging
  • Anti-static (ESD) shielding protection

3. Product Introduction

The Foxboro IPM2-P0904HA is installed as a dedicated power conversion module within Foxboro I/A Series control architectures. It accepts selectable AC input sources and provides a regulated 39 VDC output used by compatible industrial control system assemblies. The module includes front status indicators for operational checks during maintenance activities (—which is important when troubleshooting legacy DCS cabinets where downtime windows are limited).

Treat this power module as a controlled electrical spare. Confirm the exact Foxboro system configuration before replacement. Verify input voltage selection, output requirements, wiring arrangement, and cabinet power distribution drawings. A matching enclosure does not guarantee electrical compatibility. Check the terminal block. Check the voltage selector settings.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Foxboro / Schneider Electric / Invensys
Model	IPM2-P0904HA
Product Type	Industrial Power Module
System Platform	Foxboro I/A Series
Input Voltage	100 / 120 / 220 / 240 VAC selectable
Input Frequency	50/60 Hz typical
Output Voltage	39 VDC
Output Current	Approximately 1.7 A
Output Power	Approximately 66 W class
Status Indication	LED indicators
Protection Features	Overcurrent and short-circuit protection (configuration dependent)
Mounting Method	Cabinet/rack installation
Cooling Method	Natural convection
Operating Temperature	Configuration dependent, typically industrial cabinet range
Storage Temperature	Typical industrial storage range
Dimensions	Approx. 140 × 230 × 100 mm
Weight	Approx. 2.3 kg

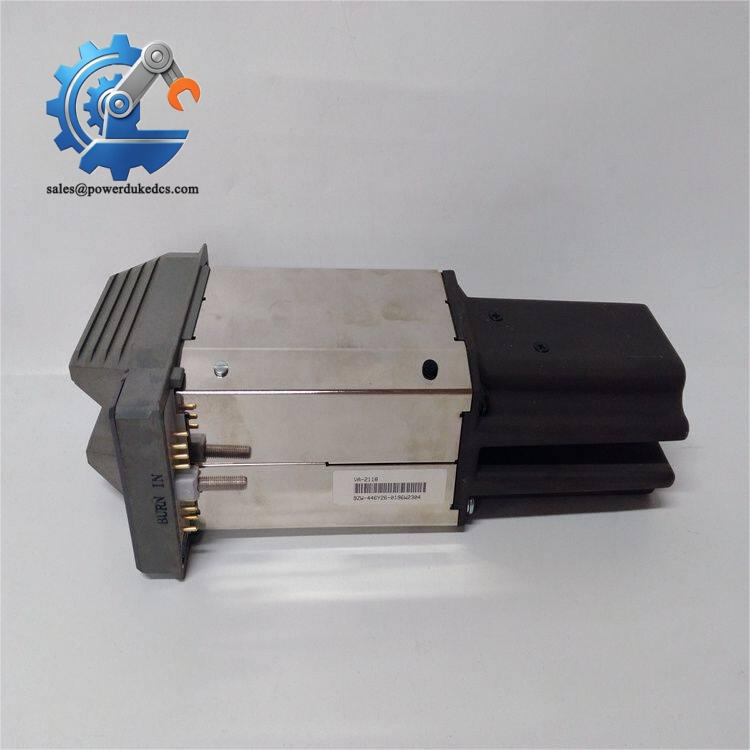

Foxboro IPM2-P0904HA

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals for the Foxboro IPM2-P0904HA include:

• CE Mark
  • Indicates compliance with applicable EMC and electrical safety requirements when installed as part of an approved Foxboro control system.
• UL/cUL Listed
  • May apply when installed within approved industrial control equipment assemblies.
• ATEX / IECEx
  • The power module itself is not normally a standalone hazardous-area certified device. Hazardous-area use depends on enclosure certification, wiring methods, and the complete system design.
• Marine Approvals (DNV GL)
  • Applicable only when included in a certified marine automation system.

Power supply certification matters because this module feeds control equipment where unstable voltage can cause system faults, unexpected shutdowns, or unreliable field communication.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the IPM2-P0904HA inside its original anti-static (ESD) packaging during storage. Protect the AC input terminals, DC output contacts, and connector surfaces from contamination.

Maintain warehouse humidity below 60% RH. Excess moisture can accelerate corrosion on terminals and reduce insulation performance on internal assemblies.

For long-term storage exceeding two years, inspect the power module before energizing. Controlled startup procedures may be required because aging electrolytic capacitors can experience stress after extended shelf periods (—especially for discontinued DCS power assemblies kept as emergency replacements).

Record the serial number, manufacturing date code, and storage inspection history.

7. Physical Installation Prerequisites

• Install only within a compatible Foxboro I/A Series cabinet configuration.
• Verify AC input selection before applying power.
• Confirm output voltage matches the connected equipment requirements.
• Mount securely according to cabinet mechanical drawings.
• Maintain adequate airflow around the enclosure.
• Leave approximately 50 mm clearance around ventilation areas where cabinet design requires.
• Connect protective earth according to plant electrical standards.
• Inspect terminals for oxidation before wiring.
• Perform output voltage verification before connecting downstream loads.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Foxboro IPM2-P0904HA?

A: Industrial power modules are commonly reviewed under HS 8504 categories for electrical power conversion equipment. The final classification depends on destination-country customs interpretation and declared function.

Q: Why does Country of Origin (COO) matter for this Foxboro power module?

A: COO affects customs clearance, duty calculation, and traceability requirements. Ensure the commercial invoice, packing list, and certificate of origin contain consistent manufacturer information.

Q: Is shipping insurance recommended for the IPM2-P0904HA?

A: Recommended. The module contains power conversion electronics and capacitors. Impact damage or moisture exposure during transportation may not be visible from the external housing.

Q: Does the IPM2-P0904HA include the latest firmware pre-loaded?

A: No firmware application is normally loaded into this power module. It functions as a hardware power supply component. Verify electrical compatibility and Foxboro system requirements before installation.
