FOXBORO P0926GJ | 1 Meter Hypalon XLPE Modbus Termination Cable

Description

• Brand: FOXBORO
• Full Model Number: P0926GJ
• System/Series Family: Foxboro I/A Series 200 Series FBM subsystem; FBM224 Modbus interface
• Core Function: 1-meter Type 5 Hypalon/XLPE termination cable connecting the FBM224 communication baseplate to its field termination assembly
• Top 3 Hardcore Specs: 1.0 m length; Type 5 Hypalon/XLPE jacket; RS-422/RS-485 Modbus termination interface
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished condition before order

Module 3: Technical Product Introduction

A communication interface is only as reliable as the cable and termination path between the FBM baseplate and field wiring. FOXBORO P0926GJ is a 1.0-meter Type 5 Hypalon/XLPE termination cable used with the Foxboro I/A Series FBM subsystem. Schneider Electric’s official I/A Series documentation identifies P0926GJ specifically as the 1-meter Type 5 Hypalon/XLPE cable option for the FBM224 Modbus communication interface and related RS-422/RS-485 field-termination arrangement.

The cable is not simply a generic patch lead. It is part of the defined Foxboro termination architecture, where the associated P0926GH termination assembly provides the RS-422/RS-485 interface and the cable links that assembly to the baseplate. The published cable family also includes P0926GQ at 3 meters and P0926GR at 5 meters, making P0926GJ the 1-meter variant. Schneider Electric specifies the Hypalon/XLPE construction for an operating temperature range of approximately -40 to +90°C, while also noting that Hypalon cables are no longer available for new purchase through the current offering.

Module 4: Application Scenarios & Field Realities

• At remote RTU or process-control cabinets using FBM224 Modbus communication, P0926GJ provides the defined 1-meter connection between the baseplate and termination assembly. Keep the cable routing separate from high-energy switching conductors where practical; RS-485 integrity can deteriorate quickly when installation practices are poor.
• During a brownfield cable replacement, the 1-meter length matters. A longer cable may physically reach the termination assembly, but it changes the original routing and can introduce unnecessary slack, bend-radius problems, or proximity to noise sources. The Foxboro parts documentation explicitly assigns P0926GJ to the 1-meter position in this cable family.
• For Modbus networks using RS-422/RS-485 termination hardware, the should be evaluated together with the correct P0926GH termination assembly and baseplate. The termination hardware includes selectable signal arrangements and termination functions, so replacing the cable alone does not correct a mismatched network topology.
• In harsh industrial cabinets, the original Hypalon/XLPE construction was selected for environmental resistance and industrial installation. Schneider’s current specification gives the H/XLPE cable a temperature range of -40 to +90°C. Note that Schneider also identifies Hypalon cable as an older construction that is no longer available for current purchase through its newer offering.

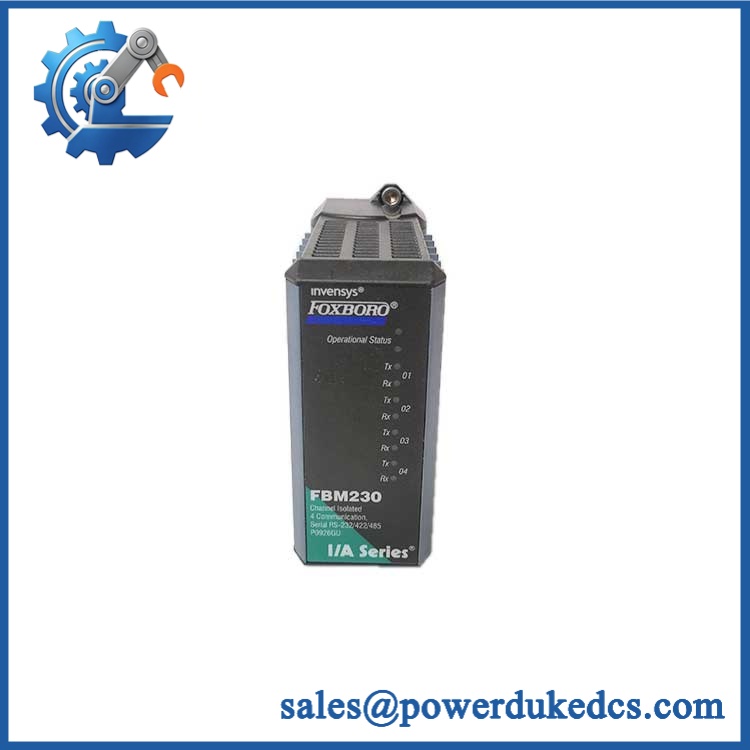

FOXBORO P0926GJ

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact 1-meter cable: Drop-in Replacement
When the existing installation uses the same Foxboro termination arrangement and requires the 1-meter cable length, is the direct cable replacement. No application software modification is required merely because the cable is replaced.

P0926GQ or P0926GR substituted for : Hardware Verification Required
These are longer members of the same cable family—3 meters and 5 meters respectively. They may be electrically related but are not dimensionally identical replacements. Verify routing, cabinet layout, shielding, bend radius, and installed documentation before substitution.

Generic RS-485 cable substituted for : Hardware Modification Required
A generic twisted-pair cable does not automatically reproduce the intended Foxboro termination geometry, connectorization, shielding, conductor insulation, or mechanical interface. Use the approved cable assembly or a formally engineered equivalent.

⚠️ Field Traps (Watch Out)

Termination-family mismatch: is associated with the P0926GH RS-422/RS-485 termination assembly in the FBM224 configuration. Do not pair it with an unrelated termination assembly simply because both use serial communications. The connector and signal mapping must match the installed Foxboro baseplate.

Cable construction confusion: Current Schneider documentation distinguishes Type 5 LSZH cables from the older Type 5 Hypalon/XLPE family. is the Hypalon/XLPE 1-meter part, while the corresponding newer LSZH 1-meter cable is identified separately as P0928AW. Do not interchange these part numbers in a controlled spare-parts specification without checking the approved installation standard.

Routing trap: RS-422/RS-485 communication cables should be routed with attention to electromagnetic interference. A replacement that is electrically continuous can still produce intermittent Modbus errors when routed immediately alongside contactor, motor, or variable-frequency-drive conductors.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for FOXBORO

• Step 1 — Identity Verification: Confirm FOXBORO marking, part number, 1.0-meter cable designation, cable family, and available batch or manufacturing identification.
• Step 2 — OEM Anti-Counterfeit Visual Inspection: Examine cable markings, jacket printing, connector bodies, termination geometry, labels, and manufacturing quality for inconsistencies or unauthorized rework.
• Step 3 — Mechanical Inspection: Check the entire cable length for cuts, crushed sections, excessive bending, jacket degradation, exposed shielding, connector damage, or compromised strain relief.
• Step 4 — Length Verification: Measure the finished cable assembly and verify the nominal 1.0 m configuration against the applicable Foxboro specification.
• Step 5 — Pin-to-Pin Continuity Test: Verify every conductor through the complete assembly against the approved FBM224/P0926GH wiring diagram.
• Step 6 — Shield and Ground Verification: Check shield continuity and termination arrangement without introducing an unintended connection between conductors or signal returns.
• Step 7 — Insulation Resistance Test: Where appropriate for the cable assembly and test fixture, verify conductor-to-conductor and conductor-to-shield insulation resistance using a controlled test voltage suitable for the installed cable construction.
• Step 8 — Communication Handshake Verification: Connect the cable to a compatible test assembly and confirm successful RS-422/RS-485 communication under a controlled Modbus test setup.
• Step 9 — Intermittent-Fault Check: Flex the cable gently at the connector and strain-relief points while monitoring communications for dropouts, CRC errors, or intermittent opens. Do not exceed the manufacturer’s mechanical bend limits.
• Step 10 — Final QC Record: Record complete part number, measured length, continuity results, shield test, insulation result, communication test result, visual condition, test date, and final QC disposition.

Technical Verification Note: Schneider Electric’s official documentation identifies as a 1.0-meter Type 5 Hypalon/XLPE termination cable used with the Foxboro I/A Series FBM subsystem. For the Modbus communication interface, the associated termination assembly is P0926GH, with specified for 1-meter cable length; the same family uses P0926GQ at 3 meters and P0926GR at 5 meters. The specified Hypalon/XLPE temperature range is -40 to +90°C, and Schneider notes that this older Hypalon cable construction is no longer available for current purchase.
