GE IC660TBD025 | Genius 32 Circuit DC Terminal Assembly

Description

• Brand: GE Fanuc
• Full Model Number: IC660TBD025
• System/Series Family: GE Genius I/O
• One-Sentence Core Function: Terminal assembly providing field wiring, power, and Genius bus connections for the IC660BBD025 32-circuit DC I/O block
• Top 3 Hardcore Specs: 32 circuits; 5/12/24 VDC application; 0.5 A maximum output per circuit
• Input Filter: Selectable 1–100 ms
• Power: 5 VDC logic supply, with 12/24 VDC field-power configurations
• Isolation: 850 VAC block-to-block
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

Field wiring faults on a legacy Genius block can be difficult to isolate because the terminal assembly is responsible for much more than simply holding screws. The GE IC660TBD025 is the Genius terminal assembly specifically associated with the IC660BBD025 I/O block. GE’s original Genius documentation identifies the BBD025/TBD025 combination as a 32-circuit, 5/12/24 VDC discrete input/output configuration, with the terminal assembly providing the field connection and interface between the electronic assembly and the I/O block.

The engineering value is preservation of the existing field termination while replacing a damaged terminal assembly. Available specifications identify 0.5 A maximum output current per circuit, with selectable input filtering from 1 to 100 ms and approximately 850 V block-to-block isolation. The assembly also provides access for a handheld monitoring terminal through its front interface. One field detail matters: the terminal assembly is not the complete electronic I/O block. The IC660BBD025 electronics and the IC660EBD025 electronics assembly form the associated system, so replacing only the terminal assembly does not resolve a failed Genius electronics module.

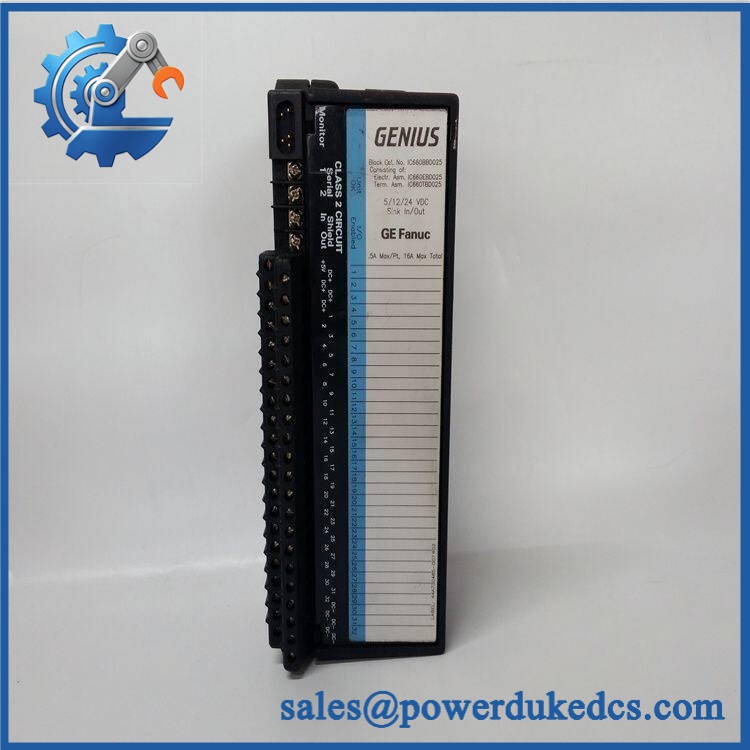

GE IC660TBD025

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Fanuc Genius 32-Circuit DC Terminal Assembly
• Compatible I/O Block: IC660BBD025.
• Logic rewrite: Not required. This is a terminal/interface assembly rather than programmable control hardware.
• Firmware flash: Not applicable to the terminal assembly.
• Drop-in status: Direct replacement is generally appropriate when the existing installation uses IC660BBD025 + IC660TBD025 and the terminal revision matches.
• Circuits: 32 discrete circuits.
• Output capability: Up to 0.5 A per circuit according to available technical references.
• Input filtering: Selectable 1–100 ms.
• Associated Electronics: IC660EBD025 is the corresponding electronics assembly identified in GE documentation.

⚠️ Field Traps (Watch Out)

• BBD025 matching: IC660TBD025 is specifically associated with IC660BBD025. Do not substitute another TBD-series terminal assembly merely because it has the same physical form.
• Terminal revision: Later suffixes such as IC660TBD025K indicate revision changes. Current documentation notes that revision K and later use a newer electronic housing and can require the corresponding newer plastic door and terminal-strip compatibility.
• Voltage identification: The associated block supports 5, 12, and 24 VDC configurations. Verify the actual field-voltage arrangement before reconnecting wiring.
• Circuit current: Do not use the terminal’s 0.5 A per-circuit figure as permission to connect arbitrary inductive loads. Check inrush current and the electrical rating of the associated I/O electronics.
• Wiring transfer: Photograph and label all 32 circuit positions before removing the original terminal assembly. A one-position wiring error can create multiple false I/O faults.
• Power isolation: Even though the terminal assembly is passive, connected field circuits may remain energized. Isolate all applicable sources before removing conductors.

Module 5: Quality Assurance SOP

Before shipment, the GE IC660TBD025 should undergo a terminal-assembly-specific inspection:

1. OEM anti-counterfeit visual inspection — verify GE Fanuc markings, IC660TBD025 identification, terminal layout, housing, screw terminals, and molded/PCB markings.
2. Revision verification — record the complete terminal assembly suffix and identify whether the unit is an early or later housing revision.
3. Mechanical inspection — inspect the terminal housing, screw terminals, mounting points, connector interface, plastic cover, and locking features for cracks or deformation.
4. Terminal inspection — verify all field terminals for damaged threads, stripped screws, corrosion, loose hardware, or recessed contacts.
5. Continuity verification — check representative circuit-to-electronics paths against the wiring documentation.
6. Power-path verification — confirm the appropriate 5 V logic and 12/24 V field-power paths using a controlled test setup.
7. Electronics-interface verification — mate the terminal assembly with a known-good compatible /IC660EBD025 configuration and confirm correct electrical engagement.
8. Genius communication handshake — verify that the complete assembled block communicates correctly with a compatible Genius controller.
9. Digital I/O test — exercise representative input and output circuits and confirm correct state transfer.
10. Filter-response verification — where supported by the test configuration, verify representative configured input-filter behavior.
11. Diagnostic verification — confirm expected block status, I/O status, and monitoring-interface behavior.
12. Final QC record — document exact part number, revision, compatible electronics tested, terminal continuity results, I/O results, photographs, and packaging condition.

For a Genius terminal assembly, visual inspection alone is insufficient. Terminal integrity, correct mating with the BBD025 electronics, power-path continuity, and complete-block I/O communication are the useful acceptance criteria.

Module 6: CRO-Driven Buyer FAQ

1. Is GE IC660TBD025 obsolete, and how do I verify an authentic replacement?

The is legacy GE Fanuc Genius I/O hardware and is identified in GE documentation as the terminal assembly for the 32-circuit DC I/O block. For procurement, verify the complete marking, terminal revision, and corresponding BBD025 electronics before accepting a replacement.

2. Can I hot-swap the ?

Do not assume energized terminal replacement is safe. Although Genius systems support certain online maintenance functions, the terminal assembly can be connected to externally powered 5/12/24 VDC field circuits. Isolate the affected field power and follow the applicable Genius maintenance procedure before disconnecting the terminal wiring.

3. Will replacing require PLC programming?

No. The terminal assembly contains the field termination and interface hardware rather than the PLC application. After replacement, verify all terminal positions, the associated BBD025 electronics, Genius block address, and I/O operation.

4. Which I/O block uses ?

GE documentation directly associates with the 32-circuit DC discrete I/O block, with IC660EBD025 identified as the corresponding electronics assembly. It should not be assumed compatible with every BBD-series module.

5. What are the key electrical specifications?

The associated BBD025/TBD025 configuration is rated for 5/12/24 VDC applications, with 0.5 A maximum output current per circuit, selectable 1–100 ms input filtering, and approximately 850 VAC block-to-block isolation. Exact field-current limits should be checked against the specific load and electronic assembly.

Warranty and Technical Support

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact terminal-part verification, compatibility, revision identification, terminal mapping, continuity testing, Genius communication checks, and documented pre-shipment QA. Live DC field rewiring and process commissioning remain the responsibility of qualified automation personnel.
