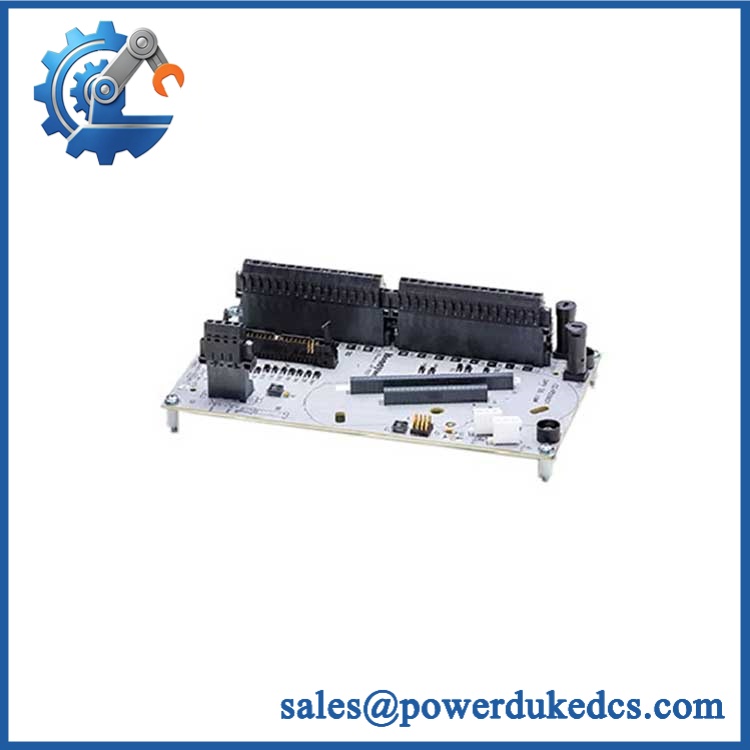

HONEYWELL DC-TAIL51 | Original Series C Control Spare

Description

1. HONEYWELL DC-TAIL51 | Original Series C Control Spare

At-A-Glance Executive Brief

• Model: DC-TAIL51
• Brand: HONEYWELL
• Series: Experion PKS Series-C I/O
• Part Type: Low Level Analog Input IOTA (Interface Board)
• Core Function: Provides the termination and interface connection for Honeywell Series-C low-level analog input modules used for thermocouple and RTD temperature measurement.
• Key Specs:
  • Supports 16 temperature input channels.
  • Compatible with CC-PAIL51 Low Level Analog Input IOP module.
  • Input types: Thermocouple (TC) and RTD.
  • Channel-to-channel and channel-to-power isolation.
  • 9-inch IOTA size format.
  • Designed for Honeywell Experion PKS control architectures.

Product Introduction

Structure B — Technical Direct

Installed beneath the Honeywell Series-C I/O architecture, the DC-TAIL51 serves as the IOTA interface for the CC-PAIL51 low-level analog input module. The assembly provides field wiring termination, signal conditioning support, and the physical connection between temperature sensors and the control system I/O electronics.

In field deployments, this IOTA is used in process plants where accurate temperature acquisition is required across multiple measurement points (—including furnaces, reactors, and thermal process equipment). The DC-TAIL51 itself does not execute control logic; it works as the hardware interface layer supporting the associated IOP module. Before replacement, confirm the installed IOP type, terminal arrangement, and Experion PKS configuration database.

Core Technical Specifications

HONEYWELL DC-TAIL51

Application Scenarios & Pain Points

Micro-case study approach:

A chemical processing facility begins receiving unstable temperature readings from several reactor monitoring points. The CC-PAIL51 module passes diagnostics, but inspection reveals damaged termination hardware on the associated IOTA. Replacing the DC-TAIL51 restores proper sensor connection without replacing the complete I/O assembly.

• Chemical Processing Plants: Supports reactor and vessel temperature monitoring using RTD and thermocouple sensors.
• Oil & Gas Facilities: Used for temperature measurement loops in process control environments.
• Power Generation: Interfaces temperature sensors for auxiliary equipment monitoring.
• Manufacturing Furnaces: Handles multi-point thermal measurement where accurate readings are required.
• Legacy Experion PKS Systems: Maintains existing Series-C installations during lifecycle extension projects.

For cabinets exposed to 50°C+ internal temperatures, inspect terminal connections and I/O cabinet ventilation. Temperature input errors are sometimes caused by environmental stress rather than the IOTA electronics.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Temperature Input Channel Failure / Bad PV Status
→ Diagnosis: Loose field termination, damaged terminal contacts, or signal path interruption between sensor and IOP module.
→ Action: Check field wiring and replace the DC- if the termination interface is damaged.

Symptom/Code: Multiple TC/RTD Channels Showing Faults
→ Diagnosis: Shared IOTA connection problems, incorrect sensor wiring, or interface board failure may affect several channels simultaneously.
→ Action: Verify sensor loops and replace the IOTA assembly if required.

Symptom/Code: IOP Module Communication Present but No Valid Temperature Data
→ Diagnosis: The CC-PAIL51 may be healthy while the connected termination interface has a hardware issue.
→ Action: Inspect the DC- connection path and replace the unit if defective.

Cross-Reference & Lifecycle Migration

• Compatible Components:
  • Honeywell
  • Honeywell
  • Honeywell CC-PAIL51 Low Level Analog Input Module
• Replacement Considerations:
  • Confirm Series-C I/O cabinet design.
  • Verify IOTA size and mounting position.
  • Confirm terminal wiring before removal.
• Firmware Requirement:
  The DC- is an interface assembly and does not contain application firmware. Compatibility depends on the installed Series-C I/O module and Experion configuration.
• Lifecycle Status: Active / Installed Base Support

For spare inventory control, store the IOTA with terminal protection covers and retain the original wiring documentation. Incorrect terminal mapping can create commissioning delays.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace the IOTA without documenting field wiring first.
   TC and RTD connections are sensitive to polarity and wiring configuration. A single swapped terminal can create incorrect temperature values.
2. Avoid handling the connector surfaces directly.
   Keep the interface contacts clean. Contamination on I/O connections may introduce intermittent measurement faults.

Strict QA & Testing SOP

A professional inspection process for HONEYWELL DC- should include:

Step 1 — Incoming Inspection

• Verify model marking: DC-.
• Check terminal blocks and connectors.
• Inspect PCB surface and mounting hardware.
• Record hardware condition.

Step 2 — Electrical Verification

• Confirm continuity through termination points.
• Check connector integrity.
• Verify isolation between channels where applicable.

Step 3 — Functional Testing

• Install with compatible CC- module.
• Apply simulated TC/RTD signals.
• Verify channel recognition.
• Confirm stable temperature readings.

Step 4 — Configuration Review

• Verify Experion PKS I/O assignment.
• Confirm channel mapping.
• Record replacement details.

Step 5 — Packaging Control

• Use ESD protective packaging.
• Protect terminal connectors.
• Include inspection records.

Inspection photos, continuity reports, and functional test records are available for verification.

Buyer’s FAQ (Dynamic Q&A)

Q1. Can the Honeywell DC- be hot-swapped?

A: Replacement procedures depend on the Experion PKS cabinet design and maintenance policy. Always follow approved I/O replacement procedures before removing the IOTA.

Q2. “How do I verify this is a genuine DC-?”

A: Check the Honeywell part label, IOTA identification, terminal layout, hardware revision, and supplier inspection documentation.

Q3. Does the DC- include firmware?

A: No. The IOTA is a passive interface assembly. Firmware resides in the associated Series-C I/O module.

Q4. What warranty documentation should be requested?

A: Request condition details, inspection records, traceability information, and written warranty coverage. For process control I/O hardware, documented testing is important before installation.
