1. HONEYWELL CC-PAIN01 | Original Honeywell C300 Spare Module

2. At-A-Glance Executive Brief

• Model: HONEYWELL CC-PAIN01
• Brand: Honeywell
• Series: Experion PKS Series-C I/O
• Part Type: High-Level Analog Input Module
• Core Function: Receives standard 4–20 mA signals from field transmitters and converts process measurements into digital values for Honeywell control processors.
• Primary Use: Pressure, flow, level, and temperature transmitter integration in Honeywell C300-based DCS architectures.
• Key Specifications:
  • 16 single-ended analog input channels
  • 4–20 mA current input
  • Supports 2-wire and self-powered transmitters
  • 16-bit A/D conversion
  • 50 ms input scan rate
  • Optional redundant installation
  • Non-incendive field power support for Class I, Division 2 applications

3. Product Introduction

The Honeywell CC-PAIN01 is installed within a Series-C I/O architecture as the analog measurement interface between field transmitters and the Experion PKS control environment. It accepts high-level current inputs and provides the signal processing required for reliable process monitoring and control.

In field deployments, this module is commonly found in refinery, chemical, and utility control cabinets where transmitter availability directly affects operator visibility. The hardware supports standard 4–20 mA loops without HART communication, making it suitable for conventional instrumentation circuits (verify the transmitter type before replacement because HART requirements require a different module family).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model Number	CC-PAIN01
Product Type	High-Level Analog Input Module
System Platform	Experion PKS Series-C I/O
Input Channels	16 channels
Channel Configuration	16 single-ended inputs
Input Signal Type	Current input
Supported Transmitters	2-wire or self-powered transmitters
Input Range	4–20 mA
Input Resistance	200 Ω
A/D Resolution	16 bits
Input Scan Rate	50 ms
Common Mode Rejection	70 dB (DC to 60 Hz)
Normal Mode Rejection	20 dB at 60 Hz
Maximum Input Voltage	±30 V
Crosstalk	-60 dB
Accuracy	±0.075% full scale at 23.5°C ±2°C; ±0.15% full scale from 0–60°C
Filter Response	Single-pole RC, -3 dB at 6 Hz
Field Power	Individually protected current limiting circuits
Hazardous Area Support	Class I, Division 2 non-incendive interfacing
Compatible IOTA	CC-TAIN01 (non-redundant), CC-TAIN11 (redundant)
Weight	Approx. 0.35 kg module weight

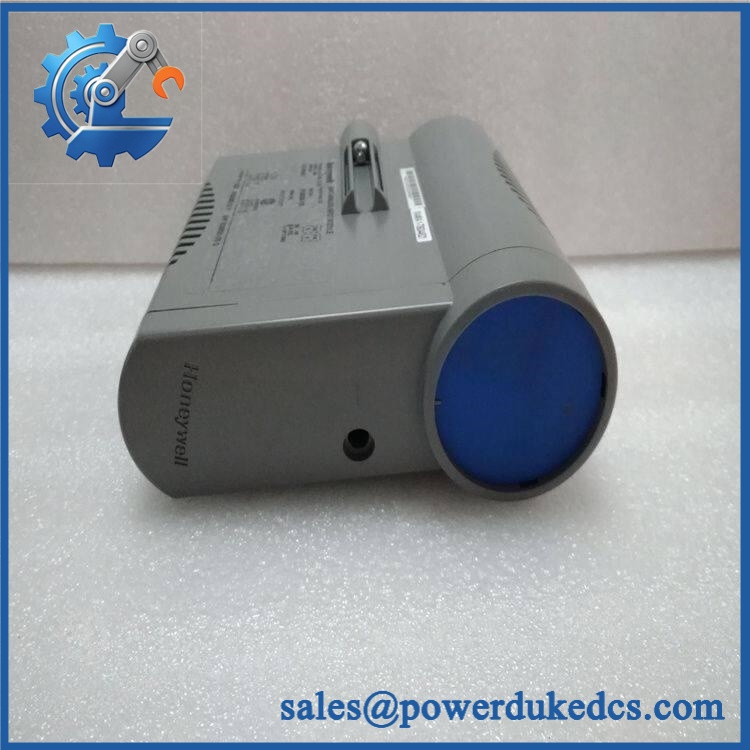

HONEYWELL CC-PAIN01

5. Application Scenarios & Pain Points

A faulty analog input channel can create misleading process information long before a complete I/O module failure occurs.

• Refinery measurement loops: The CC-PAIN01 acquires transmitter signals for pressure and flow monitoring where incorrect readings can affect operating decisions.
• Chemical processing units: Standard 4–20 mA instruments connect directly to the module for continuous process supervision.
• Power generation plants: Used for monitoring auxiliary equipment parameters such as temperature, pressure, and flow.
• Offshore facilities: Non-incendive field power capability supports installations requiring additional hazardous-area considerations.
• Legacy Experion PKS systems: Existing Series-C cabinets often maintain spare analog modules to reduce recovery time during maintenance events.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: I/O Module Fault LED Active
→ Diagnosis: Possible internal electronics failure, rack communication problem, or configuration mismatch.
→ Action: Check Experion diagnostics and replace the CC-PAIN01 if module failure is confirmed.

Symptom/Code: Channel Reading Stuck at 0 mA or 20 mA
→ Diagnosis: Possible transmitter loop issue, broken wiring, incorrect scaling, or damaged input channel.
→ Action: Verify field current with a calibrated source, then replace the module if the input circuit fails.

Symptom/Code: Incorrect Analog Value Compared With Field Instrument
→ Diagnosis: Possible configuration mismatch, grounding issue, or degraded measurement circuitry.
→ Action: Verify engineering parameters and replace hardware when the input channel is defective.

7. Cross-Reference & Lifecycle Migration

• Related Hardware:
  • CC-PAIN01 — standard Series-C 4–20 mA analog input module.
  • CC-PAIH02 — HART-enabled analog input alternative for transmitter diagnostics.
  • CC-PAIH51 — Series-C HART analog input module.
• Compatibility Notes:
  • Confirm Series-C I/O rack compatibility.
  • Match the correct IOTA:
    • CC-TAIN01 for non-redundant configuration.
    • CC-TAIN11 for redundant configuration.
  • Verify Experion PKS database configuration.
• Firmware Requirements:
  The module itself is not a standalone controller. Firmware compatibility depends on the Experion PKS release and installed I/O configuration.
• Lifecycle Status: Active / Mature Installed Base Component
  • Commonly maintained in operating Honeywell Series-C systems.
  • Recommended spare strategy: keep tested units for critical measurement loops.
• Migration Strategy:
  Moving to newer Honeywell platforms may require I/O database conversion, cabinet changes, and loop commissioning.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace a HART module with a standard analog input module.
   The CC-PAIN01 handles conventional 4–20 mA signals only. If transmitter diagnostics are required, select the correct HART-capable hardware.
2. Check the IOTA before installation.
   The terminal assembly determines whether the module is configured for redundant or non-redundant operation (incorrect pairing can prevent proper startup).

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell CC-PAIN01 identification.
• Record serial number and hardware revision.
• Inspect module housing and connectors.
• Photograph physical condition.

Step 2 — Electrical Inspection

• Check connector pins.
• Inspect for corrosion, contamination, or overheating marks.
• Verify module power interface.

Step 3 — Rack Recognition Test

• Install into compatible Series-C test chassis.
• Confirm module identification.
• Check diagnostic indicators.

Step 4 — Analog Signal Testing

• Apply calibrated 4–20 mA signals.
• Verify channel scaling.
• Confirm stable readings across all 16 inputs.

Step 5 — Packaging Control

• Place module inside ESD shielding packaging.
• Protect connector surfaces.
• Use shock-resistant packaging for international shipment.

Test videos are available for verified inspection records.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the Honeywell CC-PAIN01 be hot-swapped?

A: Do not assume live replacement is permitted. Follow Honeywell Series-C maintenance procedures and verify the cabinet design before removing the module.

Q: How can I confirm this is an original CC-PAIN01?

A: Check the Honeywell label, complete part number, revision marking, connector condition, and functional test documentation.

Q: Does the CC-PAIN01 include transmitter configuration software?

A: No. The module provides analog signal acquisition only. Channel scaling, alarms, and control parameters are stored within the Honeywell Experion PKS configuration.

Q: What warranty details should be confirmed before purchase?

A: Confirm warranty duration, analog channel testing coverage, inspection records, and whether the unit is New Original, New Surplus, or refurbished. For DCS I/O modules, documented functional testing is important before installation.
