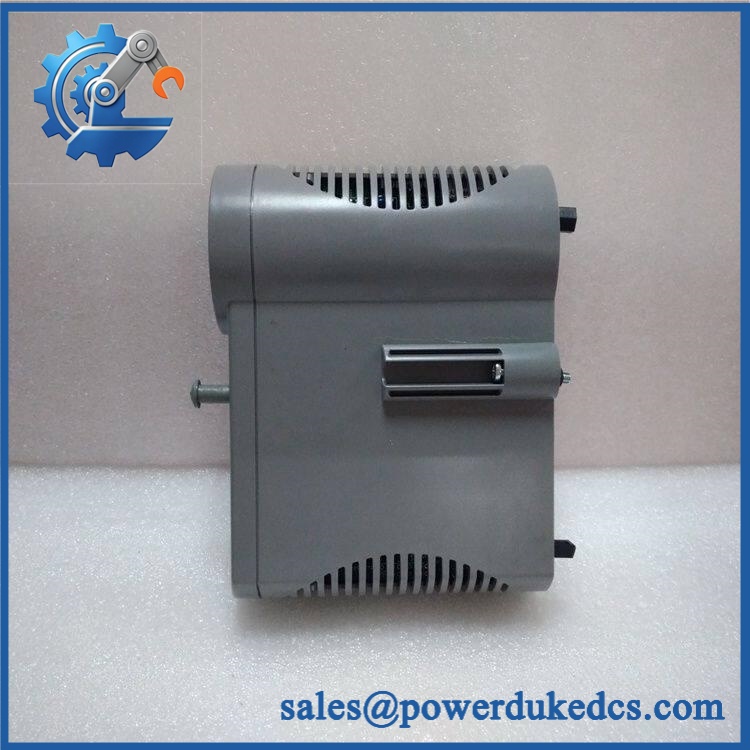

HONEYWELL CC-PAOH01 | Factory Tested Analog I/O Module

• Model: CC-PAOH01 (User listed: CC-PAOH0; standard catalog format is typically completed as CC-PAOH01)
• Brand: HONEYWELL
• Series: Experion PKS Series C I/O
• Part Type: Analog Output Module / HART Analog Output IOP
• Core Function: Provides isolated analog current outputs for field devices such as control valves, actuators, and process regulators within Honeywell control systems.
• Key Specs:
  • 16-channel analog output configuration.
  • 4–20 mA current output capability.
  • HART communication support.
  • Series C I/O architecture compatibility.
  • Hot-swappable I/O module design (system procedure dependent).
  • Used with Honeywell Experion PKS and C300 controller environments.

Product Introduction

Structure B — Technical Direct

Installed within Honeywell Experion PKS Series C I/O assemblies, the CC-PAOH01 functions as an analog output interface between the control processor and field-level final control elements. The module converts digital control commands from the controller into precise analog current signals used by valves, positioners, and other process equipment.

In field deployments, this type of output module is commonly installed in process plants where hundreds of analog loops require stable regulation (—especially for continuous operation applications such as flow, pressure, and temperature control). Before replacement, verify the IOTA assembly, channel configuration, HART requirements, and Experion database assignment. A physically identical module still requires correct configuration data to operate correctly.

Core Technical Specifications

HONEYWELL CC-PAOH01

Application Scenarios & Pain Points

Micro-case study approach:

A refinery control loop begins showing unstable valve positioning on several process lines. Field technicians confirm the actuators are functional, but output current from the control cabinet is inconsistent. Testing identifies the analog output module as the source of the signal degradation. Replacing the CC-PAOH01 restores stable 4–20 mA control.

• Oil & Gas Processing: Drives control valves for pressure, flow, and level regulation.
• Chemical Plants: Provides analog signals to actuators and regulating equipment.
• Power Generation: Supports auxiliary process control loops requiring precise output signals.
• Water Treatment Facilities: Controls pumps, valves, and dosing equipment.
• Manufacturing Plants: Maintains legacy Experion PKS analog control infrastructure.

For cabinets operating above 50°C internal temperature, inspect I/O ventilation and power supply loading. Excessive heat can accelerate aging of analog conversion components and terminal connections.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Analog Output Channel Fault
→ Diagnosis: Output circuit failure, wiring issue, or damaged channel electronics may prevent correct current generation.
→ Action: Verify field loop resistance and replace CC-PAOH01 if the output channel fails testing.

Symptom/Code: 4–20 mA Signal Frozen or Incorrect
→ Diagnosis: Configuration mismatch, failed DAC circuitry, or communication issue between controller and I/O module.
→ Action: Check engineering configuration and replace the module if hardware failure is confirmed.

Symptom/Code: HART Communication Failure
→ Diagnosis: HART resistance, wiring condition, or module communication circuitry may be defective.
→ Action: Verify loop requirements and replace the output module if diagnostics indicate failure.

Cross-Reference & Lifecycle Migration

• Compatible Platform:
  • Honeywell Experion PKS Series C I/O
  • C300 Controller architecture
• Related Components:
  • CC-TAOX01 — Analog Output IOTA interface
  • Series C I/O terminal assemblies
• Replacement Considerations:
  • Confirm module revision.
  • Verify IOTA compatibility.
  • Backup channel configuration before removal.
  • Confirm HART device requirements.
• Firmware Requirement:
  Firmware compatibility depends on the installed Series C I/O revision and Experion PKS configuration.
• Lifecycle Status: Active / Installed Base Support

For spare stock management, retain module revision records and Experion configuration backups. Analog output modules should be stored in ESD-safe packaging to prevent connector and PCB damage.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not troubleshoot only from the controller side.
   A failed field cable, actuator input, or loop power issue can create symptoms identical to a defective analog output module.
2. Verify the IOTA connection before installing a replacement.
   Poor contact between the module and terminal assembly can create intermittent output faults that appear random during operation.

Strict QA & Testing SOP

A professional inspection process for HONEYWELL CC- should include:

Step 1 — Incoming Inspection

• Verify model number and revision label.
• Inspect housing, connectors, and terminal interface.
• Check for contamination or mechanical damage.

Step 2 — Electrical Verification

• Apply approved 24 VDC supply.
• Measure output current accuracy.
• Verify channel isolation.
• Check module startup diagnostics.

Step 3 — Functional Testing

• Install into a compatible Series C test rack.
• Configure output channels.
• Simulate 4–20 mA loads.
• Verify HART communication where applicable.

Step 4 — Configuration Review

• Confirm Experion PKS compatibility.
• Verify I/O database assignment.
• Record firmware revision.

Step 5 — Packaging Control

• Use anti-static ESD packaging.
• Protect terminal contacts.
• Include inspection records.

Test videos, output measurement records, and inspection photographs are available for quality verification.
