HONEYWELL CC-PDIS01 | New Surplus Series C Process I/O Module Available Worldwide

Description

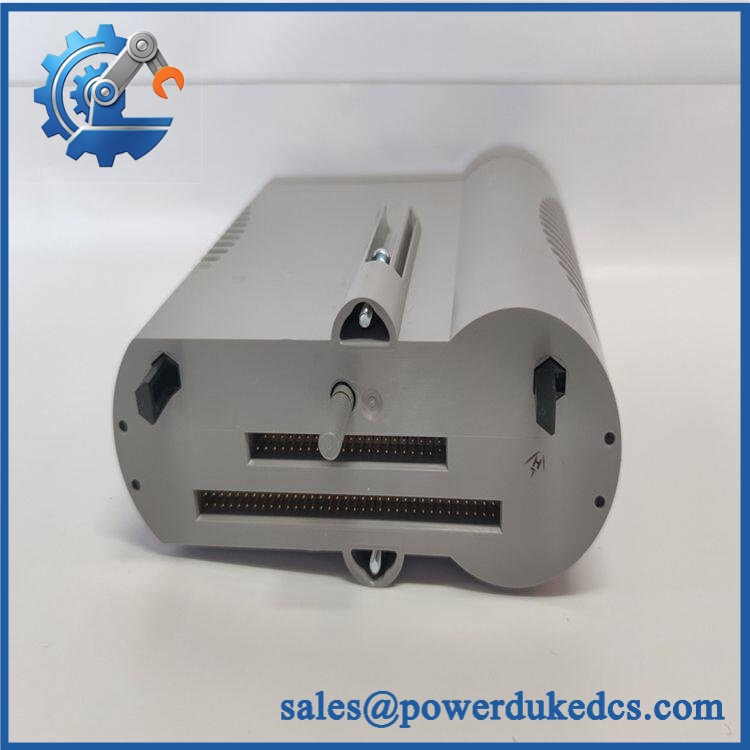

• Model: HONEYWELL CC-PDIS01
• Brand: Honeywell
• Series: Experion PKS Series C I/O
• Part Type: Digital Input Module
• Core Function: Receives discrete field signals from switches, sensors, and protective devices and transfers status information into the DCS.
• Key Specs: 32-channel digital input design, Series C I/O architecture compatibility, 24 VDC field signal interface, channel diagnostics, support for redundant system configurations.
• Typical Use: Motor status monitoring, valve feedback, alarms, interlocks, and process equipment status collection.

Product Introduction

A missing equipment status signal can delay troubleshooting and create uncertainty during plant operation. The HONEYWELL CC-PDIS01 is a Series C Digital Input (DI) module designed for Honeywell Experion PKS distributed control systems, providing reliable acquisition of discrete field signals.

Installed within the Honeywell Series C I/O architecture, the CC-PDIS01 collects on/off status information from field devices such as limit switches, pressure switches, motor starters, and alarm contacts. In field deployments (particularly in mature process facilities), maintaining compatible DCS I/O modules helps avoid unnecessary cabinet modifications during maintenance activities.

Core Technical Specifications

HONEYWELL CC-PDIS01

Application Scenarios & Pain Points

During compressor maintenance operations, engineers often investigate digital input modules when motor running feedback or equipment permissive signals disappear from the control system.

In oil and gas processing plants, the CC-PDIS01 collects critical status information from field devices including valve limit switches, shutdown contacts, and alarm circuits.

For power generation facilities, reliable digital status acquisition supports monitoring of auxiliary equipment such as pumps, breakers, and cooling systems.

With a functioning CC-PDIS01, operators receive accurate equipment status indications. Without it, affected points may appear unavailable, generate false alarms, or prevent automatic sequences from starting.

Inside automation cabinets exposed to vibration and temperatures above 50°C, technicians should inspect terminal connections and I/O carrier contacts because mechanical degradation can imitate module failure.

? Common Error Codes & Diagnostic Symptoms

Symptom/Code: Digital Input Channel Fault / Bad Quality Status
→ Diagnosis: Field wiring problems, incorrect input voltage, or internal channel electronics failure may prevent proper signal detection.
→ Action: Verify field voltage and wiring, then replace the CC- if hardware failure is confirmed.

Symptom/Code: Multiple DI Points Lost Simultaneously
→ Diagnosis: A module-level fault or communication issue may affect several digital inputs at the same time.
→ Action: Check I/O communication status and replace the module if required.

Symptom/Code: Incorrect ON/OFF Indication in Experion PKS
→ Diagnosis: Input configuration mismatch, contact bounce, or module input circuitry issues may cause incorrect status reporting.
→ Action: Verify configuration parameters and replace defective hardware.

Cross-Reference & Lifecycle Migration

• Original Model: HONEYWELL CC-
• System Compatibility: Honeywell Experion PKS Series C I/O systems.
• Module Category: Digital Input (DI) process I/O module.
• Replacement Considerations:
  • Verify the installed IOTA and terminal assembly.
  • Confirm field voltage requirements.
  • Check channel assignment documentation.
  • Match hardware revision where required.
• Firmware Requirement: Configuration compatibility should be verified with the installed Experion PKS release. The module itself does not replace the need for correct engineering database settings.
• Lifecycle Status: Active / Supported
  • Series C I/O hardware remains installed across many industrial process facilities.
  • Maintaining spare digital input modules helps reduce downtime during unexpected I/O failures.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace the DI module before measuring the field signal.
   A failed proximity switch, broken cable, or missing 24 VDC supply can produce the same symptom as a defective CC-.
2. Label every terminal before removing the module.
   Digital input wiring often includes interlocks and permissive circuits where one incorrect connection can affect automatic sequences.

Strict QA & Testing SOP

A professional inspection process for the HONEYWELL CC- includes:

1. Inbound Verification
   • Confirm Honeywell model number and product label.
   • Record serial number and hardware revision.
2. Physical Inspection
   • Inspect enclosure, connectors, PCB condition, and terminal interface.
   • Check for corrosion, overheating marks, or mechanical damage.
3. Power-Up Testing
   • Install the module in a compatible Series C I/O test rack.
   • Verify diagnostic LEDs and controller recognition.
4. Digital Input Testing
   • Apply simulated 24 VDC input signals.
   • Test each channel response.
   • Verify ON/OFF status reporting.
5. Communication Testing
   • Confirm communication with Experion PKS controller hardware.
   • Verify module diagnostics.
6. Configuration Verification
   • Check channel addressing.
   • Confirm input status matches engineering configuration.
7. Final Packaging
   • Apply anti-static protection.
   • Secure connectors for international shipment.

Test videos and inspection records are available for qualified purchasing requests.

Buyer’s FAQ

Q1: What is the HONEYWELL CC- used for?

A: It is a digital input module for Honeywell Experion PKS Series C systems, used to collect discrete field device status signals.

Q2: Can the CC- replace any Honeywell digital input module?

A: No. Replacement depends on the exact Series C I/O configuration, IOTA type, field voltage requirements, and system engineering settings.

Q3: Does this module require field configuration after replacement?

A: Yes. The physical replacement should be followed by verification of I/O configuration, channel assignment, and controller communication.

Q4: What should I check before purchasing a spare CC-?

A: Confirm the complete part number, hardware revision, installed system platform, test records, and warranty conditions before ordering.
