1. Honeywell CC-TDIL01 | Traceable Series C DCS Component

2. Unboxing & Physical Snapshot

• Brand & Model: Honeywell CC-TDIL01
• Product Category: Experion PKS Series C Digital Input I/O Termination Assembly (IOTA)
• Application: Honeywell Experion Series C I/O architecture. The CC-TDIL01 is the non-redundant IOTA associated with the CC-PDIL01 24VDC Digital Input module and supports a 32-channel discrete input configuration.
• Approximate Physical Dimensions: Approximately 150 × 30 × 120 mm (5.9 × 1.2 × 4.7 in), depending on installed accessories and mounting arrangement.
• Estimated Shipping Weight: Approximately 0.38-0.45 kg (0.8-1.0 lb) before export packaging.
• What’s in the Box:
  • Honeywell CC-TDIL01 I/O Terminal Assembly
  • Terminal interface hardware
  • Identification label
  • ESD protective packaging
  • Mounting accessories when supplied with OEM inventory
  • Documentation when included

3. Product Introduction

The Honeywell CC-TDIL01 is installed at the field interface layer of an Experion PKS Series C control cabinet, where discrete plant signals enter the automation system. It supports the 24VDC Digital Input module architecture by providing the physical termination path for field wiring (critical for shutdown circuits, status feedback, and equipment permissive signals).

This assembly is not a standalone processor. It works with the associated Series C I/O module and carrier arrangement. Inspect the terminal blocks, connector seating surfaces, and mounting clips before installation. A damaged IOTA can create intermittent field indication problems that appear to originate from field devices rather than cabinet hardware.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model Number	CC-TDIL01
Associated Module	CC-PDIL01 Digital Input 24VDC
Product Family	Experion PKS Series C I/O
Product Type	Digital Input IOTA / Terminal Assembly
Input Channels	32 channels
Signal Type	24VDC discrete input
Configuration	Non-redundant
IOTA Size	9-inch non-redundant configuration
Input Voltage Range	18 to 30 VDC
ON Sense Voltage	13 VDC minimum
ON Sense Current	3 mA minimum
OFF Sense Voltage	5 VDC maximum
OFF Sense Current	1.2 mA maximum
Input Impedance	4.2 kΩ
Isolation Method	Optical isolation in associated I/O module
Galvanic Isolation Rating	1500 VAC RMS or ±1500 VDC
Input Filter Delay	5 ms ±20%
Power Consumption	Passive termination assembly; system dependent
Heat Dissipation	Dependent on associated I/O module operation

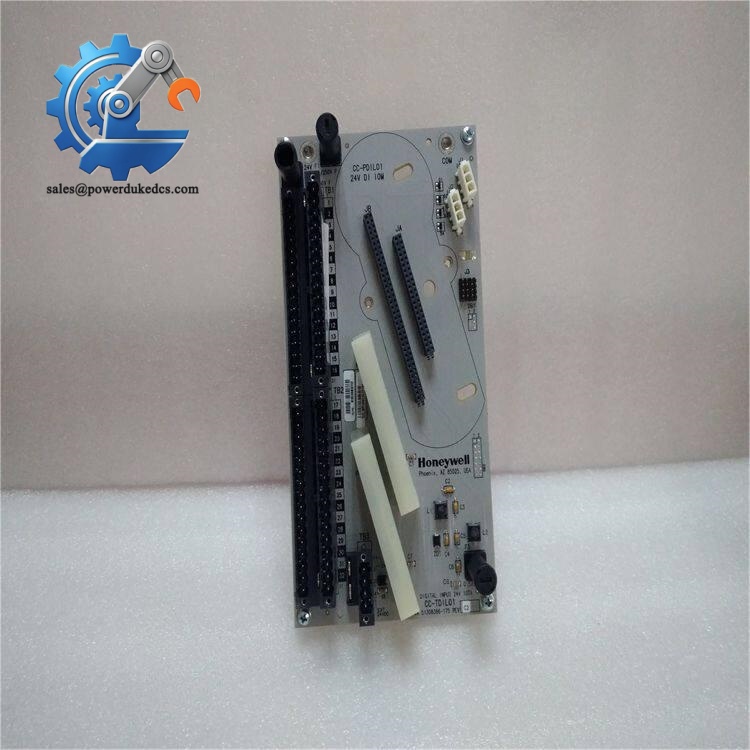

Honeywell CC-TDIL01

5. Global Compliance & Industry Certifications

Expected regulatory considerations for this class of industrial DCS hardware may include:

• CE Mark for applicable electromagnetic compatibility requirements.
• UL/cUL Recognition or Listing when installed within approved industrial control assemblies.
• ATEX/IECEx compatibility when integrated into certified hazardous-area signal systems.
• Marine approvals such as DNV GL when installed in approved offshore or vessel automation systems.

For hazardous-area installations, the IOTA alone does not establish compliance. The complete signal path—including field device, wiring method, barriers, I/O module, and cabinet design—must match the approved protection scheme.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the CC-TDIL01 sealed in its original protective packaging until installation. Terminal surfaces should remain free from dust and oxidation.
• Maintain warehouse humidity below 60% RH. Moisture exposure can degrade terminal plating and plastic mounting structures over extended storage periods.
• Perform periodic inspection every 12-24 months. Check terminal screws, connector interfaces, housing condition, and identification labels (traceability failures during audits often begin with damaged inventory markings).

7. Physical Installation Prerequisites

• Confirm compatibility with the Honeywell CC-PDIL01 24VDC Digital Input module before installation.
• Install the assembly on the designated Series C I/O carrier structure.
• Maintain approximately 50 mm clearance above and below cabinet assemblies where possible for airflow and maintenance access.
• Verify cabinet grounding and protective earth bonding.
• Confirm field wiring polarity and termination points before energizing.
• Keep digital signal wiring separated from high-current motor feeders and switching power conductors.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Honeywell CC-TDIL01?
A: Industrial I/O assemblies are commonly reviewed under electrical control equipment classifications, often within HS 8537 or related subheadings. The final classification depends on customs interpretation, destination country requirements, and declared function. One supplier references tariff code 8537101190 for this item; confirm before shipment.

Q: Does Country of Origin (COO) documentation matter for this Honeywell spare?
A: Yes. COO records support customs clearance, supplier qualification, and lifecycle asset tracking. Retain OEM labels, serial information, and receiving inspection documents with the spare-part record.

Q: Should shipping insurance be purchased for the CC-TDIL01?
A: Yes. Although it is not a processor module, the terminal assembly can be damaged by impact, connector stress, or moisture exposure. Use rigid packaging, ESD protection, and declared-value coverage.

Q: Does the CC-TDIL01 include the latest firmware pre-loaded?
A: No. The CC-TDIL01 is an I/O termination assembly and does not contain firmware. Software compatibility is managed through the associated Honeywell Experion PKS configuration and connected CC-PDIL01 I/O module.
