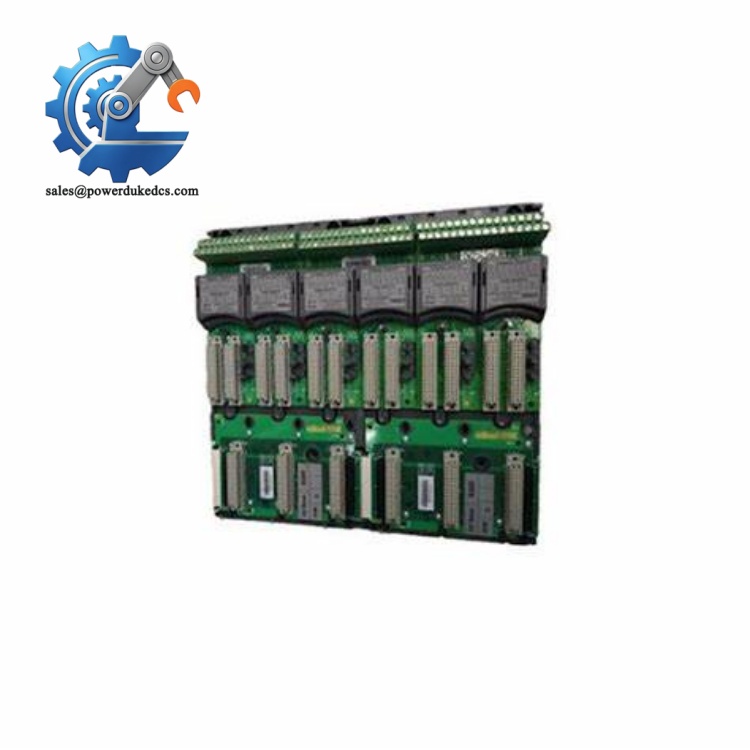

1. ICS Triplex T9300 | 24VDC Redundant I/O Base Module

2. Unboxing & Physical Snapshot

• Model & Brand: ICS Triplex T9300
• Product Type: Trusted™ I/O Base Unit / Backplane Assembly for ICS Triplex safety systems. The T9300 provides the physical mounting platform, communication buses, and power distribution path for installed I/O modules.
• Approximate Physical Dimensions (W × H × D):
  • Approximately 126 × 235 × 20 mm
  • Designed for modular installation within Trusted I/O assemblies.
• Estimated Shipping Weight:
  • Unit weight: approximately 0.13–0.22 kg depending on configuration and accessories.
  • Typical packaged shipping weight: approximately 0.5 kg
• What’s in the Box:
  • ICS Triplex T9300 I/O Base Unit
  • Backplane assembly
  • Mounting hardware / retaining features
  • Identification label
  • Anti-static (ESD) protection bag
  • Protective packaging
  • Documentation when supplied

3. Product Introduction

The ICS Triplex T9300 forms the physical foundation of the Trusted I/O cabinet architecture. Installed beside the processor base or adjacent I/O base units, it provides the mechanical slot structure and internal bus connections required for safety I/O modules. The backplane carries command signals, response buses, and redundant system power (which is critical when maintaining certified safety architectures).

This component contains no field signal processing itself. Treat it as infrastructure hardware, not an active controller module. The connector alignment, retaining clips, and bus contacts must remain clean because a damaged base unit can interrupt communication with every attached I/O module. Verify chassis arrangement drawings before replacement.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex
Model	T9300
Product Family	Trusted™ Safety System
Module Type	I/O Base Unit / Backplane
Application	Trusted I/O module mounting and interconnection
Supported I/O Modules	1, 2, or 3 I/O modules
Power Supply	Redundant +24 VDC nominal
Supply Range	18–32 VDC
Command Buses	1
Response Buses	24
Maximum Base Units per Bus	Up to 8
Maximum I/O Modules per Bus	Up to 24
Processor Function	None
Firmware Storage	None
Memory	None
Power Consumption	Passive distribution unit
Heat Dissipation	Minimal; no active processing circuitry
Communication Interface	Internal Trusted bus
Expansion Capability	Supports T9310 expansion connection
Mounting Method	Trusted rack mechanical assembly
Operating Temperature	Approximately -25°C to +70°C
Storage Temperature	Approximately -40°C to +85°C
Humidity	5–95% RH non-condensing

ICS Triplex T9300

5. ? Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex T9300 include:

• CE Mark: Applicable when installed as part of a complete Trusted safety system assembly meeting EMC requirements.
• IEC 61508 Functional Safety: The T9300 is used within certified safety architectures, including SIL-related system configurations.
• UL/cUL Listed: May apply depending on the complete control system certification package.
• ATEX / IECEx: The T9300 is not a standalone hazardous-area device. Hazardous-area suitability depends on enclosure design, field interfaces, and complete system approval.
• Marine Approvals (DNV GL): Applicable only when installed within approved marine automation equipment.

The base unit is mechanically passive, but it directly affects safety system availability. Incorrect bus connections or damaged connectors can create system faults during commissioning.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the T9300 inside its original anti-static shielding bag during storage. Protect the exposed backplane connectors because oxidation or contamination can create intermittent bus communication problems after installation.

Maintain warehouse humidity below 60% RH. Even without active electronics, plated contacts and connector surfaces can degrade in uncontrolled environments.

Inspect stored units every 12–24 months. Check the connector pins, retaining clips, mounting surfaces, and identification labels. Avoid stacking heavy items on the backplane frame because mechanical deformation may prevent correct module seating.

7. Physical Installation Prerequisites

• Install the T9300 only within the approved ICS Triplex Trusted system architecture.
• Verify the correct cabinet layout and bus position before mounting.
• Ensure the backplane connector surfaces are clean before module insertion.
• Secure adjacent base units using the approved retaining mechanism.
• Confirm redundant 24 VDC power connections before energizing.
• Maintain cabinet airflow paths and allow sufficient clearance around rack assemblies.
• Leave approximately 50 mm clearance above and below ventilation areas where required by cabinet design.
• Confirm protective earth grounding of the cabinet structure.
• Verify expansion cable routing if using additional I/O base units.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for an ICS Triplex T9300 shipment?

A: Industrial control system base units are commonly reviewed under HS 8538 or related industrial automation component classifications. The final tariff code depends on the importing country, declared function, and customs interpretation.

Q: Does Country of Origin (COO) documentation matter for the T9300?

A: Yes. COO documentation supports customs clearance, import requirements, and maintenance asset traceability. Match the COO information with the product label and export documents.

Q: Should the T9300 be shipped with insurance coverage?

A: Recommended. The primary risk is not electronic failure but mechanical damage to the backplane frame, connector alignment features, or mounting points during transport.

Q: Does the ICS Triplex T9300 include firmware pre-loaded?

A: No. The T9300 is a passive I/O base unit and does not contain application firmware, processor memory, or software storage. Firmware management applies to active Trusted processor and I/O modules installed on the base unit.
