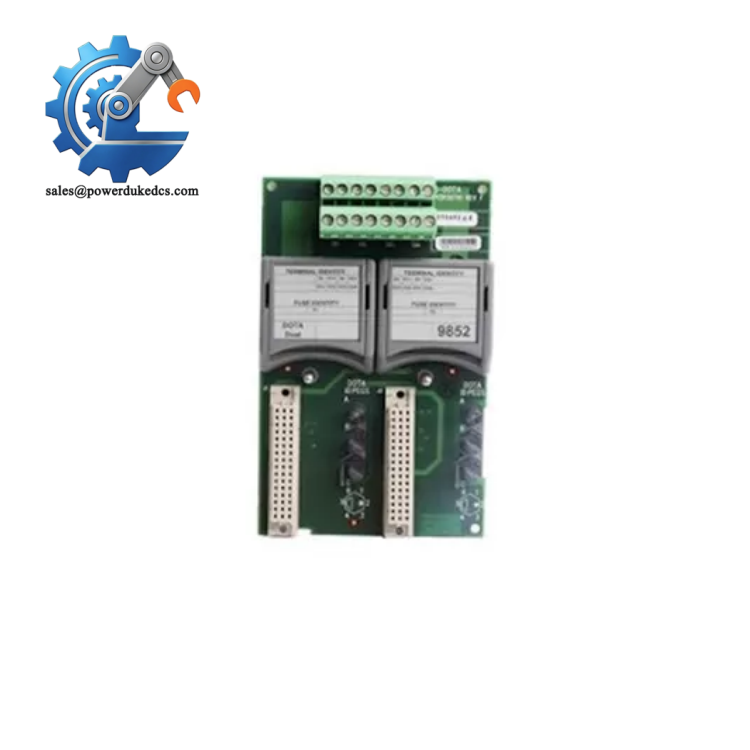

ICS Triplex T9832 | Industrial Control Module Authentic Unit

Description

1. ICS Triplex T9832 | Industrial Control Module Authentic Unit

Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T9832
• Product Family: ICS Triplex Trusted™ Safety System.
• Product Type: Analog output module / termination assembly used within Trusted safety control architectures.
• Primary Function: Provides analog signal interface capability between the Trusted controller system and connected field devices.
• Typical Application: Safety-related process control loops, actuator interfaces, and analog field signal handling.
• Approximate Physical Dimensions (W × H × D): Approximately 130 × 70 × 25 mm for the termination assembly version.
• Estimated Shipping Weight: Approximately 0.2 kg excluding outer shipping protection.
• Mounting Style: Panel or termination assembly mounting depending on system configuration.
• Mechanical Features:
  • Industrial PCB assembly
  • Terminal connection points
  • Protective plastic enclosure
  • Field wiring interface
  • Identification label
• Connection Interface:
  • Field wiring terminals
  • Controller interface connection
  • Signal conditioning components
• What’s in the Box:
  • ICS Triplex T9832 unit
  • Anti-static (ESD) packaging
  • Protective transport material
  • Documentation when supplied

Product Introduction

The ICS Triplex T9832 belongs to the termination and analog interface hardware group used within Trusted safety systems. Its role is physical signal management between field wiring and controller electronics, where correct termination, isolation, and wiring practices directly affect safety loop performance (which is critical during shutdown system testing and compliance inspections).

Handle this assembly as a controlled safety spare. Inspect terminal blocks, PCB surfaces, enclosure condition, and connection points before installation. Check the date code. Small mechanical defects in termination hardware can create intermittent faults that are difficult to reproduce during commissioning.

Core Technical Specifications

ICS Triplex T9832

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex include:

• CE Mark — indicates compliance when installed within the approved Trusted system environment and according to manufacturer installation requirements.
• UL/cUL Recognition — may apply depending on the complete controller and cabinet certification package.
• IEC 61508 Safety System Compatibility — applicable when used as part of a certified Trusted safety architecture.
• ATEX/IECEx Considerations — hazardous-area installations require certified barriers, approved field devices, and a complete system assessment.
• Marine Approvals (DNV GL, ABS, LR) — only applicable when incorporated into a marine-certified automation package.

For plant safety, isolation certification is important because it helps prevent field faults from transferring into controller electronics or creating unsafe signal conditions.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside the original anti-static (ESD) shielding bag until installation. Termination assemblies contain sensitive signal-conditioning components that can be affected by static discharge.
• Maintain storage humidity below 60% RH whenever possible. Moisture can degrade terminal contacts, PCB coatings, and small protective components.
• Store away from corrosive vapors, salt environments, and conductive dust. Termination hardware often fails from contamination rather than electrical stress.
• Inspect terminal screws, connector surfaces, and enclosure clips before field deployment.
• Record serial information, storage date, inspection history, and installation location in the spare asset register.

Physical Installation Prerequisites

• Install the ICS Triplex only according to the approved Trusted system wiring documentation.
• Confirm terminal assignments before connecting field wiring.
• Ensure cabinet grounding and protective earth bonding are correctly installed.
• Maintain cabinet airflow around adjacent electronic modules. Leave at least 50 mm clearance above and below rack assemblies where convection cooling is used.
• Use shielded instrumentation wiring where required by the process application.
• Verify field cable separation from high-voltage power conductors.
• Tighten terminal connections according to approved torque specifications.
• Use ESD protection during handling.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ICS Triplex ?

A: Industrial automation interface assemblies are commonly reviewed under HS 8537 or HS 8538 classifications. The final tariff code depends on the declared function, customs authority, and importing country.

Q: Does COO documentation matter for the ?

A: Yes. Country of Origin records support customs clearance, supplier verification, and audit traceability. Ensure COO information matches the commercial invoice and packing documentation.

Q: Is shipping insurance necessary for this part?

A: Recommended. Although compact, the contains precision termination electronics and connection hardware. Impact damage or moisture exposure may cause field failures during installation.

Q: Does the include the latest firmware?

A: No firmware is normally stored in a passive termination assembly. Firmware status depends on the associated Trusted controller modules and application configuration. Verify the complete system revision before installation.
