1. ICS Triplex T9852 | AADvance Trusted Safety Hardware

2. Unboxing & Physical Snapshot

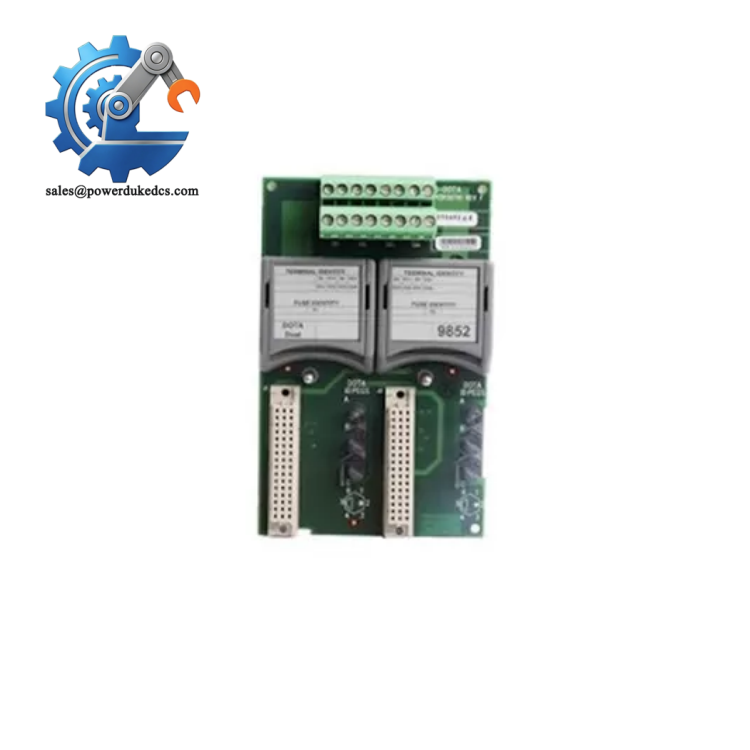

• Model & Brand: ICS Triplex T9852 Digital Output Termination Assembly. This unit is an AADvance digital output terminal assembly designed for use with T9451 Digital Output Modules, supporting dual 8-channel output configurations in safety-related control systems.
• Approximate Physical Dimensions (W × H × D): Approximately 84 × 132 × 28 mm (3.3 × 5.2 × 1.1 in.).
• Estimated Shipping Weight: Approximately 0.26 kg (0.57 lb) for the termination assembly; packaged shipping weight will increase with ESD protection and export packaging.
• What’s in the Box:
  • ICS Triplex T9852 Digital Output Termination Assembly
  • Dual field power connection interface
  • Replaceable field supply fuse holders
  • Terminal connection points
  • Anti-static (ESD) shielding bag
  • Protective packaging
  • Documentation when supplied

3. Product Introduction

The ICS Triplex T9852 mounts directly into the AADvance T9300 I/O base architecture, providing the physical termination interface between digital output modules and field devices. Verify the correct base unit location before installation. The terminal blocks, field power connections, and module sockets require careful alignment during replacement (which is critical in SIL-rated shutdown circuits).

This termination assembly handles the field-side connection of dual digital output channels, supporting two digital output modules in the AADvance safety architecture. It accepts two 24VDC field power sources and incorporates two replaceable 10A protection fuses, one for each supply path. Inspect the fuse covers, terminal screws, coding features, and connector surfaces before installation.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex / Rockwell Automation
Model Number	T9852
Product Type	Digital Output Termination Assembly
System Platform	AADvance Safety Controller
Application	Digital Output Field Termination
Supported Modules	Two T9451 Digital Output Modules
Output Configuration	Dual 8-channel output termination
Field Supply Voltage	24VDC nominal
Field Supply Inputs	Two independent field power sources
Field Supply Protection	Two replaceable 10A fuses
Field Wiring Capacity	Maximum 1.31 mm² (16 AWG)
Terminal Type	Screw clamp field terminals
Mounting Method	T9300 I/O Base Unit
Isolation	Field/system isolation according to system design
Operating Temperature	0°C to +60°C typical
Storage Temperature	-25°C to +70°C typical
Relative Humidity	10–95% RH, non-condensing
Dimensions	132 × 84 × 28 mm
Weight	Approx. 260 g

ICS Triplex T9852

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex T9852 include:

• CE Mark compliance for applicable AADvance system installations
• IEC 61508 SIL capability when installed within a validated safety controller architecture
• UL/cUL Listed status where applicable to the complete AADvance controller assembly
• ATEX/IECEx suitability only when integrated into an approved hazardous-area system
• Marine approvals such as DNV GL only when supplied as part of a certified marine control package
• Industrial EMC compliance according to final cabinet installation requirements

IEC 61508 compliance is significant because the termination assembly forms part of the certified safety output path. Incorrect fuse ratings, wiring changes, or unauthorized replacement parts may affect the validated safety function.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the T9852 sealed inside its original anti-static (ESD) packaging during storage. Protect the terminal blocks, fuse holders, and connector surfaces from dust and moisture.

Maintain warehouse humidity below 60% RH. Long exposure to uncontrolled humidity can accelerate oxidation on screw terminals and electrical contacts.

Before installation, inspect the fuse holders, terminal screws, plastic housing, and coding features. Record the hardware revision, serial number, and storage inspection date in the spare asset database.

Do not store near corrosive chemicals or battery charging areas. Small conductive contaminants can create faults when the assembly is energized.

7. Physical Installation Prerequisites

• Install only within the approved AADvance T9300 I/O base system.
• Verify compatibility with T9451 digital output modules.
• Confirm field wiring polarity before energization.
• Ensure protective earth bonding follows cabinet design requirements.
• Check both 24VDC field supply connections before startup.
• Confirm the correct fuse rating is installed.
• Maintain cabinet airflow around the I/O assembly.
• Leave at least 50 mm clearance above and below rack ventilation paths where practical.
• Secure terminal connections according to maintenance procedures.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ICS Triplex T9852?

A: Industrial termination assemblies are commonly evaluated under HS 8537 classifications for electrical control equipment. Some suppliers classify related assemblies under HS 8538900000 depending on regional customs interpretation. Confirm the final code with your customs broker.

Q: Does Country of Origin affect importing the T9852?

A: Yes. COO affects customs clearance, duty assessment, supplier qualification records, and safety equipment traceability. Verify the origin shown on the product label, invoice, and shipping documentation.

Q: Should shipping insurance be included for the T9852?

A: Recommended. Although the unit weighs only a few hundred grams, damaged terminal blocks, cracked housings, or bent connection points can delay safety-system maintenance activities.

Q: Does the T9852 include the latest firmware pre-loaded?

A: No. The T9852 is a passive digital output termination assembly and contains no firmware or application memory. Firmware resides in the associated controller and I/O modules. Verify the complete AADvance configuration before commissioning.
