1. ICS Triplex T9852 | Traceable AADvance Safety Spare

2. Unboxing & Physical Snapshot

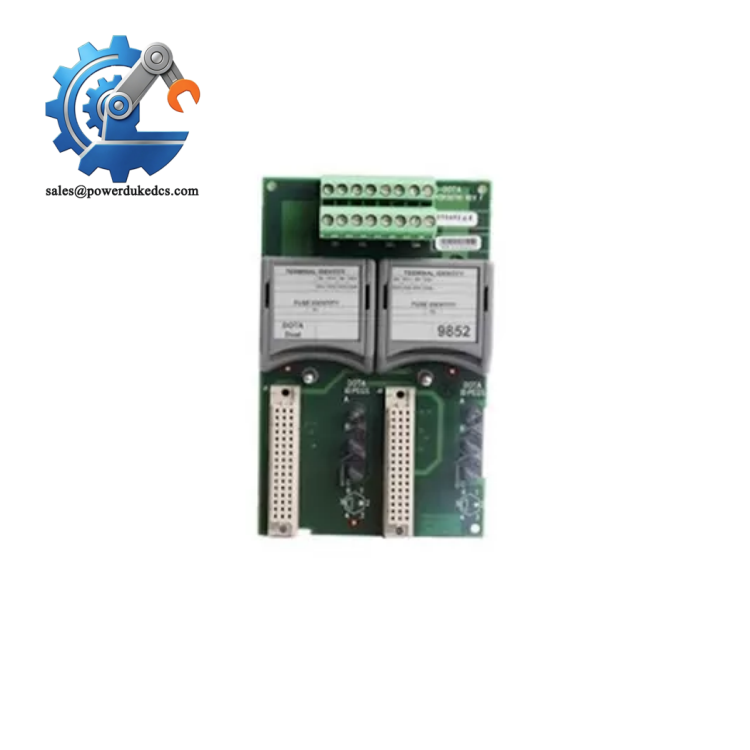

• Model & Brand: ICS Triplex T9852
• Product Type: Digital Output Terminal Assembly (Dual 8-Channel)
• Application: Terminal assembly for ICS Triplex AADvance safety controller digital output modules. The T9852 provides field wiring termination for two 8-channel digital output modules and supports dual output configurations with separate 24 VDC field power inputs.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 84 mm
  • Height: approximately 132 mm
  • Depth: approximately 50–60 mm (installation dependent)
  • Mounting: DIN-rail / AADvance termination assembly installation
• Estimated Shipping Weight: Approximately 260 g for the terminal assembly; export packaging increases total shipping weight.
• What’s in the Box:
  • ICS Triplex T9852 Digital Output Terminal Assembly
  • Terminal connection block assembly
  • Field power fuse holders
  • Replaceable 10 A fuses
  • Mounting accessories (when supplied)
  • Anti-static protection packaging
  • Documentation when available

3. Product Introduction

The T9852 installs as the physical field termination interface between ICS Triplex AADvance digital output modules and external plant devices. It provides the wiring transition point for actuator circuits, alarms, relays, and other discrete output loads while keeping field connections organized inside the control cabinet. The assembly supports two 8-channel output modules and accepts two independent 24 VDC field power sources with individual protection fuses (important for maintaining fault isolation during safety system operation).

This component is not a processor or logic module; it is part of the safety I/O hardware chain. Verify terminal numbering, wiring diagrams, module compatibility, and field power arrangements before replacement. Inspect the terminal screws, fuse holders, coding features, and plastic housing for mechanical damage before installation.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex / Rockwell Automation
Model Number	T9852
Product Type	Digital Output Terminal Assembly
System Platform	AADvance Safety Controller
Supported Modules	Two digital output modules
Channel Capacity	Dual 8-channel output termination
Field Power Input	Two 24 VDC field supplies
Fuse Protection	Two replaceable 10 A fuses
Wiring Capacity	Maximum 1.31 mm² (16 AWG) conductor
Wire Stripping Length	Approximately 6 mm
Mounting Type	AADvance termination assembly
Dimensions	132 × 84 mm
Weight	Approximately 260 g
Operating Environment	Industrial cabinet installation
Safety Application	IEC 61508 safety system architecture
Cooling Requirement	Passive cabinet airflow

ICS Triplex T9852

5. Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex T9852 include:

• CE Mark for EMC compliance when installed within the approved AADvance safety system.
• UL/cUL Listed or Recognized status depending on the complete equipment assembly.
• IEC 61508 SIL capability when combined with approved AADvance processor and I/O modules.
• ATEX/IECEx consideration when installed in a certified hazardous-area safety application.
• Marine approvals such as DNV GL where the complete control system is approved for offshore or marine use.

The IEC 61508 relationship matters because terminal assemblies directly connect safety outputs to field equipment. Incorrect wiring, unsuitable fusing, or improper field power separation can affect the validated safety function.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the T9852 inside its original protective packaging. Protect the terminal contacts, fuse holders, and plastic housing from dust and moisture.
• Maintain warehouse humidity below 60% RH to reduce oxidation risk on metal terminals and prevent contamination buildup.
• Inspect stored assemblies every 12–24 months. Check terminal screw condition, fuse holder integrity, housing cracks, and identification labels.

Store terminal assemblies separately from loose wiring hardware. Small metal debris can create future installation issues.

7. Physical Installation Prerequisites

• Install only with compatible ICS Triplex AADvance digital output modules.
• Mount securely according to cabinet design requirements.
• Verify terminal assignment and field wiring drawings before connecting external devices.
• Maintain cabinet airflow and leave approximately 50 mm clearance above and below the rack or termination area where practical.
• Confirm protective earth bonding for the cabinet assembly.
• Verify 24 VDC field power polarity before energizing.
• Use correct conductor sizes and tightening torque values.
• Confirm fuse ratings match the approved safety application design.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ICS Triplex T9852?
A: Terminal assemblies for industrial control systems are commonly evaluated under HS 8538 or related electrical control equipment classifications. The final code depends on the importing country, declared function, and customs requirements.

Q: Why does Country of Origin (COO) matter for the T9852?
A: COO documentation supports customs clearance, supplier qualification, and safety asset traceability. Keep the OEM label, commercial invoice, packing list, and receiving inspection records together.

Q: Is shipping insurance recommended for this terminal assembly?
A: Yes. Although the T9852 is lightweight, damage to terminal blocks, fuse holders, or mounting features can delay safety system maintenance. Use protective packaging and declared-value freight coverage.

Q: Does the T9852 include firmware pre-loaded?
A: No. The T9852 is a passive termination assembly and does not contain application firmware. Firmware applies to the associated AADvance processor and I/O modules connected to the terminal assembly.
