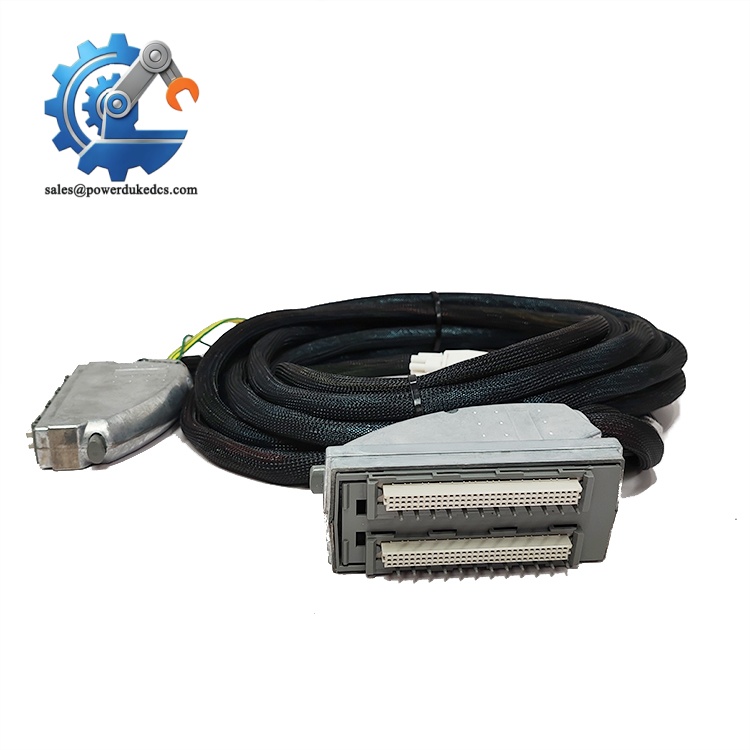

ICS Triplex TC-215-01-4M5 | CE Compliant Legacy Spare Unit

Description

1. ICS Triplex TC-215-01-4M5 | CE Compliant Legacy Spare Unit

Unboxing & Physical Snapshot

• Model & Brand: ICS Triplex TC-215-01-4M5
• Product Type: Industrial control I/O module used within ICS Triplex legacy automation systems. The TC-215 series modules are designed for discrete signal interface applications between field devices and control system electronics. ([turn0search0])
• Approximate Physical Dimensions (W × H × D):
  • Approximately 100 × 60 × 35 mm
  • Compact electronic module format; exact dimensions may vary by enclosure revision.
• Estimated Shipping Weight:
  • Module weight: approximately 0.3 kg
  • Typical packaged shipping weight: 0.5–0.8 kg
• What’s in the Box:
  • ICS Triplex TC-215-01-4M5 module
  • Interface connector or terminal assembly (if supplied)
  • Product identification label
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Documentation when available

Product Introduction

The ICS Triplex TC-215-01-4M5 is installed as part of a legacy industrial control cabinet where discrete field signals must be transferred between plant equipment and the control platform. Its compact PCB assembly, connector interface, and mounting hardware allow integration into existing automation panels without major cabinet modification (—which is common in long-service process facilities where hardware replacement cycles span decades).

Treat this module as a controlled spare. A direct physical match is not enough. Verify wiring references, module revision, terminal compatibility, and system configuration records before installation. Inspect the connector contacts and retaining features carefully; small mechanical damage can create intermittent faults that appear only during plant operation.

Core Technical Specifications

ICS Triplex TC-215-01-4M5

? Global Compliance & Industry Certifications

Expected regulatory considerations for the ICS Triplex TC-215-01-4M5 include:

• CE Mark: Applicable when installed within a compliant industrial control system meeting EMC requirements.
• UL/cUL Listed: May apply depending on the complete control panel certification package.
• IEC 61508 Functional Safety: Confirm applicability based on the exact system platform and module revision. Not every legacy I/O module carries independent SIL certification.
• ATEX / IECEx: The module is not typically a standalone hazardous-area device. Hazardous-area installation requires certified barriers, enclosures, and system-level approval.
• Marine Approvals (DNV GL): Applicable only when incorporated into approved marine automation equipment.

For compliance records, retain the module identification label, serial number, hardware revision, and replacement history. Legacy automation assets frequently fail audits because spare-part traceability was not maintained.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the TC-215-01-4M5 sealed in an anti-static (ESD) shielding bag during warehouse storage. The exposed connector surfaces are the first area to inspect because oxidation can increase contact resistance.

Maintain storage humidity below 60% RH. Avoid storage locations with chemical vapors, condensation cycles, or direct sunlight.

Inspect the module every 12–24 months. Check the PCB surface, connector pins, mounting points, and identification label. Before installation, compare the spare against the removed unit and verify all configuration records.

Physical Installation Prerequisites

• Install the TC-215-01-4M5 only in the compatible ICS Triplex control system environment.
• Confirm rack position and wiring references before insertion.
• Verify connector alignment before applying mechanical pressure.
• Ensure retaining clips or mounting hardware are fully secured.
• Maintain cabinet ventilation for electronic cooling.
• Leave approximately 50 mm clearance around ventilation paths where required by cabinet design.
• Confirm protective earth grounding of the enclosure.
• Separate low-level signal wiring from high-current switching conductors.
• Perform functional testing after replacement.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ICS Triplex TC-215-01-4M5?

A: Industrial automation I/O modules are often reviewed under HS 8538 or related control equipment component classifications. Final classification depends on the declared function, importing country rules, and customs review.

Q: Does Country of Origin (COO) documentation matter for this legacy module?

A: Yes. COO information supports customs clearance, import documentation, and long-term asset records. Confirm the origin shown on commercial documents matches the product identification information.

Q: Should shipping insurance be included for this module?

A: Recommended. Legacy control modules may be difficult to replace quickly. Transit shock, moisture exposure, or connector damage can result in failures discovered only during installation.

Q: Does the TC-215-01-4M5 include the latest firmware pre-loaded?

A: Firmware availability depends on the manufacturing revision and previous service history. Confirm firmware compatibility with the existing control system before commissioning. The module should be verified against the approved spare-part database before use.
