- ICS Triplex TC-215-01-6M5 | CE Compliant Automation Spare
2. Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex TC-215-01-6M5
- Product Type: Digital Input/Output (I/O) Module for ICS Triplex industrial control systems. The TC-215-01-6M5 is identified as a 16-channel digital signal processing module used for industrial on/off signal handling from switches and field devices.
- Approximate Physical Dimensions (W × H × D):
- Approximately 100 × 60 × 35 mm
- Compact industrial control module format.
- Estimated Shipping Weight:
- Module weight: approximately 0.3 kg
- Typical packaged shipping weight: 0.5–0.8 kg depending on protective materials.
- What’s in the Box:

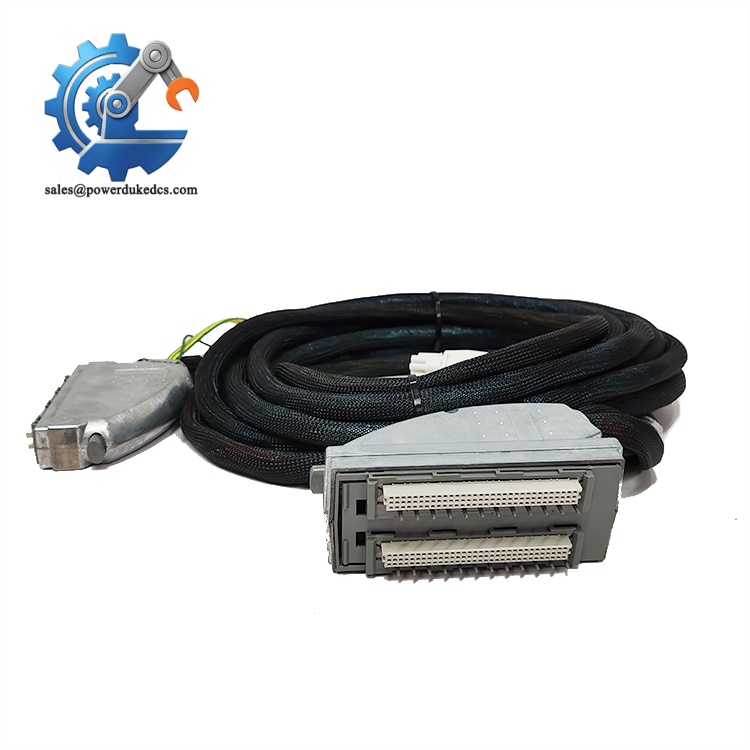

- ICS Triplex TC-215-01-6M5 Digital I/O Module
- Terminal/interface connector assembly (if supplied)
- Module identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when available
3. Product Introduction
The ICS Triplex TC-215-01-6M5 is installed as a field signal interface component within the control cabinet architecture, providing the electrical path between discrete field devices and the control processing system. Its compact enclosure allows integration into space-limited industrial panels where reliable signal acquisition and output handling are required (—particularly in legacy safety and process automation installations).
This module should be treated as a controlled automation spare. It is not only a plug-in replacement; channel assignments, wiring references, and hardware revision must match the approved system documentation. Inspect the terminal interface, connector pins, and retaining hardware before installation. A damaged contact surface can create intermittent field faults that are difficult to reproduce during commissioning.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model | TC-215-01-6M5 |
| Product Type | Digital Input/Output Module |
| Channel Count | 16 digital channels |
| Signal Type | Discrete ON/OFF field signals |
| Application | Industrial control and safety-related signal processing |
| Communication Interface | System-dependent backplane/interface connection |
| Input/Output Configuration | Digital I/O processing |
| Operating Temperature | Approximately -40°C to +70°C (vendor listing dependent) |
| Dimensions | Approx. 100 × 60 × 35 mm |
| Weight | Approx. 0.3 kg |
| Power Supply | System-provided industrial DC supply |
| Power Consumption | Configuration dependent |
| Heat Dissipation | Generated mainly by digital interface electronics |
| Processor | Embedded module controller |
| Memory | Firmware-dependent onboard memory |
| Installation Method | Rack or system interface mounting |
| Diagnostics | Module status monitoring |
| Protection | Industrial cabinet installation environment |
ICS Triplex TC-215-01-6M5
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the ICS Triplex TC-215-01-6M5 include:
- CE Mark: Applicable when installed as part of a compliant industrial control system meeting EMC requirements.
- UL/cUL Listed: May apply depending on the complete equipment assembly and certification scope.
- IEC 61508 Functional Safety: May be relevant when installed within a certified safety system architecture. Verify the exact certification level for this hardware revision.
- ATEX / IECEx: The module itself should not be considered a standalone hazardous-area certified device. Hazardous-area use requires approved enclosure, barriers, and complete system certification.
- Marine Approvals (DNV GL): Applicable only when integrated into approved marine automation equipment.
For audit records, retain the serial number, hardware revision, firmware information, and installation location. Small I/O modules frequently become audit issues when replacement history is missing.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the TC-215-01-6M5 inside its original anti-static shielding bag during storage. Protect the connector contacts because oxidation or contamination can cause communication or field signal faults after installation.
Maintain warehouse humidity below 60% RH. Electronic assemblies stored through repeated humidity cycles may develop corrosion on exposed metal surfaces.
Inspect the module every 12–24 months. Check the PCB surface, connector pins, housing condition, and identification label. Before installation, confirm firmware compatibility and compare the spare module revision against the approved equipment database.
7. Physical Installation Prerequisites
- Install the TC-215-01-6M5 only in the compatible ICS Triplex control platform.
- Confirm rack position and wiring references before insertion.
- Verify terminal connections match approved engineering drawings.
- Ensure connectors are fully seated and retaining hardware is secured.
- Maintain cabinet airflow for electronic cooling.
- Leave approximately 50 mm clearance above and below rack ventilation areas where required by cabinet design.
- Confirm protective earth grounding of the control cabinet.
- Keep signal wiring separated from high-voltage switching circuits.
- Perform functional testing after module replacement.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex TC-215-01-6M5?
A: Industrial I/O modules are often reviewed under HS 8538 or related industrial control component classifications. The final tariff code depends on the declared function, importing country regulations, and customs interpretation.
Q: Why does Country of Origin (COO) documentation matter for this module?
A: COO information supports customs clearance, import documentation, and long-term asset traceability. Verify that the COO on shipping documents matches the manufacturer’s marking and commercial records.
Q: Should shipping insurance be purchased for the TC-215-01-6M5?
A: Recommended. The module contains sensitive electronic circuits and connector assemblies. Transit shock or moisture exposure may cause failures that only appear after installation.
Q: Does the TC-215-01-6M5 include the latest firmware pre-loaded?
A: Firmware availability depends on the manufacturing revision and previous service history. Confirm the firmware version and compatibility with the existing control system before commissioning.
