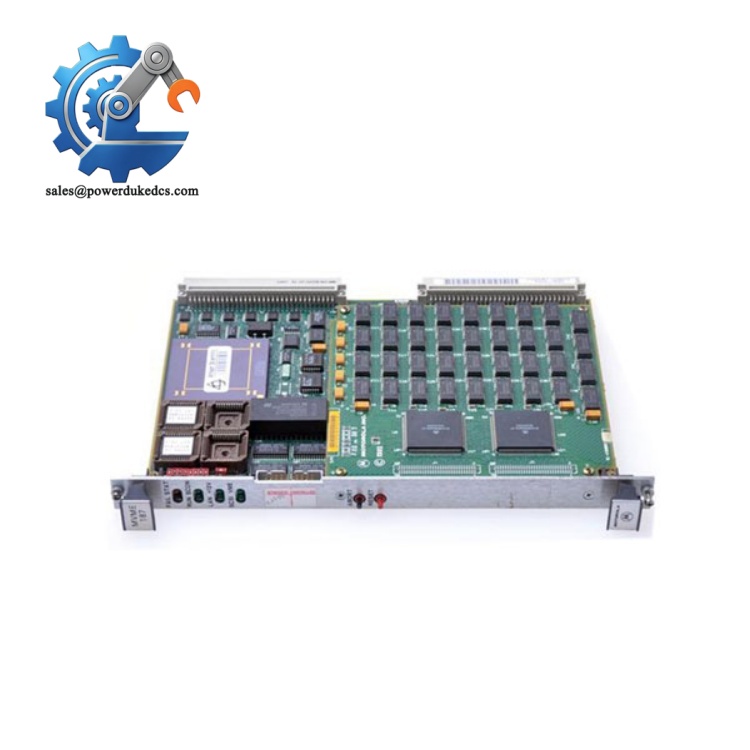

Motorola MVME187 | Authentic Legacy Automation CPU

Description

1. Motorola MVME187 | Authentic Legacy Automation CPU

Unboxing & Physical Snapshot

• Model & Brand: Motorola MVME187
• Product Type: 6U VMEbus RISC single-board computer designed around the Motorola M88000 processor architecture. The board was developed for embedded industrial computing applications and includes onboard memory expansion, SCSI interface, Ethernet capability, serial ports, and Motorola 187Bug firmware.
• Approximate Physical Dimensions (W × H × D):
  • Standard 6U VME single-board format
  • Approximately 233 × 160 mm board footprint
  • Depth varies with installed memory mezzanine and rear transition hardware.
• Estimated Shipping Weight: Approximately 1.0-2.5 kg including ESD packaging, protective foam, and transport carton. Actual freight weight depends on installed DRAM mezzanine configuration.
• What’s in the Box:
  • Motorola MVME187 RISC single-board computer
  • VME front panel assembly
  • M88000 processor section
  • DRAM memory mezzanine (configuration dependent)
  • VMEbus edge connectors
  • Anti-static (ESD) shielding bag
  • Conductive foam support
  • Documentation package when supplied

Product Introduction

The Motorola MVME187 installs into a 6U VME chassis backplane, where it serves as the embedded processing controller for industrial and instrumentation systems. The board occupies a single VME slot while providing local CPU processing, memory expansion, Ethernet communication, SCSI storage access, and serial interfaces (which is critical for preserving validated legacy computing platforms still operating after decades of service).

This controller represents an earlier generation of Motorola RISC-based VME computing hardware. Replacement planning requires more than matching the board number; verify the installed memory mezzanine, boot firmware, VME configuration, transition module, and application software environment. The MVME187 uses an MC88100 MPU with MC88200/MC88204 cache management units and supports multiple DRAM configurations through onboard mezzanine modules. Check the memory configuration before installation.

Core Technical Specifications

Motorola MVME187

? Global Compliance & Industry Certifications

Expected regulatory considerations for the Motorola include:

• CE Mark: May apply when installed within a compliant equipment enclosure that satisfies EMC requirements.
• UL/cUL Recognition: Typically evaluated as part of the complete VME chassis or finished equipment assembly.
• RoHS Compliance: Original production predates modern RoHS requirements; verify the specific spare inventory revision.
• ATEX / IECEx: Not a standalone hazardous-area certified device. Hazardous-location suitability depends on the complete certified control system.
• Marine Approvals (DNV GL): Applicable only when integrated into approved marine automation or instrumentation equipment.

For legacy VME assets, maintain traceable records for board revision, serial number, firmware image, memory mezzanine type, and installed transition hardware. Missing configuration history can create avoidable audit findings.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the inside an anti-static shielding bag during storage. The VME connector fingers, processor packages, and memory mezzanine contacts are susceptible to oxidation and electrostatic damage.

Maintain warehouse humidity below 60% RH. Avoid uncontrolled temperature changes because condensation can affect connector surfaces and create intermittent failures during startup.

Inspect stored boards every 12-24 months. Check the memory mezzanine mounting points, front panel hardware, battery-backed components, connector plating, and PCB surface condition. Before deployment, perform a controlled power-up test and verify the 187Bug firmware environment matches the existing system requirements.

Physical Installation Prerequisites

• Install the only in a compatible 6U VME chassis.
• Confirm the VME backplane supports required addressing and system controller functions.
• Verify forced-air cooling before operation.
• Maintain unobstructed airflow through the card cage.
• Leave sufficient clearance around adjacent VME boards to prevent heat accumulation.
• Inspect VME edge connectors before insertion.
• Confirm chassis grounding and protective earth bonding.
• Verify VME backplane voltage rails before startup.
• Confirm the correct transition module is installed for serial, Ethernet, and SCSI connections.
• Verify firmware, memory configuration, and application software before commissioning.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for a Motorola shipment?

A: VME single-board computers are commonly reviewed under HS classifications associated with electronic computing assemblies, often within HS 8471 or related electronic board categories. Final classification depends on customs interpretation and the declared function of the imported equipment.

Q: Why does Country of Origin (COO) documentation matter for this legacy VME board?

A: COO records support customs clearance, asset traceability, and maintenance documentation. For refurbished units, retain manufacturer identification, refurbishment records, and shipment origin details.

Q: Should this Motorola ship with insurance coverage?

A: Recommended. The board contains aging semiconductor components, memory mezzanine connections, and precision VME edge connectors. Shock, vibration, or moisture exposure may create faults that only appear during system operation.

Q: Does the include the latest firmware pre-loaded?

A: The board normally includes Motorola 187Bug monitor firmware, but the exact revision depends on the installed ROM configuration and service history. Application software, operating system images, and customer-specific configuration files must be verified separately before replacement.
