1. Motorola MVME2603-712 | Legacy Automation Asset

2. Unboxing & Physical Snapshot

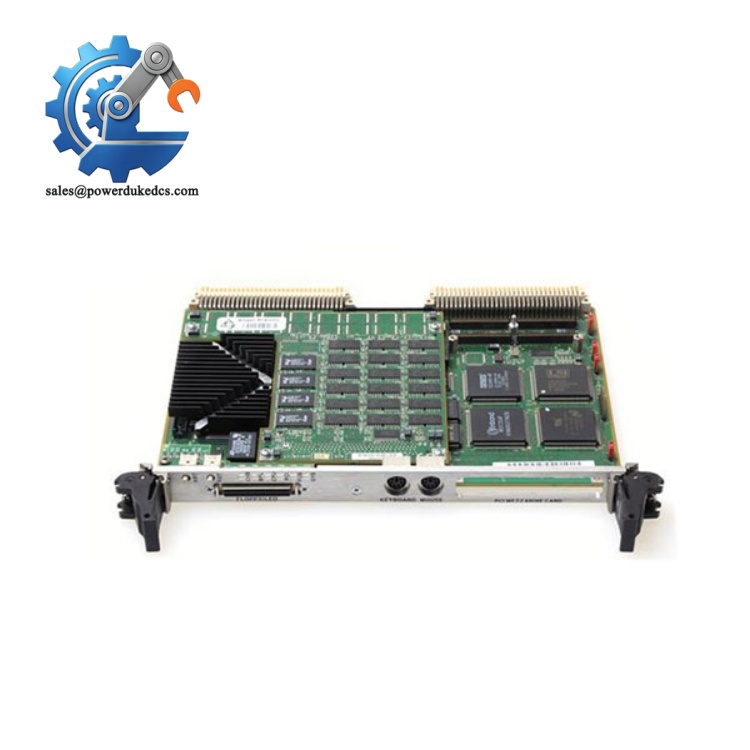

• Brand & Model: Motorola MVME2603-712
• Product Type: 6U VMEbus single-board computer based on the Motorola PowerPC 603 processor family. The MVME2603 series was designed for embedded industrial computing applications requiring VME backplane communication, PCI expansion capability, ECC memory support, and long service availability. The -712 configuration identifies a specific factory build option.
• Physical Dimensions (Approximate W × H × D):
  • Format: 6U VME single-board computer
  • Base board: approximately 233 × 160 × 20 mm
  • Board with front panel and connectors: approximately 262 × 188 × 20 mm
• Estimated Shipping Weight: Approximately 0.9–1.2 kg including ESD shielding bag, protective foam, and export packaging.
• What’s in the Box:
  • Motorola MVME2603-712 VME processor board
  • Front panel assembly
  • VME backplane connector interface
  • Installed memory configuration (revision dependent)
  • Battery-backed NVRAM/RTC components
  • Anti-static (ESD) shielding bag
  • Protective packaging
  • Documentation when supplied

3. Product Introduction

Structure B — Architecture Hook

The Motorola MVME2603-712 mounts into a 6U VME chassis as the central processing element of a modular embedded computer system. It occupies a single VME slot and connects through the backplane while managing processor execution, memory access, PCI resources, and optional expansion hardware. Confirm the chassis backplane, transition module, and installed accessories before replacement.

This controller is commonly retained in operational systems where software validation and hardware qualification represent significant maintenance effort. Inspect the VME edge connector, memory module area, battery-backed components, and front-panel hardware before installation (—especially for units that have remained in warehouse storage for extended periods). Avoid touching connector surfaces directly. Contamination can create intermittent faults that are difficult to reproduce during troubleshooting.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model Number	MVME2603-712
Product Type	6U VME Single Board Computer
Processor	PowerPC MPC603
Processor Speed	Configuration dependent, typically 200 MHz class
L2 Cache	Optional external cache configuration
Main Memory	ECC DRAM module, configuration dependent
Memory Expansion	RAM200 memory module support
NVRAM	Battery-backed NVRAM
Real-Time Clock	Battery-backed RTC
VME Interface	VMEbus architecture
PCI Interface	Local PCI bus
PMC Expansion	PMC mezzanine support
Serial Interfaces	Available through transition modules
Ethernet Interface	Configuration dependent
Supply Voltage	+5 VDC primary supply
Auxiliary Supply	+12 VDC / -12 VDC where required
Typical Power Consumption	Approximately 25 W class depending on processor and configuration
+5 VDC Current	Approximately 5 A typical, up to 7 A maximum for MPC603 configuration
Cooling Method	Forced-air VME chassis cooling
Operating Temperature	0°C to +55°C with proper airflow
Storage Temperature	Approximately -40°C to +85°C
Relative Humidity	5% to 90% non-condensing

Motorola MVME2603-712

The MVME2603-712 is a specific configuration within the MVME2603 family. Verify installed memory capacity, firmware revision, processor variant, and transition-module requirements before approving a field replacement.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Motorola MVME2603-712 include:

• CE Mark — applicable when installed within a compliant equipment assembly.
• UL/cUL Recognition — may apply depending on the final system certification.
• FCC Compliance — relevant for electromagnetic emissions control.
• RoHS Compliance — dependent on manufacturing date and production revision.
• IEC EMC Compliance — important for embedded processor boards operating inside industrial cabinets.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; suitability depends on the complete enclosure and approved system design.
• Marine Approvals (DNV GL) — applicable only when integrated into certified marine control equipment.

EMC certification is important because VME processor boards combine clock signals, PCI communication, memory buses, and backplane activity within a confined electronic enclosure.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the Motorola MVME2603-712 inside the original anti-static (ESD) shielding bag. Protect the VME connector fingers, memory contacts, and expansion interfaces from oxidation.

Inspect battery-backed components before installation. Older NVRAM or RTC batteries may deteriorate during long storage periods and can damage nearby PCB traces if leakage occurs.

Maintain warehouse humidity below 60% RH. Moisture control protects connector plating and solder joints from corrosion.

Before deployment:

• Inspect the VME edge connector under magnification.
• Check memory modules are firmly seated.
• Verify PCB surfaces are free from dust and residue.
• Confirm labels and serial markings remain readable.

Allow sealed packaging to reach ambient temperature before opening. Condensation on the PCB can damage electronic assemblies.

7. Physical Installation Prerequisites

• Install only in a compatible 6U VME chassis.
• Confirm VME backplane compatibility before insertion.
• Verify +5 VDC power capacity and auxiliary voltage availability.
• Provide forced-air cooling through the card cage.
• Leave at least 50 mm clearance around airflow paths where cabinet construction permits.
• Confirm protective earth grounding continuity.
• Secure front-panel retaining screws and ejector mechanisms before operation.

Do not install or remove the module while energized unless the VME platform supports live insertion.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Motorola MVME2603-712?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the equipment. VME single-board computers are generally reviewed under electronic processing equipment or industrial control board categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Origin affect MVME2603-712 import clearance?

A: Yes. COO information can affect customs processing, duty assessment, and customer audit documentation. Maintain the original product label, serial records, supplier paperwork, and receiving inspection reports.

Q3. Should shipping insurance be purchased for this VME controller?

A: Recommended. The MVME2603-712 contains exposed edge connectors, memory assemblies, and battery-backed components that may be affected by impact, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight insurance.

Q4. Does the MVME2603-712 include the latest firmware pre-loaded?

A: Firmware depends on the installed Flash contents, boot ROM revision, and previous application configuration. Verify the firmware version, memory configuration, and approved software image before installing the board into an active VME system.
