- Motorola MVME6100-0161 | Traceable Embedded Spare
2. Unboxing & Physical Snapshot
- Model & Brand: Motorola MVME6100-0161
- Product Type: 6U VMEbus Single Board Computer (SBC)
- Application: High-performance embedded computing controller for VME-based industrial automation, defense systems, telecommunications, and long-life control platforms. The MVME6100-0161 configuration includes a 1.267 GHz MPC7457 PowerPC processor, 512 MB DDR memory, 128 MB Flash memory, and Scanbe ejector handles.
- Approximate Physical Dimensions (W × H × D):
- Width: approximately 233 mm
- Height: approximately 160 mm
- Depth: approximately 20–25 mm
- Form Factor: 6U VME64x Eurocard
- Estimated Shipping Weight: Approximately 1.2–1.6 kg including ESD packaging and protective transport materials.
- What’s in the Box:

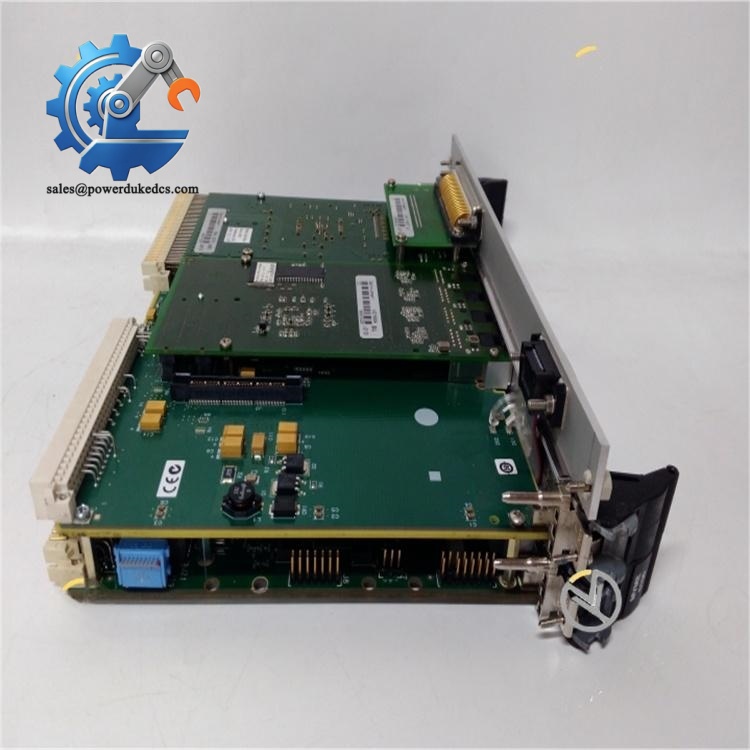

- Motorola MVME6100-0161 processor board
- Front panel with Scanbe handles
- VMEbus P1/P2 connector interface
- Installed MPC7457 processor
- 512 MB DDR memory
- 128 MB Flash memory
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied with controlled inventory
3. Product Introduction
The Motorola MVME6100-0161 mounts directly into a 6U VMEbus chassis, acting as the primary processing node within a high-performance embedded architecture. The board communicates through the VME backplane using the Tundra Tsi148 VME interface, supporting 2eSST transfer capability for higher-speed data movement between VME devices (critical where existing VME infrastructure must remain in service).
This controller is a lifecycle-managed industrial computer asset, not a simple plug-in CPU replacement. Verify the processor revision, Flash image, VME address configuration, PMC expansion hardware, and operating environment before installation. Inspect the VME connector contacts, Scanbe ejectors, heatsink surface, and PCB condition carefully (mechanical wear around the handles is common on frequently serviced racks).
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Motorola / Emerson Embedded Computing |
| Model Number | MVME6100-0161 |
| Product Type | 6U VME Single Board Computer |
| Processor | MPC7457 PowerPC |
| Processor Speed | 1.267 GHz |
| Memory | 512 MB DDR SDRAM |
| Flash Memory | 128 MB |
| Processor Cache | Integrated L2 cache |
| Vector Processing | AltiVec coprocessor support |
| VME Interface | Tundra Tsi148 bridge |
| VME Protocol | VME64x / 2eSST |
| VME Transfer Rate | Up to 320 MB/s theoretical capability |
| PMC Expansion | Two PMC-X sites |
| Ethernet Interface | Dual Gigabit Ethernet |
| Serial Interface | System configuration dependent |
| Storage Interface | System configuration dependent |
| Power Supply | VME backplane power |
| Power Consumption | Configuration dependent |
| Heat Dissipation | Equivalent to electrical operating losses |
| Cooling Method | Forced-air chassis cooling |
| Mounting Method | 6U VME rack slot |
| Operating Environment | Industrial electronic enclosure |
Motorola MVME6100-0161
5. Global Compliance & Industry Certifications
Expected compliance considerations for this class of Motorola industrial computing hardware include:
- CE Mark for applicable EMC requirements when installed inside a compliant equipment enclosure.
- UL/cUL Listed or Recognized status depending on the complete system assembly.
- ATEX/IECEx consideration only when integrated into a certified hazardous-area system.
- Marine approvals such as DNV GL where incorporated into approved vessel or offshore control equipment.
The CE declaration for the MVME6100 family references EMC and safety-related directives, including EN55022 Class A, EN55024, and RoHS requirements.
For hazardous-area applications, the MVME6100-0161 board itself does not provide explosion protection. The complete enclosure, wiring method, grounding design, and system certification determine suitability.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the MVME6100-0161 inside its original anti-static (ESD) shielding bag during storage. Protect the VME connector fingers and front-panel interfaces from oxidation.
- Maintain warehouse humidity below 60% RH to protect PCB surfaces, connector plating, and solder joints from environmental damage.
- Inspect stored boards every 12–24 months. Record firmware revision, verify Flash image documentation, inspect the heatsink area, and check mechanical ejector hardware (which is critical for repeated rack maintenance cycles).
Check the date code. Legacy VME boards require documentation discipline.
7. Physical Installation Prerequisites
- Install only into a compatible 6U VME64x chassis with the required backplane support.
- Verify VME slot assignment, address mapping, and system controller configuration before power-up.
- Maintain sufficient cabinet airflow. Leave approximately 50 mm above and below the rack assembly where enclosure design permits.
- Confirm VME power rails and chassis grounding before insertion.
- Verify protective earth bonding.
- Use ESD protection when handling the board.
- Confirm Flash firmware version, operating system image, PMC modules, and application software compatibility before commissioning.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Motorola MVME6100-0161?
A: VME single-board computers are commonly reviewed under HS 8471 or related electronic processing equipment classifications. The final customs classification depends on the importing country, declared function, and local tariff interpretation.
Q: Does Country of Origin (COO) documentation matter for the MVME6100-0161?
A: Yes. COO records support customs clearance, supplier qualification, and lifecycle traceability. Retain the OEM label, serial number, purchase records, and receiving inspection documentation.
Q: Should shipping insurance be purchased for the MVME6100-0161?
A: Yes. This board contains specialized PowerPC processing hardware, DDR memory, Flash storage, and VME interface components. Use ESD packaging, shock protection, moisture barriers, and declared-value freight coverage.
Q: Does the Motorola MVME6100-0161 include the latest firmware pre-loaded?
A: Not necessarily. The board includes Flash memory hardware, but the installed firmware version depends on the specific production unit and previous system configuration. Verify boot firmware, operating system compatibility, and application software requirements before deployment.
