1. Motorola MVME7100-0173 | Embedded PowerPC Asset

2. Unboxing & Physical Snapshot

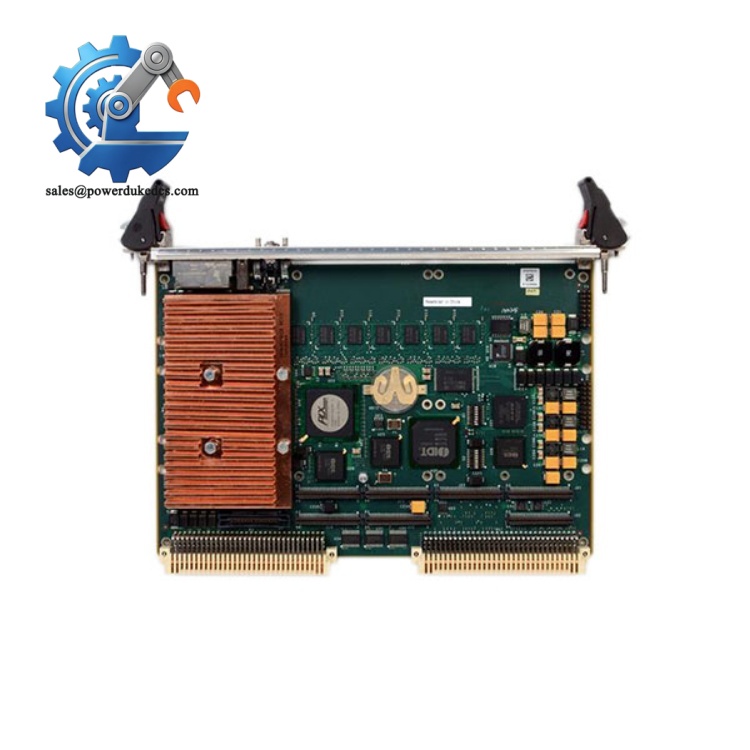

• Brand & Model: Motorola MVME7100-0173
• Product Type: 6U VMEbus single-board computer designed for embedded industrial computing, control systems, transportation, defense, and long-life automation platforms. The MVME7100-0173 configuration uses an MPC8641D PowerPC processor, 2GB DDR2 ECC memory, 8GB NAND Flash, and IEEE ejector handles.
• Physical Dimensions (Approximate W × H × D):
  • 6U VME board format
  • Approximately 233 × 160 × 20 mm
  • 4HP front-panel width
• Estimated Shipping Weight: Approximately 0.9–1.2 kg including ESD shielding bag, protective foam, and export packaging.
• What’s in the Box:
  • Motorola MVME7100-0173 VME single-board computer
  • IEEE-style ejector handles
  • VME backplane connector interface
  • 2GB DDR2 ECC memory installed
  • 8GB NAND Flash storage
  • Anti-static (ESD) shielding bag
  • Protective packaging
  • Documentation when supplied

3. Product Introduction

Structure B — Architecture Hook

The Motorola MVME7100-0173 mounts into a standard 6U VME chassis as a high-performance embedded computing controller. It occupies a single VME slot while providing processor execution, memory management, network communication, and expansion capability through VME, PMC, and PCI-related interfaces. Verify the backplane design, rear transition module, and application software environment before replacement.

This controller is normally retained in service because installed VME platforms often have validated software, custom I/O arrangements, and long operational lifecycles. Inspect the VME connector fingers, IEEE ejector handles, PMC interfaces, and Flash devices before installation (—especially for spare units stored beyond normal maintenance cycles). Treat the board as a controlled electronic asset. A damaged connector or contaminated contact surface can create intermittent faults that are difficult to diagnose.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model Number	MVME7100-0173
Product Type	6U VME Single Board Computer
Processor	MPC8641D PowerPC processor
Processor Speed	1.3 GHz class
Processor Core	Dual e600 PowerPC cores
Main Memory	2GB DDR2 ECC SDRAM
NAND Flash	8GB
NOR Flash	128MB
VME Interface	VMEbus / 2eSST compliant
VME Transfer Rate	Up to 320 MB/s with 2eSST
PMC Expansion	Dual PMC-X sites
PCI Expansion	PCI-X architecture
Ethernet Interface	Four Gigabit Ethernet controllers
USB Interface	USB 2.0 controller
Serial Interface	Integrated DUART support
Supply Voltage	+5 VDC primary input
Power Consumption	Configuration dependent
Heat Dissipation	Dependent on CPU load and installed PMC modules
Cooling Method	Forced-air VME chassis cooling
Operating Temperature	Dependent on chassis airflow and configuration
Storage Temperature	Approximately -40°C to +85°C
Weight	Approximately 0.68 kg

Motorola MVME7100-0173

The MVME7100-0173 is a specific factory configuration. Confirm firmware image, memory population, PMC hardware, and rear transition module compatibility before installation.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Motorola MVME7100-0173 include:

• CE Mark — applicable when installed within a compliant industrial equipment assembly.
• UL/cUL Recognition — may apply depending on the complete system certification.
• FCC Compliance — relevant for electromagnetic emissions requirements.
• RoHS Compliance — supported by applicable manufacturing revisions.
• IEC EMC Compliance — important for high-speed embedded controllers operating near industrial switching equipment.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; suitability depends on the complete enclosure and certified system design.
• Marine Approvals (DNV GL) — applicable only when integrated into certified marine automation equipment.

EMC compliance is critical because this controller combines high-frequency processor operation, DDR2 memory buses, Ethernet interfaces, and VME backplane signaling inside a compact chassis.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the Motorola MVME7100-0173 inside the original anti-static (ESD) shielding bag during storage. The VME edge connector contacts and PMC expansion interfaces should remain protected from dust and oxidation.

Maintain warehouse humidity below 60% RH. Long-term exposure to moisture can degrade connector plating and reduce reliability after installation.

Inspect stored units every 12–24 months:

• Check VME connector fingers for oxidation.
• Inspect IEEE ejector handles and front-panel hardware.
• Verify PCB surfaces are free from contamination.
• Check Flash devices and memory components for physical damage.

Allow the sealed package to reach room temperature before opening. Condensation on a cold PCB can damage electronic assemblies.

7. Physical Installation Prerequisites

• Install only in a compatible 6U VME chassis.
• Verify VME backplane compatibility before insertion.
• Confirm chassis power supply capacity for processor and expansion loads.
• Provide forced-air cooling through the card cage.
• Leave at least 50 mm clearance around ventilation paths where cabinet construction permits.
• Confirm protective earth grounding continuity.
• Secure IEEE ejector handles and front-panel screws before operation.

Do not insert or remove the controller under power unless the VME platform specifically supports that procedure.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Motorola MVME7100-0173?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the equipment. VME single-board computers are generally reviewed under electronic processing equipment or industrial control board categories. Confirm the final HS code with your customs broker before export.

Q2. Does Country of Origin affect MVME7100-0173 import clearance?

A: Yes. COO information can affect customs processing, duty assessment, and customer audit requirements. Maintain the original product label, serial records, supplier documents, and receiving inspection reports.

Q3. Is shipping insurance recommended for this VME processor board?

A: Recommended. The MVME7100-0173 contains high-density connectors, processor assemblies, and memory devices that can be affected by impact, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight insurance.

Q4. Does the MVME7100-0173 include the latest firmware pre-loaded?

A: Firmware depends on the installed Flash contents, boot software revision, and previous application configuration. Verify the firmware version, operating system compatibility, and approved system image before installing the controller into an active VME system.
