NI NI-9505 | OEM Condition & Compliance Data

Description

Unboxing & Physical Snapshot

• Model & Brand: National Instruments (NI) NI-9505, a C Series module for stepper motor drive applications.
• Physical Dimensions: Approximately 30.0 × 30.0 × 105.0 mm (W × H × D); confirm the exact mechanical drawing for the hardware revision before cabinet layout.
• Estimated Shipping Weight: Approximately 0.15–0.30 kg gross, depending on packaging and included documentation.
• What’s in the Box: NI-9505 module, protective packaging, and documentation when supplied as a new OEM unit. Motor/encoder cabling and external power equipment are not assumed to be included.
• Module Format: Compact NI C Series form factor; installation requires a compatible NI CompactRIO, CompactDAQ, or other supported C Series carrier.

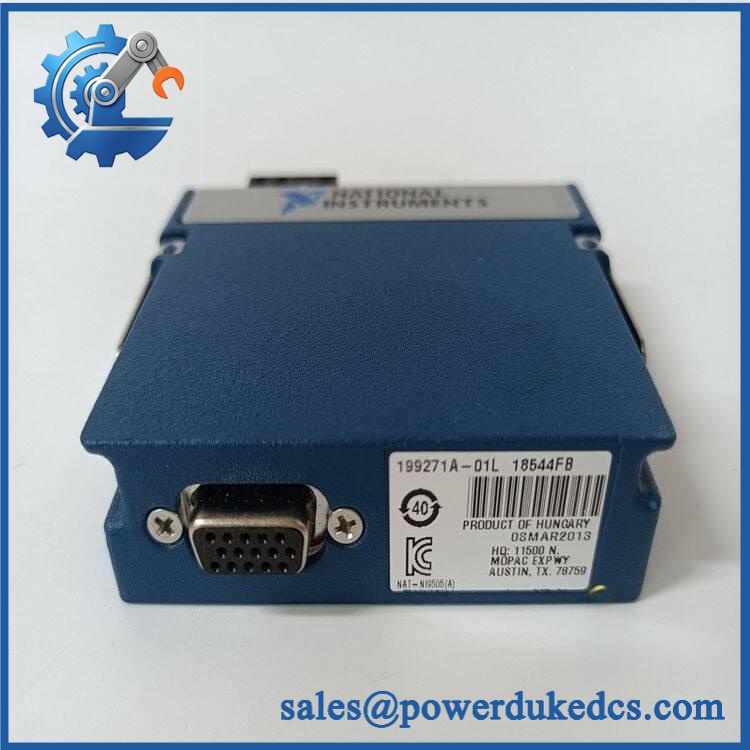

• Receiving Check: Photograph the module label, serial number, connector condition, front-panel indicators, and revision before inventory acceptance.

Product Introduction

Architecture Hook

The NI-9505 is designed to occupy a C Series slot while providing the electrical interface required for stepper motor control. It is not a standalone motor drive that can simply be connected to a 24 VDC supply and operated independently; the host chassis or controller supplies the system-level environment in which the module is configured and controlled.

The module is intended for applications requiring coordinated motor motion under NI control. Its compact form factor is useful in distributed control architectures, but the surrounding power supply, motor wiring, controller software, and thermal conditions remain part of the installation assessment (especially when several motion modules operate in the same chassis).

Core Technical Specifications

NI NI-9505

Power and heat-load warning: Do not calculate system power consumption from the nominal motor voltage alone. Motor current, duty cycle, motor supply configuration, chassis loading, and simultaneous operation determine the actual thermal load.

The NI-9505 should therefore be evaluated together with its motor, external supply, controller, and chassis rather than as an isolated 30 VDC electronic component.

? Global Compliance & Industry Certifications

• CE Mark: Applicable NI industrial C Series hardware may carry CE conformity for relevant European directives. Verify the marking and current NI Declaration of Conformity for the exact assembly.
• UL/cUL: Certification status must be confirmed against the exact NI-9505 hardware revision and applicable product documentation.
• FCC: Where applicable, emissions compliance should be verified from the product regulatory documentation rather than inferred from the NI brand.
• ATEX/IECEx: Do not classify the NI-9505 as hazardous-area equipment without an exact applicable certificate. Standard C Series hardware should be installed in an appropriately rated enclosure when used near classified process areas.
• Marine Approval: DNV or equivalent marine approval should be confirmed separately for offshore or marine projects.
• Safety Relevance: The NI-9505 is a motor-control interface, so incorrect power wiring can expose the system to motor overcurrent, electrical fault, and unexpected motion hazards. Certification of the module does not replace machine-level risk assessment.
• Audit Record: Retain the product label, serial number, revision, applicable conformity declaration, and installation classification in the asset file.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

1. Keep the NI-9505 in its original ESD shielding bag. The module contains exposed electronic interfaces that should not be left unprotected on a warehouse shelf. Keep the connector area covered whenever the unit is outside its installation environment.
2. Control humidity and condensation. Target a clean storage environment below approximately 60% RH where practical, with stable temperature and no condensation. Rapid movement from cold storage into warm humid air can put moisture directly onto the module contacts.
3. Do not cycle the module unnecessarily during storage inspections. For a strategic spare, visual inspection, label verification, and packaging-condition checks are preferable to repeated energized testing unless the site’s preservation procedure requires periodic electrical verification.
4. Preserve software compatibility information. Record the hardware revision and associated NI software environment. A physically pristine motion module can still become difficult to deploy if the target CompactRIO application uses an incompatible driver, FPGA configuration, or software revision.

NI NI-9505

Physical Installation Prerequisites

• Carrier Compatibility: Install only in a compatible NI C Series carrier or chassis. Verify slot compatibility before insertion.
• Mechanical Seating: Insert the module squarely into the carrier and secure it using the carrier’s retaining mechanism. Never apply force to the PCB or connector.
• Clearance: Maintain the chassis manufacturer’s required airflow around the C Series system. Do not block ventilation openings with adjacent equipment or wiring.
• Thermal Management: Motor-drive heat is affected by output current and duty cycle. When multiple high-load modules operate together, calculate the complete chassis thermal load rather than relying on the module’s small physical size.
• Power: Verify motor supply voltage and current against the connected stepper motor and application. The motor supply must remain within the NI-9505’s specified operating limits.
• Grounding: Follow the carrier and machine grounding scheme. Motor power wiring and control wiring should be routed according to the machine builder’s EMC and grounding requirements.
• ESD: Use an ESD-controlled workstation during installation or removal.
• Motion Safety: Before commissioning, prevent unintended mechanical movement. Verify enable logic, motor direction, travel limits, emergency-stop behavior, and software interlocks before connecting the machine load.

Buyer’s FAQ

Q1. Which HS tariff code should be used for NI-9505?

The correct HS classification should be established from the module’s technical function and the importing country’s tariff schedule. A generic electronic-module code should not be assigned solely from the NI model number.

For international shipments, have the customs broker confirm the classification before issuing the commercial invoice, particularly where the module is being imported as a replacement motor-control assembly.

Q2. Does Country of Origin matter for this spare?

Yes. Country of manufacture can affect duty rates, origin declarations, preferential tariff treatment, and trade-compliance screening.

Record the manufacturer, COO, ship-from country, serial number, and commercial invoice description separately. If preferential treatment is being claimed, obtain the appropriate origin documentation rather than relying on the supplier’s ship-from location.

Q3. Should I insure a shipment containing an NI-9505?

For a low-weight module, the key consideration is replacement value and production impact rather than freight mass. Insurance is reasonable for international shipments, especially when the module is an obsolete or difficult-to-source motion-control spare.

Before dispatch, photograph the connector, label, serial number, and packaging. Use ESD shielding plus sufficient mechanical cushioning to prevent connector damage.

Q4. Does a new NI-9505 include the latest firmware?

Do not assume that the module contains the latest software configuration. NI C Series motion hardware operates within a broader CompactRIO or NI control architecture, so driver, FPGA, and application compatibility must be checked at the system level.

For receiving inspection, record the hardware revision and serial number, then validate compatibility against the target controller and NI software stack before releasing the module for field installation.

Asset-control note: For inventory accuracy, record NI-9505 as the complete manufacturer part number and retain the serial number and hardware revision. Do not substitute a visually similar NI C Series module in the ERP master merely because it occupies the same physical slot.
