NI PCI-6251 | PCI DAQ Board | Factory-Sealed Spare

Description

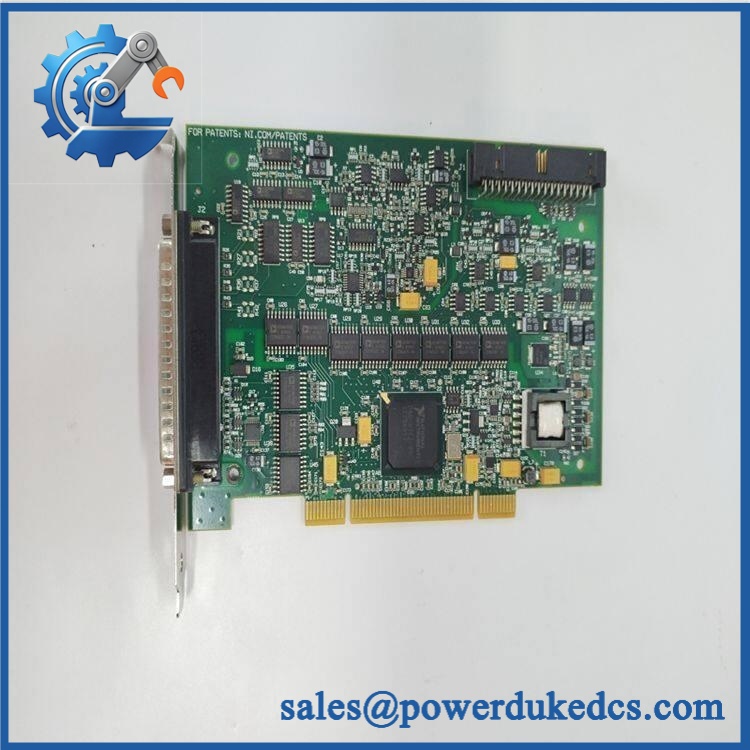

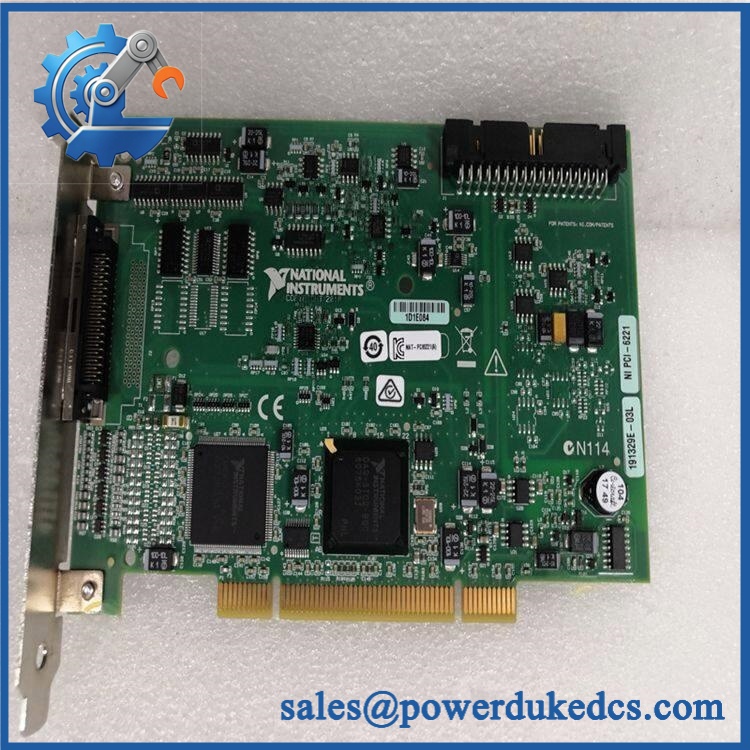

Unboxing & Physical Snapshot

• Model & Brand: National Instruments (NI) PCI-6251, M Series multifunction PCI data-acquisition device. NI currently lists the product as no longer available and identifies PCIe-6351 as a suggested replacement.
• Physical Dimensions: Approximately 4.38 × 6.30 in. (111.3 × 160.0 mm), H × L for the PCI board form factor. Confirm the applicable mechanical drawing before cabinet or computer-chassis fit-up.
• Estimated Shipping Weight: Allow approximately 0.5–1.0 kg packed for freight planning. Use the actual carton weight for the commercial invoice; the PCB weight alone should not be used for freight calculations.
• What’s in the Box: PCI-6251 board, mounting screw/bracket hardware as applicable, and documentation if supplied as an OEM package. DAQ cable, SCC/SCXI accessories, terminal blocks, and software licenses should not be assumed to be included.
• Asset identity: Record the PCI-6251 model, board part number, serial number, revision, and calibration status. NI’s Letter of Volatility identifies PCI-6251 revisions including part number 190996B-03 or later for the PCI version.

Product Introduction

The PCI-6251 is installed directly into a host computer’s conventional PCI bus and provides the measurement and control interface between that computer and external instrumentation. Its architecture combines analog input, analog output, correlated digital I/O, counter/timers, and hardware triggering on one board—making physical compatibility with the host chassis and connector/cabling system a first-order replacement check.

This is a legacy M Series DAQ asset, not a generic PCI analog-input card. NI specifies 16-bit acquisition, up to 1.25 MS/s on one analog-input channel, two analog outputs, 24 digital I/O lines, and two 32-bit counter/timers. Because NI now lists the PCI-6251 as unavailable, preservation of the exact board revision and calibration record becomes particularly important when maintaining older test systems.

Core Technical Specifications

NI PCI-6251

NI’s published specifications confirm 16-bit ADC resolution, 8 differential or 16 single-ended analog inputs, 1.25 MS/s maximum single-channel acquisition, and 1.00 MS/s aggregate multichannel acquisition.

The analog-input FIFO is 4,095 samples, while the scan-list memory also holds 4,095 entries. The board provides two 32-bit counter/timers with 80 MHz, 20 MHz, and 100 kHz internal base clocks.

For calibration-controlled applications, NI specifies a 15-minute warm-up and a 2-year calibration interval. That interval should be tracked as an asset-control field rather than treated as an optional maintenance note.

Global Compliance & Industry Certifications

• CE / UKCA: NI maintains product-certification documentation for the , including EU and UK Declarations of Conformity.
• EMC: NI’s certification record also identifies EMC certification documentation for the product.
• KC: NI lists KC EMC documentation for the .
• UL/cUL: Do not represent this exact legacy board as UL or cUL Listed unless the applicable NI certification record and board marking substantiate the claim.
• ATEX/IECEx: No basis should be assumed for hazardous-area certification. The is a host-computer DAQ board, not an intrinsically safe field device.
• Marine approvals: DNV, ABS, LR, or equivalent marine approval must be established separately if required by the installation.

EMC certification is significant for a DAQ board because high-speed sampling and digital bus activity can coexist with sensitive analog measurements. Compliance testing addresses electromagnetic emissions and immunity; it does not make the entire test system compliant when the board is installed in an uncertified host assembly.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Maintain ESD protection. Keep the inside its original antistatic shielding bag whenever it is outside the host computer. The gold-plated edge connector should remain protected from fingerprints, dust, and corrosive contamination.
2. Control humidity. Store the board indoors in a dry environment with stable temperature and no condensation. Avoid warehouse locations near wash-down areas, chemical storage, or high-humidity loading docks (corrosion at the PCI contacts can create intermittent failures that are difficult to diagnose).
3. Protect calibration traceability. Record the last calibration date, calibration certificate, serial number, and board revision before long-term storage. Because the is discontinued, retaining calibration history can materially reduce qualification time when the board is returned to service.

The board contains nonvolatile EEPROM used for device information and calibration data; NI’s Letter of Volatility identifies 2 KB EEPROM and states that calibration/device information is stored there.

NI PCI-6251

Physical Installation Prerequisites

• Host interface: The requires a compatible conventional PCI slot. Do not substitute a PCIe slot merely because the connector appears mechanically similar.
• Mechanical clearance: Maintain adequate clearance around the board bracket and rear I/O connector for cable installation and service access.
• Cooling: Keep the board within the host computer’s designed airflow path. Do not obstruct the chassis fan inlet or exhaust around the PCI card.
• Grounding: The host chassis must provide the protective grounding required by the computer and installed PCI hardware. Verify chassis bonding before commissioning.
• Signal cabling: Use the appropriate NI cable, terminal block, SCC, or SCXI hardware for the application. Connector compatibility alone does not establish signal-conditioning compatibility.
• ESD handling: Ground the technician and use an ESD-safe work surface before removing or installing the board.
• Software compatibility: Confirm the installed NI-DAQmx version and operating-system support before replacing the card. The replacement should be tested with the application’s actual acquisition configuration, not only detected by the host OS.
• Calibration: Allow the recommended warm-up period before precision measurements, then verify calibration status before release to production or test service.

Buyer’s FAQ

Q: What HS tariff code should be used for the NI ?
A: Do not assign an HS code solely from the model number. The is a multifunction data-acquisition board, and the appropriate tariff classification depends on its technical function and the importing country’s national tariff schedule. Have the customs broker validate the final HS code before shipment.

Q: What should be recorded for Country of Origin?
A: Record the actual manufacturing Country of Origin (COO) shown by NI or supported by supplier documentation. Do not use the distributor’s shipping country as the product origin. If preferential duty treatment is claimed, retain the applicable origin evidence with the commercial transaction record.

Q: Should I insure a during international shipment?
A: Yes, particularly because NI lists this model as no longer available. Photograph the board, serial number, edge connector, and ESD packaging before dispatch; those records provide useful evidence if concealed transit damage or carrier mishandling is disputed.

Q: Does a replacement automatically contain the latest firmware?
A: Not necessarily. This product is discontinued, and revision, calibration data, and device configuration can vary between production units. Verify the board revision and installed software/driver environment before deployment. NI’s Letter of Volatility confirms that device information and calibration data are retained in onboard EEPROM.

Asset-control note: Do not substitute PCIe-6251, PXI-6251, PXIe-6251, or USB-6251 merely because the model suffix is identical. These are different physical platforms and bus architectures. NI specifically identifies PCIe-6351 as the suggested replacement for the discontinued , but application-level validation remains necessary before migration.
